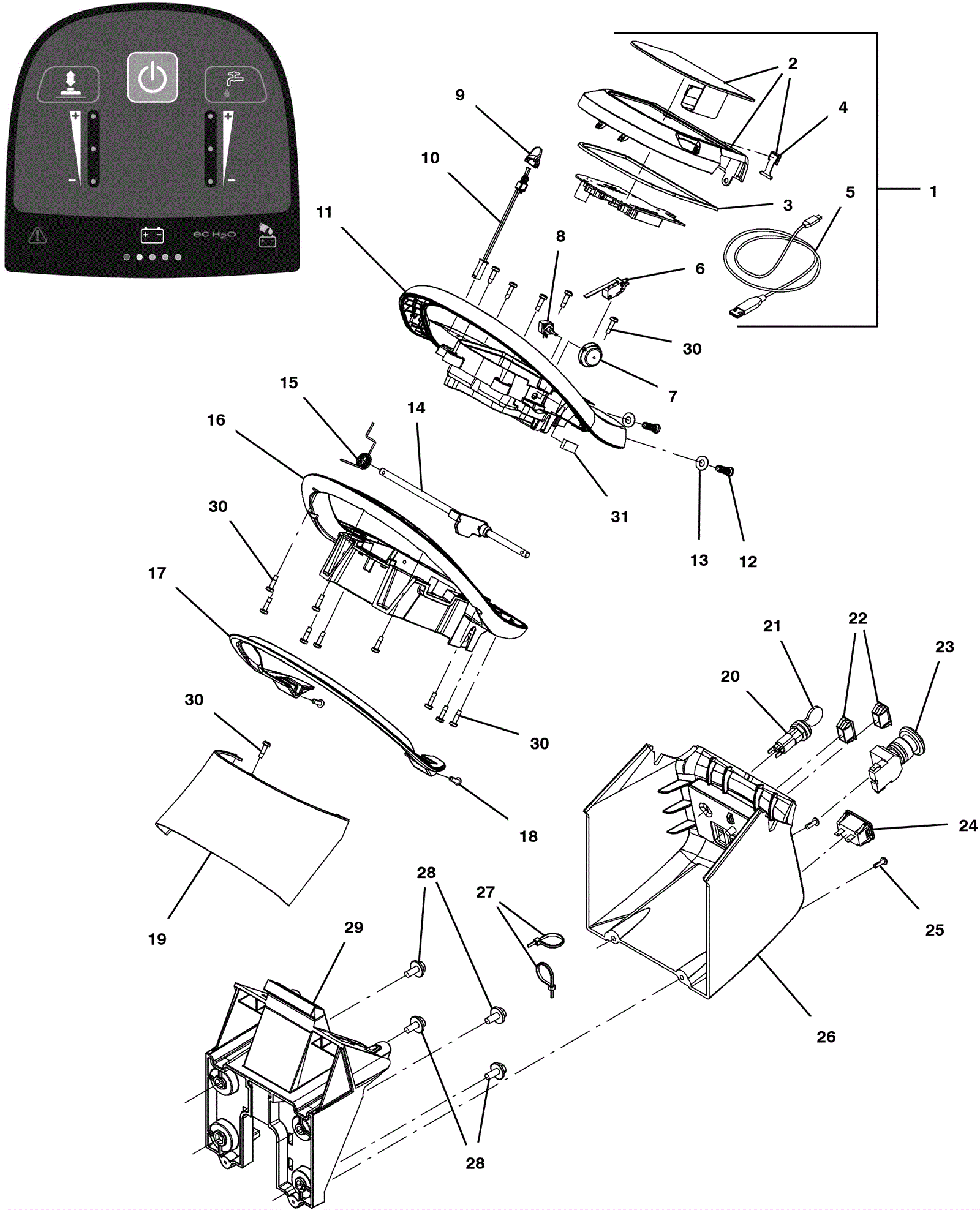

SPEED SCRUB 500 Console Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-4598 Membrane bezel kit $745.36 1 (includes 2-5) (requires Tennant True service or an authorized Tennant service provider) ships same day
2 375-4599 Membrane screen kit $239.58 1 (includes 3-4) ships same day
3 375-9374 Console gasket $39.82 1 usually ships 10-16 days
4 275-5430 USB cap $7.37 1 usually ships 10-16 days
5 375-1351 USB to USB mini cable $16.39 1 usually ships 10-16 days
6 275-5433 Switch $10.34 1 usually ships 10-16 days
7 375-4600 Speed range dial $8.80 1 ships same day
8 275-5452 Potentiometer $87.56 1 ships same day
9 275-5453 Toggle cap $7.37 1 ships same day
10 275-5454 Toggle switch assembly $81.84 1 usually ships 10-16 days
11 275-5434 Top handle housing $91.30 2 usually ships 10-16 days
12 375-3186 Screw $9.79 2 usually ships 10-16 days
13 999-0024 Washer 5/16 flat stainless steel $1.34 2 usually ships 12-18 days
14 275-5436 Handle shaft assembly $20.35 1 usually ships 10-16 days
15 275-5435 Spring $31.35 1 usually ships 1-5 days
16 275-5437 Bottom handle housing $91.85 1 usually ships 10-16 days
17 275-5438 Bail $49.61 1 usually ships 10-16 days
18 999-1403 Screw M8 x 16mm torx head $2.90 2 ships same day
19 275-5439 Handle cover $19.36 1 usually ships 10-16 days
20 175-7872 Key switch with 2 keys $53.13 1 (includes 21) ships same day
21 991-1634 Key (pkg of 2) $14.21 1 ships same day
22 175-2698 Switch plug $6.49 2 ships same day
23 275-1416 Safety shut-off switch $43.67 1 ships same day
24 275-9900 Hour meter $57.64 1 ships same day
25 999-1403 Screw M8 x 16mm torx head $2.90 2 ships same day
26 475-1895 COVER, CONSOLE, LOWER [T500E] $116.38 1 usually ships 10-16 days
27 175-7795 Cable tie $5.15 2 ships same day
28 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.49 4 usually ships 10-16 days
29 475-1358 FRAME, CONSOLE, SHORT, SIMPLIFIED [IM] $38.94 1 usually ships 10-16 days
30 175-7660 Screw #10-14 x .675 shoulder self-tapping $3.30 15 ships same day
31 475-2983 SEAL, AFMKT, RBR, CLSD, ADH, 01FT $3.43 1 usually ships 10-16 days
