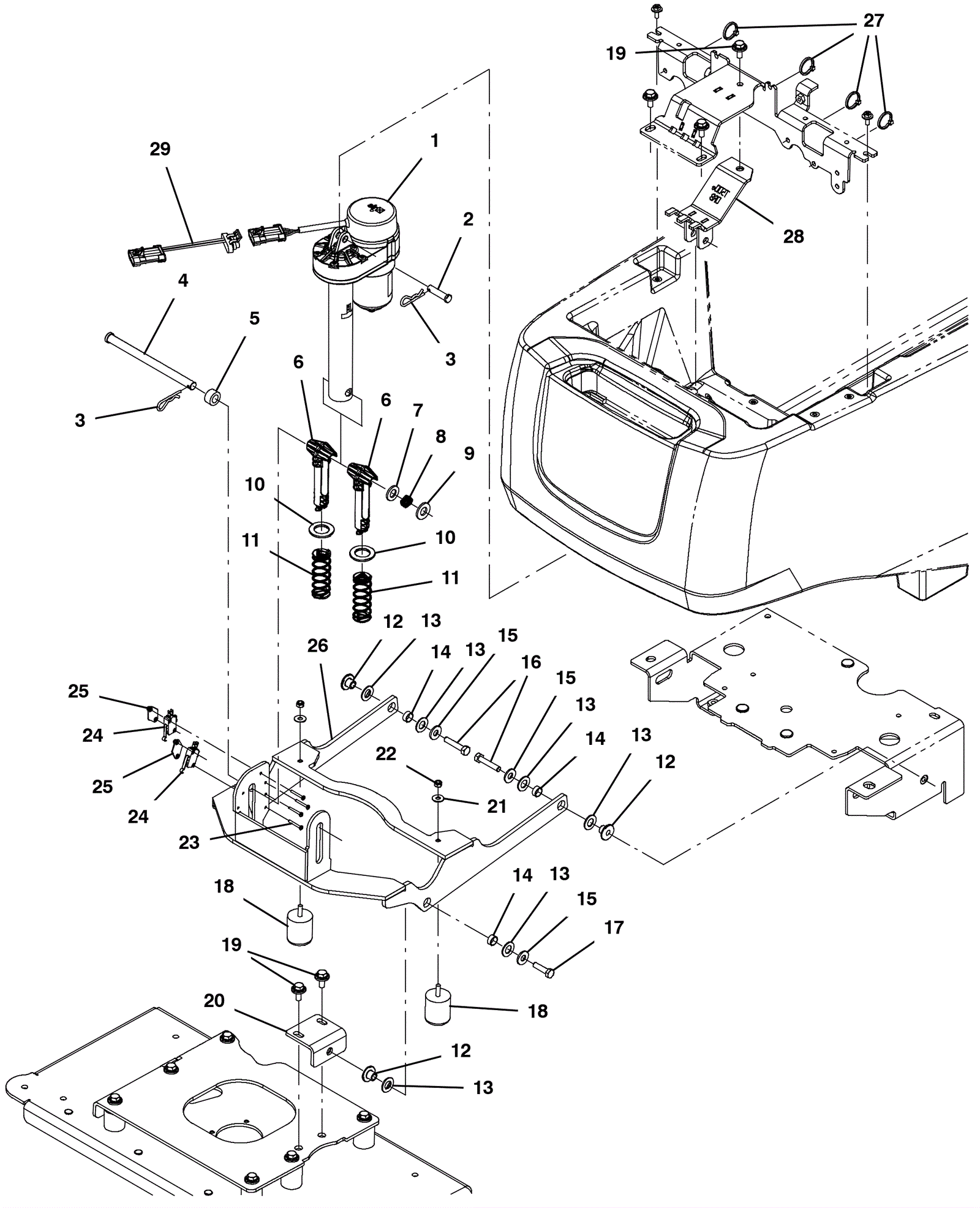

SPEED SCRUB 500 Orbital Head Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 475-2570 24V actuator $507.65 1 ships same day
2 175-2111 Clevis pin $4.75 1 ships same day
3 175-4331 Cotter hair pin $4.88 1 ships same day
4 375-3255 Clevis pin $29.81 1 ships same day
5 375-3256 Spacer $13.09 1 usually ships 10-16 days
6 375-3257 Scrubhead guide spring pin $6.16 2 usually ships 10-16 days
7 999-9214 Washer M8 flat nylon $0.99 1 usually ships 12-18 days
8 375-3258 Wave spring $19.91 1 usually ships 10-16 days
9 999-0114 Washer 1/2 SAE flat $0.99 1 ships same day
10 375-3259 Thrust washer $4.22 2 ships same day
11 375-3260 Spring $6.71 2 usually ships 10-16 days
12 275-7716 Flanged sleeve (Tennant Industrial) $5.17 3 usually ships 10-16 days
13 999-0566 Washer 1/2 flat nylon $0.99 6 ships same day
14 175-4720 Bearing $9.90 3 usually ships 10-16 days
15 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 3 ships same day
16 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel $2.48 2 ships same day
17 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel $2.62 1 ships same day
18 375-0102 Neoprene isolator $17.71 2 ships same day
19 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.09 3 ships same day
20 375-3261 Lift weldment bracket $35.53 1 usually ships 10-16 days
21 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
22 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 ships same day
23 999-1221 Screw M3-.5 x 25mm pan head stainless steel $0.99 6 ships same day
24 375-0226 Mircroswitch $10.34 2 ships same day
25 175-7839 Switch plate $33.66 2 usually ships 10-16 days
26 375-4587 Lift arm weldment $304.92 1 usually ships 10-16 days
27 175-2202 Nylon wire tie $4.09 5 ships same day
28 475-1745 BRACKET WLDT, MOUNT, ACTUATOR[T500e] $78.10 1 usually ships 10-16 days
29 375-9004 Delphi adaptor harness $64.57 1 (between SN 10959723 and 20000000) usually ships 10-16 days
