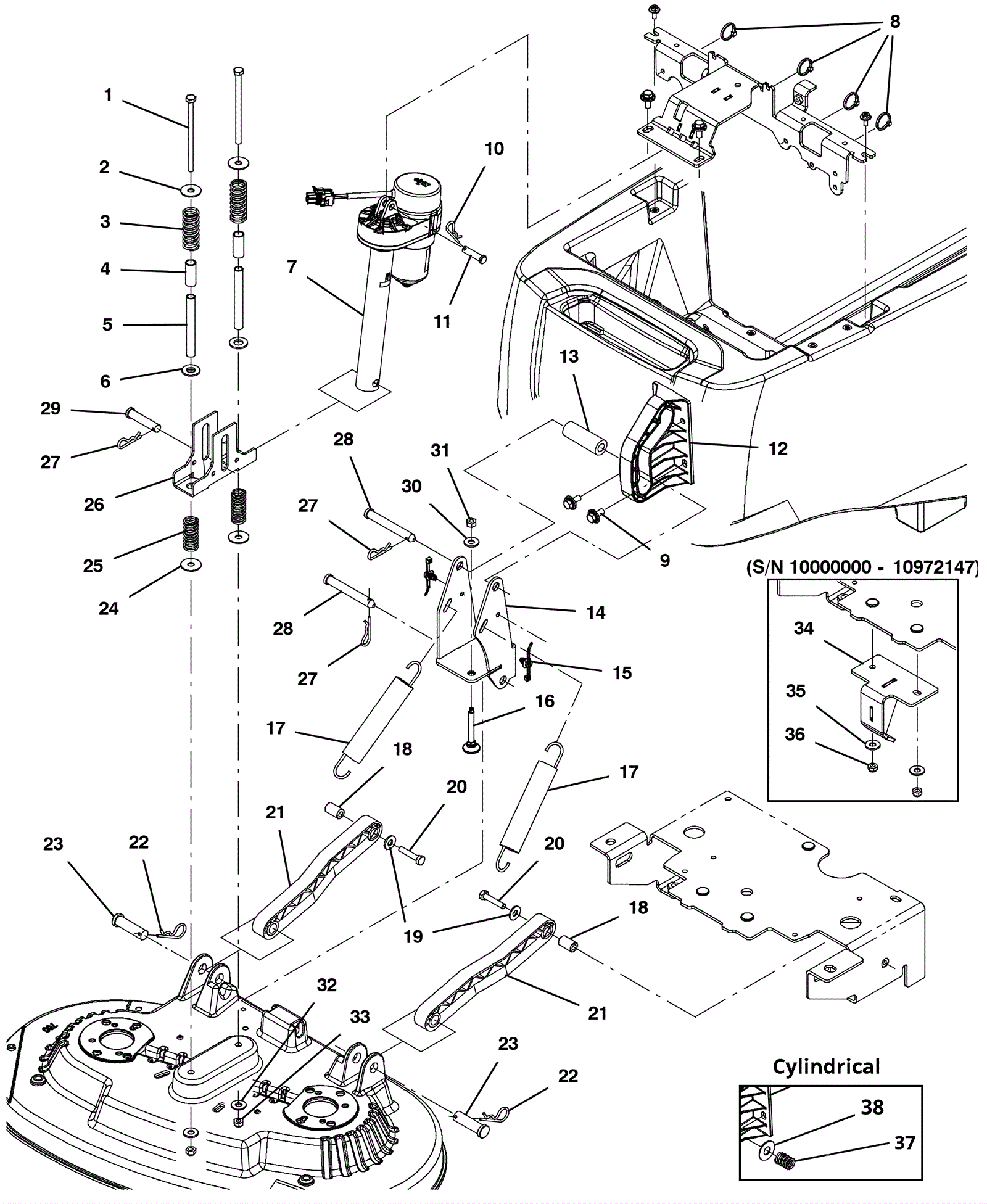

SPEED SCRUB 500 Disk and Cylindrical Head Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-8726 SCREW, HEX, M8 X 1.25 X 130, SS (Tennant Industrial) $11.34 2 usually ships 1-5 days
2 175-2298 Washer .38 x .06 stainless steel $4.88 2 usually ships 10-16 days
3 175-2199 Compression spring $5.50 2 usually ships 10-16 days
4 375-3244 Pm sleeve $3.04 2 usually ships 10-16 days
5 375-3245 Sleeve $34.32 2 usually ships 10-16 days
6 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
7 475-2570 24V actuator $507.65 1 ships same day
8 175-2202 Nylon wire tie $4.09 5 ships same day
9 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.09 4 ships same day
10 175-4331 Cotter hair pin $4.88 1 ships same day
11 175-2111 Clevis pin $4.75 1 ships same day
12 375-3248 Guide bracket $22.77 1 usually ships 10-16 days
13a 375-3249 Plastic tube $6.27 1 (disk) usually ships 10-16 days
13b 175-7911 Roller $9.90 1 (cylindrical) usually ships 10-16 days
14 375-3250 Scrubhead pivot weldment $87.12 1 usually ships 10-16 days
15 275-5197 Fir tree clip $2.11 2 usually ships 10-16 days
16 375-3251 Leveler screw $32.56 1 usually ships 10-16 days
17 175-2234 Extension spring $13.64 2 usually ships 10-16 days
18 175-4343 1 inch tube $6.49 2 ships same day
19 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
20 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel $2.48 2 ships same day
21 175-2102 Scrub head lifting arm $49.94 2 ships same day
22 175-2106 Cotter hair pin $4.09 2 ships same day
23 175-2105 Clevis pin $6.82 2 ships same day
24 175-2298 Washer .38 x .06 stainless steel $4.88 2 usually ships 10-16 days
25 175-2443 2 1/2 inch compression spring $5.50 2 usually ships 10-16 days
26 375-3253 Suspension head spring bracket $44.88 1 usually ships 10-16 days
27 175-4331 Cotter hair pin $4.88 3 ships same day
28 175-4960 Clevis pin $10.23 2 usually ships 10-16 days
29 175-9603 Clevis pin $4.88 1 usually ships 10-16 days
30 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 1 ships same day
31 999-1424 Nut M8-1.25 hex stainless steel $1.65 1 ships same day
32 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
33 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 (disk) ships same day
34 375-3254 Frame weldment stop $59.95 1 (disk) (between SN 10000000 and 10972147) usually ships 10-16 days
35 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 (disk) (between SN 10000000 and 10972147) ships same day
36 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 (between SN 10000000 and 10972147) ships same day
37 175-4371 Compression spring $4.88 2 (cylindrical) usually ships 10-16 days
38 999-0559 Washer 1/2 x 1/4 flat stainless steel $0.99 4 (cylindrical) ships same day
