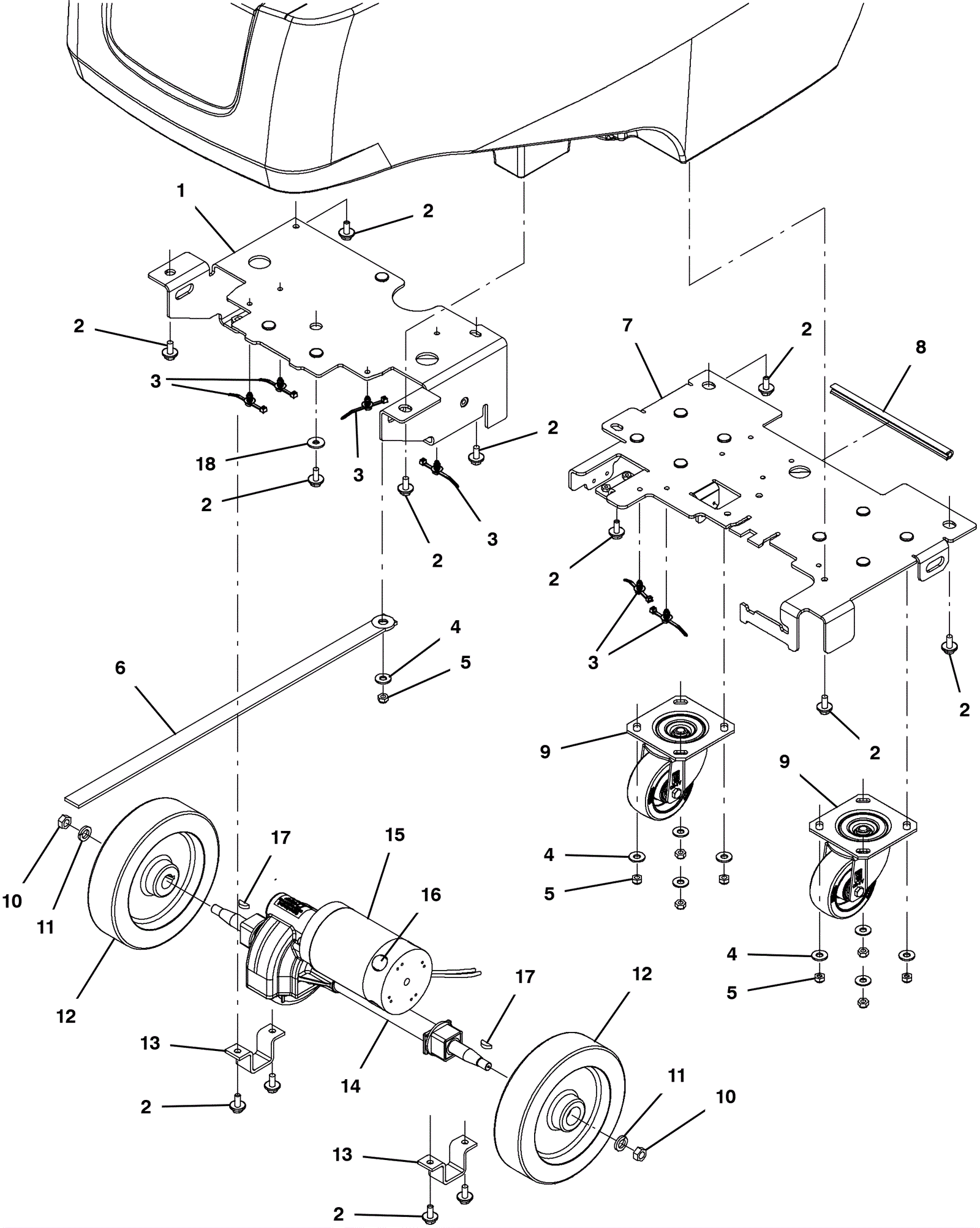

SPEED SCRUB 500 Frame and Drive Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-3239 Front frame weldment $191.40 1 usually ships 10-16 days
2 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.09 13 ships same day
3 275-5197 Fir tree clip $2.11 6 usually ships 10-16 days
4 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 9 ships same day
5 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 9 ships same day
6 275-9261 Static strip with grommet $26.29 1 usually ships 10-16 days
7 375-3240 Rear frame weldment $301.51 1 usually ships 10-16 days
8 275-8203 Molding $45.21 1 usually ships 1-5 days
9 375-0225 Swivel caster wheel $76.12 2 ships same day
10 999-0519 Nut M12-1.75 nylon insert lock stainless steel $3.85 2 ships same day
11 175-1825 Washer $4.75 2 ships same day
12a 275-5301 Solid wheel kit $361.24 1 (includes 12b) (OEM) ships same day
12b 275-1449 Wheel with taper $168.52 2 (OEM) ships same day
12c 991-7142 Wheel with taper (Obsolete) $101.57 2 (NON-OEM) usually ships 14-21 days
12d 991-7148 Solid wheel kit $259.74 1 (includes 2 of 12c) (NON-OEM) usually ships 14-21 days
13 175-4349 Transaxle bracket $37.51 2 usually ships 10-16 days
14a 375-3241 24V electronic transaxle $1,763.30 1 (includes 14b-17) ships same day
14b 175-3655 Transaxle coupling $10.01 1 usually ships 10-16 days
14c 175-3660 Transaxle sleeve $10.34 1 usually ships 10-16 days
15 275-1447 24V transaxle motor $637.78 1 (includes 16) ships same day
16 175-7898 Carbon brush (pkg of 4) $66.77 1 ships same day
17 275-1448 Square keyway $4.09 2 ships same day
18 375-4024 Washer (Tennant Industrial) $6.17 1 usually ships 10-16 days
