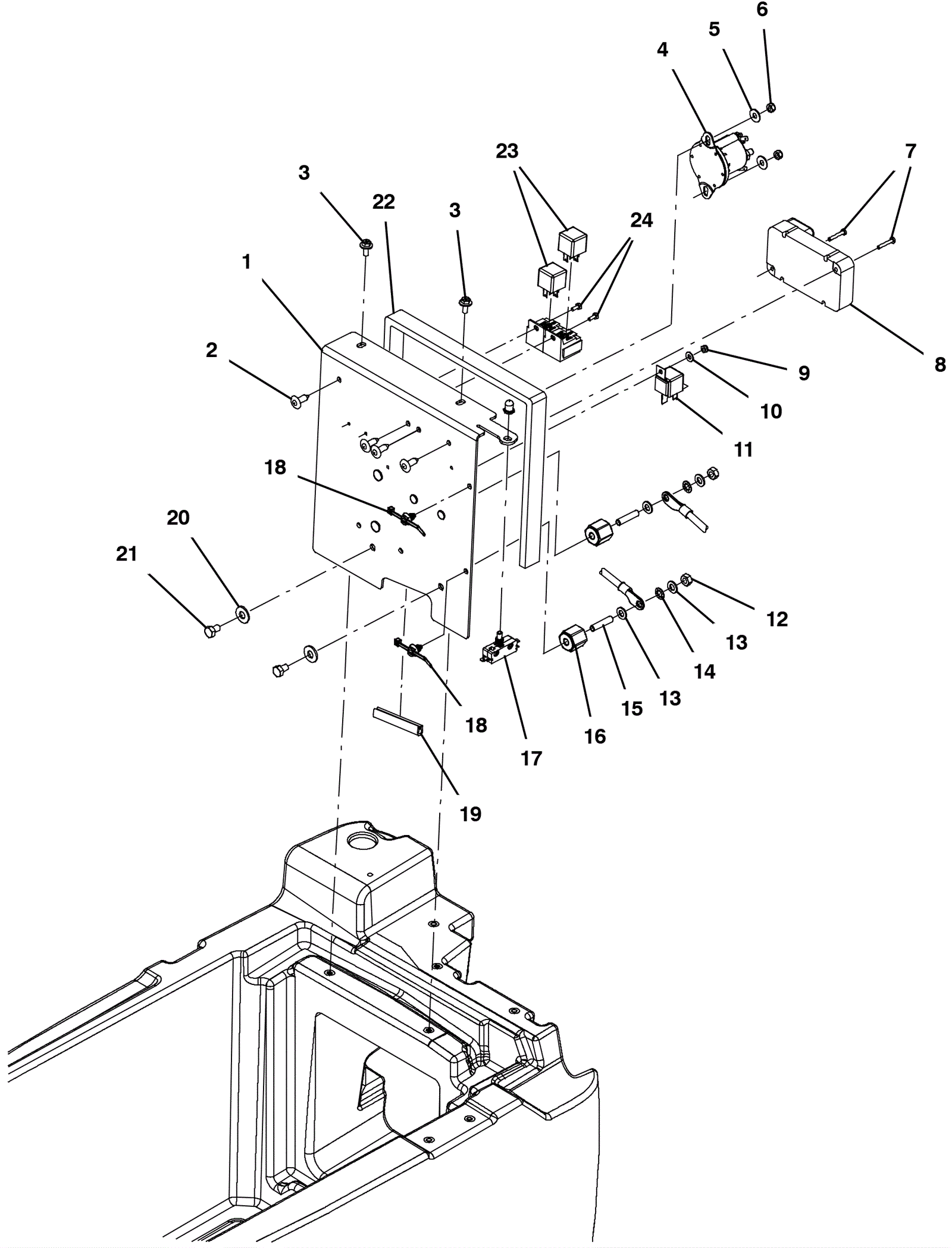

SPEED SCRUB 500 Standard Electrical Assembly

#PartDescriptionPriceReqNotesAvailability
1 475-1840 BRACKET WLDT, MTG, ELE [T500E] $101.42 1 usually ships 10-16 days
2 991-5122 1/4 nylon tree push-in rivet $1.67 4 ships same day
3 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 2 ships same day
4 375-1275 150amp relay $50.27 1 usually ships 10-16 days
5 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
6 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 2 ships same day
7 999-1673 Screw M4-.7 x 25mm pan head phillips stainless steel $0.99 2 ships same day
8 375-3234 Drive module kit $424.38 1 (requires Tennant True service or an authorized Tennant service provider) ships same day
9 999-0740 Nut M5-.8 hex stainless steel $0.99 1 ships same day
10 999-0998 Washer #10 flat stainless steel $0.99 1 ships same day
11 375-3233 24V relay $21.67 1 ships same day
12 275-5476 Nut M8 x 1.25 hex brass (Tennant Industrial) $5.67 1 usually ships 10-16 days
13 275-5475 Washer M8-.4 x 1.6mm brass $3.30 2 usually ships 1-5 days
14 999-1053 Washer 5/16 internal star lock stainless steel $0.99 4 ships same day
15 175-4271 Screw M8 x 35mm set $5.28 2 usually ships 10-16 days
16 375-0176 Insulated stand-off $14.19 2 usually ships 1-5 days
17 175-0084 Actuator push switch $18.92 1 ships same day
18 275-5197 Fir tree clip $2.38 2 usually ships 10-16 days
19 275-1269 3 foot trim molding $72.60 1 usually ships 1-5 days
20 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
21 999-1415 Screw M8-1.25 x 12mm hex head stainless steel $1.52 2 ships same day
22 375-3237 Circuit board cover gasket $57.31 1 usually ships 10-16 days
23 175-8635 40amp relay $31.35 2 ships same day
24 999-0777 Screw M4-.7 x 10mm hex head plain finish $0.99 2 ships same day
