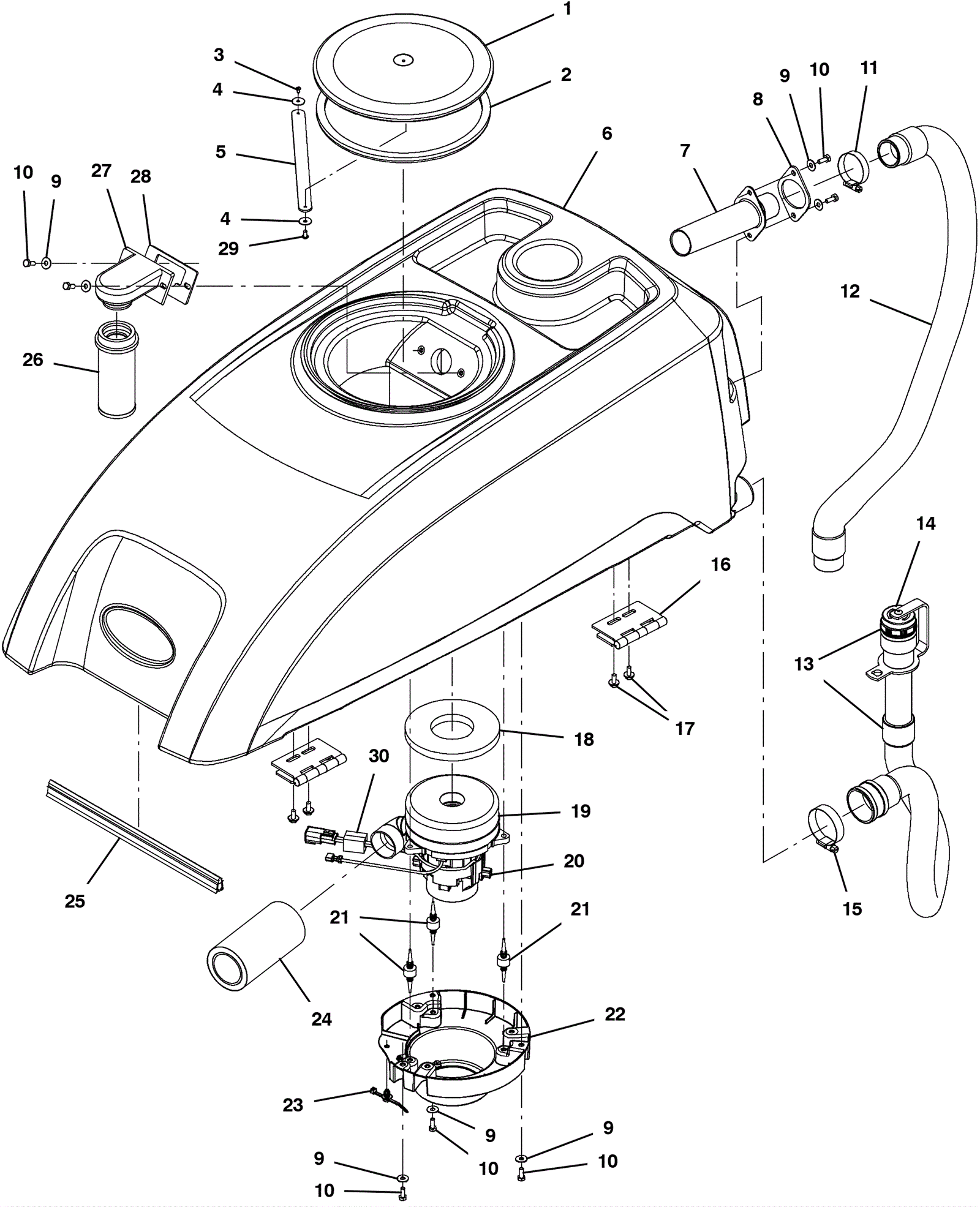

SPEED SCRUB 500 Recovery Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-8784 Recovery tank lid assembly (lid, gasket, & label) $224.07 1 (includes item 2) ships same day
2 175-8785 Recovery lid gasket $12.10 1 usually ships 10-16 days
3 999-0434 Screw 6 x 3/8 pan head phillips $0.99 1 ships same day
4 175-5797 Washer 1/6 flat zinc $4.09 2 usually ships 10-16 days
5 175-8786 Strap $5.50 1 ships same day
6 475-2811 TANK KIT, RECVY, CI [SS500] $1,346.40 1 usually ships 10-16 days
7 275-1372 Hose tube adapter $9.79 1 ships same day
8 275-1371 Hose adapter gasket $4.22 1 ships same day
9 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 7 ships same day
10 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 7 ships same day
11 997-2000 Hose clamp $2.37 1 ships same day
12a 375-0220 22 inch hose assembly w/cuffs 1 1/2 x 22 in $35.30 1 (pinch cuff model) ships same day
12b 375-3217 33 inch hose assembly with cuffs $83.49 1 (between SN 10000000 and 10972171) (standard model) ships same day
12c 991-3182 Vacuum hose with cuffs 1 1/2 $24.60 1 (NON-OEM) ships same day
13a 375-1621 Drain hose assembly 1.5 x 11 (black) $87.34 1 (includes 14a-14b) (pinch cuff model) (between SN 10972172 and 20000000) ships same day
13b 991-1931 Drain hose assembly $44.06 1 (NON-OEM) ships same day
14a 475-0727 CAP, DRAIN ASSY [BLACK, T500E] $10.12 1 (includes 14b) (pinch cuff model) (between SN 10972172 and 20000000) usually ships 10-16 days
14b 175-5804 O-ring $11.77 1 ships same day
14c 375-0214 Drain cap assembly (black) $8.36 1 (between SN 10000000 and 10972171) (standard model) ships same day
15 997-2003 Hose clamp $2.66 1 ships same day
16 375-3209 Hinge $15.40 1 usually ships 10-16 days
17 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 4 ships same day
18 175-6085 Gasket $10.12 1 (vacuum motor replacement requires additional gasket 164-0881) ships same day
19 375-1377 24V 2 stage vacuum motor $395.23 1 (includes 20) (for machines SN 10835433-10842917, vacuum motor replacement requires 175-6085 and 164-0881) usually ships 10-16 days
20 175-7791 Carbon brush (pkg of 2) $37.18 1 ships same day
21 275-9897 Isolator $4.88 3 ships same day
22 375-0114 Vacuum motor mount $18.15 1 ships same day
23 275-5197 Fir tree clip $2.11 1 usually ships 10-16 days
24 175-7794 Vacuum exhaust hose $30.25 1 ships same day
25 375-3230 Dual seal (Tennant Industrial) $24.67 1 ships same day
26 175-1804 Shut-off float $77.22 1 ships same day
27 175-4232 Float cage mount $20.79 1 ships same day
28 175-4231 Float mount gasket $5.50 1 ships same day
29 999-1114 Screw 10-16 x 3/8 pan head phillips hi-lo self tapping zinc $4.88 1 ships same day
30 375-4508 Inductor $5.50 1 ships same day
