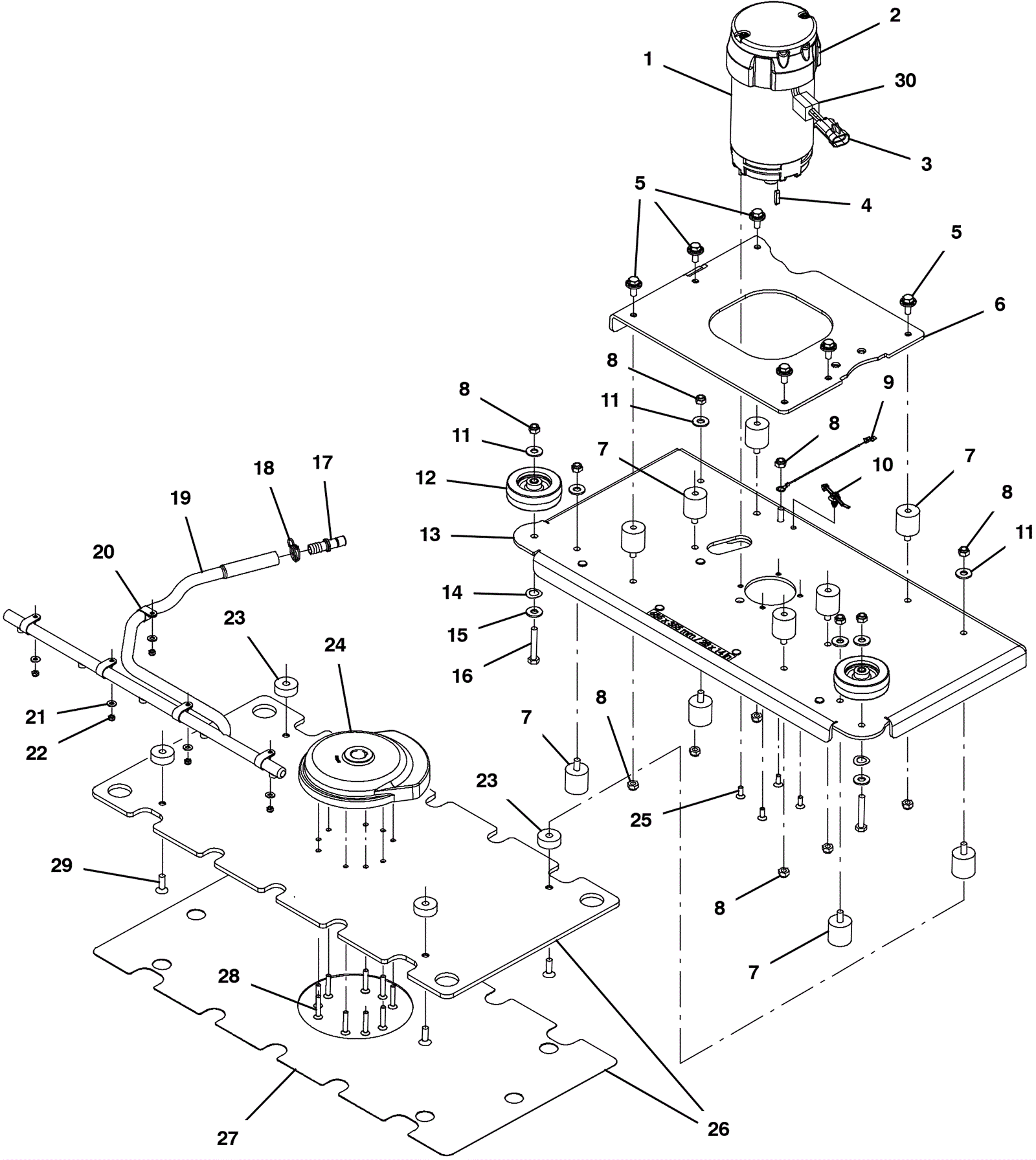

SPEED SCRUB 500 28 inch Orbital Scrub Head Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-3198 24V 2200RPM brush motor $880.95 1 (includes 2-3) ships same day
2 275-9904 Carbon brush (pkg of 4) $87.34 1 usually ships 10-16 days
3 275-1459 Brush motor connector harness $282.59 1 ships same day
4 375-3199 Square key $5.50 1 ships same day
5 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.09 6 ships same day
6 375-3200 Weldment bracket $91.19 1 usually ships 10-16 days
7 375-0102 Neoprene isolator $17.71 13 ships same day
8 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 1 ships same day
9 375-0108 Electrical harness $6.49 1 usually ships 10-16 days
10 275-5197 Fir tree clip $2.11 1 usually ships 10-16 days
11 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 6 ships same day
12 175-0117 Guide wheel with bushing $9.90 2 ships same day
13 375-4524 Brush housing weldment $368.28 1 usually ships 10-16 days
14 999-6674 Washer 5/16 x 1 1/2 wave stainless steel $6.41 2 ships same day
15 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
16 999-1297 Screw M8 x 50mm hex head stainless steel $2.86 2 ships same day
17 375-0055 Straight plastic fitting $13.97 1 usually ships 10-16 days
18 375-0291 Hose clamp $4.88 1 ships same day
19 375-4525 Spray bar manifold $103.29 1 usually ships 10-16 days
20 175-0988 P clamp $3.83 5 usually ships 10-16 days
21 999-0998 Washer #10 flat stainless steel $0.99 4 ships same day
22 999-0740 Nut M5-.8 hex stainless steel $0.99 4 ships same day
23 375-3203 Spacer $13.97 4 usually ships 10-16 days
24 375-3204 Eccentric drive kit $457.60 1 usually ships 10-16 days
25 999-0773 Screw M6-1 x 16mm flat socket head stainless steel $0.99 4 ships same day
26 375-3205 Pad driver kit for Orbital heads $330.33 1 (includes 27) (includes driver plate, driver face, and red buffing pad) ships same day
27 475-2050 FACE, PAD DRIVER $132.55 1 ships same day
28 375-0288 Screw M6-1 x 35mm flat socket $1.85 6 usually ships 10-16 days
29 999-1622 Screw M8-1.25 x 25mm flat head phillips stainless steel $1.69 4 ships same day
30 375-4508 Inductor $5.50 1 ships same day
