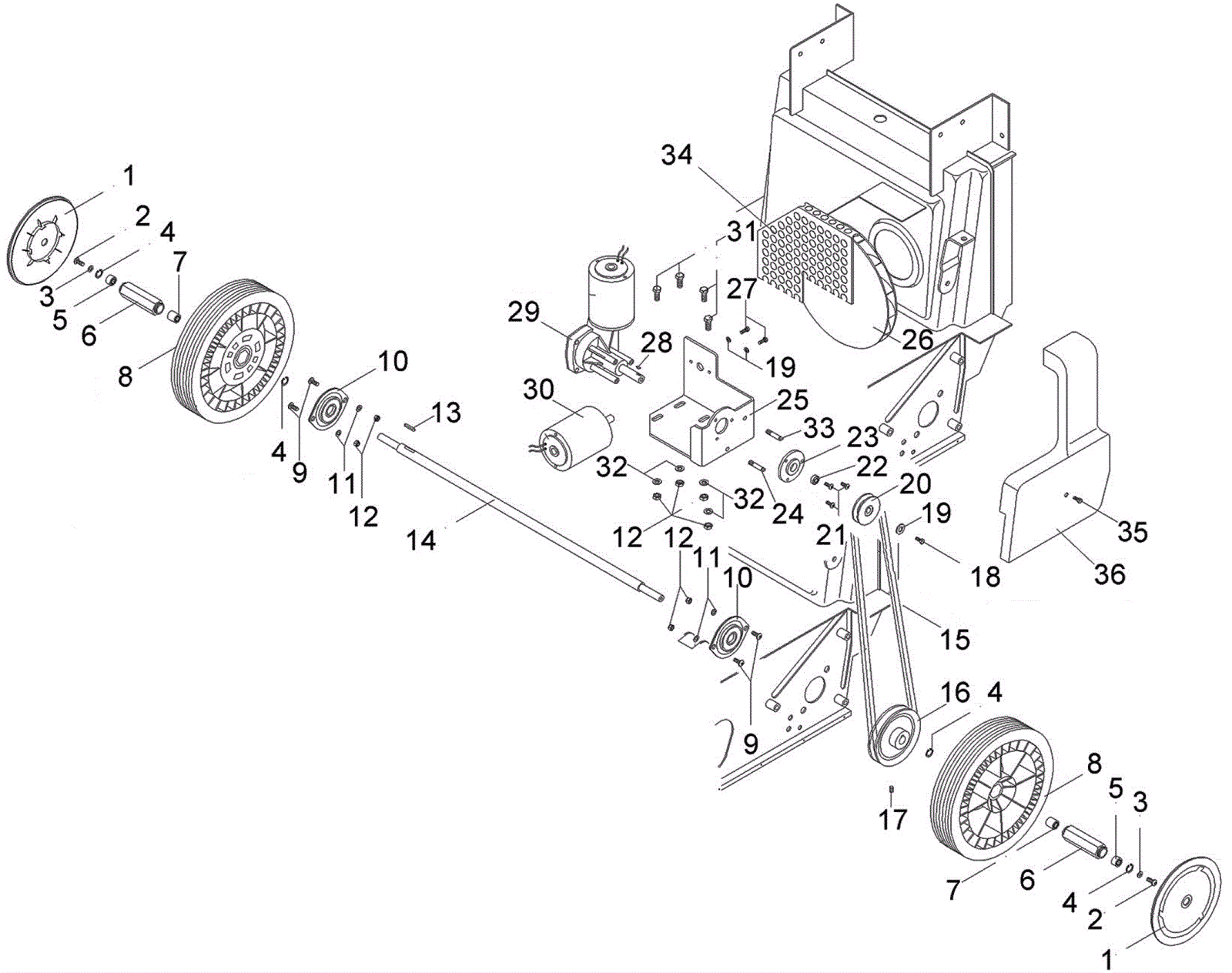

S7 Drive Wheel and Vacuum Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-9187 Wheel cover $9.48 2 usually ships 5-15 days
2 203-2109 Screw 6 x 10 $3.20 2 ships same day
3 203-1171 Washer 6 x 24 $2.29 2 ships same day
4a 375-9189 Right hand wheel assembly with bearing $374.46 1 (includes 4c-8) usually ships 5-15 days
4b 375-9190 Left hand wheel assembly with bearing $389.77 1 (includes 4c-8) usually ships 5-15 days
4c 375-9191 28mm outer snap retaining ring $4.75 4 usually ships 5-15 days
5 375-9192 Wheel needle bearing $25.74 2 usually ships 5-16 days
6 375-9193 Hex bushing $12.32 2 usually ships 5-16 days
7 375-9194 Wheel needle bearing $10.09 2 usually ships 5-16 days
8 375-9195 Wheel (black) $30.69 2 usually ships 5-16 days
9 375-9196 Screw M6x16 $27.61 4 usually ships 5-16 days
10 375-9197 Flange bearing $27.14 2 usually ships 5-16 days
11 375-9198 Washer D. 6 $27.94 4 usually ships 5-16 days
12 375-9199 Nut M6 $4.77 8 usually ships 5-15 days
13 375-9200 Key $28.16 1 usually ships 5-16 days
14 203-3028 Drive shaft $175.98 1 usually ships 5-15 days
15 375-9202 Drive belt $48.35 1 usually ships 5-15 days
16 375-9203 Drive pulley $17.71 1 usually ships 5-16 days
17 203-2109 Screw 6 x 10 $3.20 1 ships same day
18 375-9205 Screw M4x.70x12 hex head $4.77 1 usually ships 5-15 days
19 375-9206 Washer 5x20 flat $27.39 3 usually ships 5-16 days
20 375-9207 Drive pulley $25.85 1 usually ships 5-16 days
21 375-9208 Screw 6x25 $4.77 3 usually ships 5-15 days
22a 375-9209 Support $80.43 1 (includes 22b-23) usually ships 5-15 days
22b 375-9210 Ball bearing $38.25 1 usually ships 5-16 days
23 203-3033 Bearing support $76.59 1 usually ships 1-5 days
24 375-9212 Belt support pin $1.32 1 usually ships 5-16 days
25 375-9213 Drive motor support $84.12 1 usually ships 5-15 days
26 375-9214 200MMD fan impeller $109.09 1 usually ships 5-16 days
27 203-3206 Screw M5 x 16 $2.29 2 ships same day
28 203-3279 Key $16.80 1 ships same day
29a 175-3894 Drive motor $903.98 1 (includes 29b) usually ships 5-16 days
29b 375-9219 Carbon brush (TENNANT INDUSTRIAL) $29.68 1 usually ships 5-16 days
30a 375-9218 12VDC 77MMD fan electric motor $337.68 1 (includes 30b) usually ships 5-15 days
30b 375-9219 Carbon brush (TENNANT INDUSTRIAL) $29.68 1 usually ships 5-16 days
31 375-9220 Screw M6x1x16 hex head $4.77 4 usually ships 5-15 days
32 375-9221 Washer 6x18 flat (TENNANT INDUSTRIAL) $27.39 4 usually ships 5-16 days
33 375-9223 Pulley guard mounting pin (TENNANT INDUSTRIAL) $7.46 1 usually ships 5-15 days
34 175-3898 Fan guard $145.09 1 usually ships 1-5 days
35 375-9224 Screw 6x10 (TENNANT INDUSTRIAL) $29.37 1 usually ships 5-16 days
36 375-9225 Air conveyor duct $60.10 1 usually ships 5-15 days
