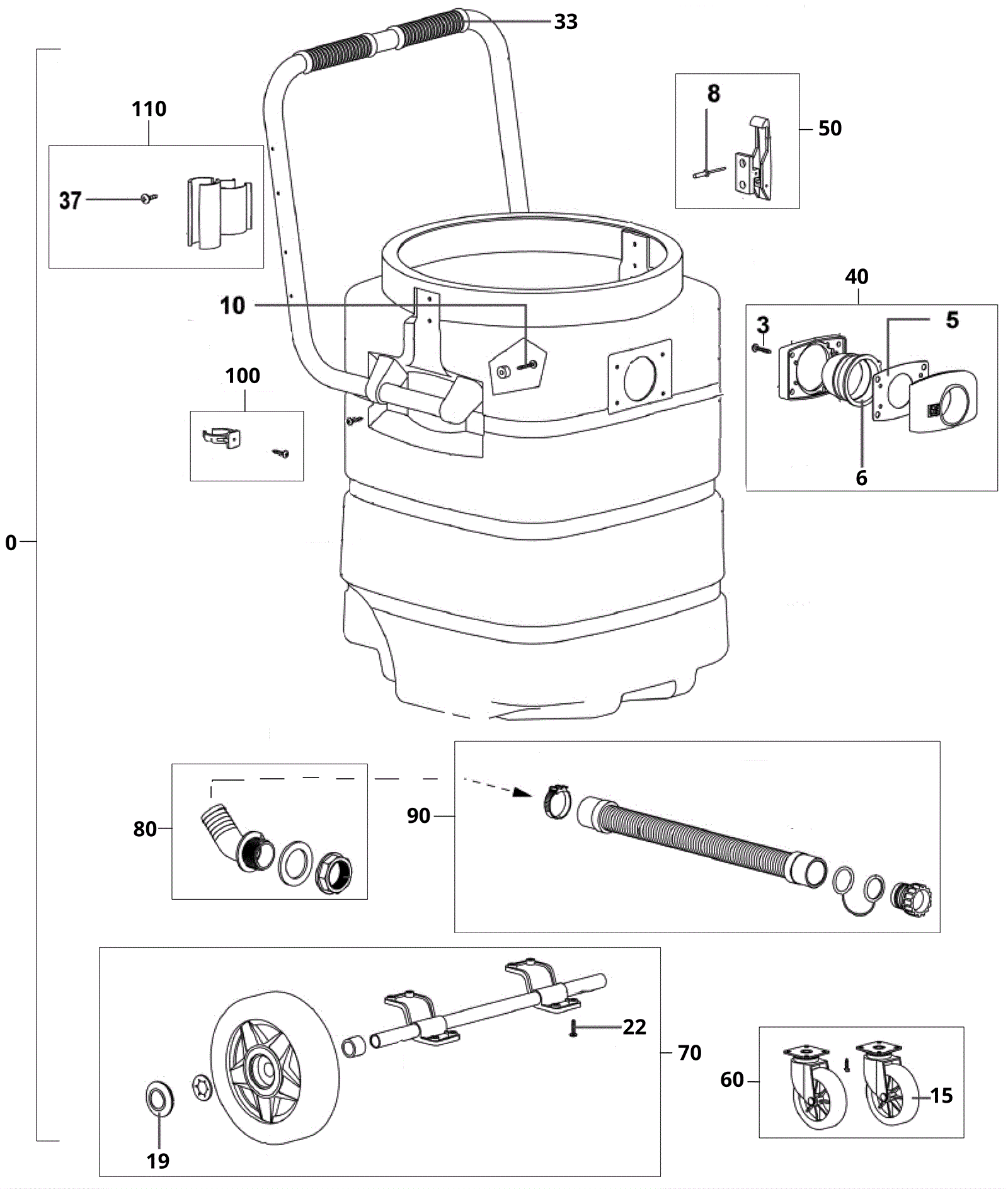

V-WD-24 Tank Assembly

#PartDescriptionPriceReqNotesAvailability
0 375-9112 Vacuum tank kit $777.70 1 (includes all items shown) usually ships 10-16 days
3 475-0108 SCREW $3.83 4 usually ships 10-16 days
5 475-0111 GASKET (OBSOLETE) $5.50 1 usually ships 10-16 days
6 475-0510 INLET, TANK $37.84 1 usually ships 10-16 days
8 475-0011 RIVET, BLIND $0.99 4 usually ships 10-16 days
10 475-0108 SCREW $3.83 8 usually ships 10-16 days
15 475-0919 CASTER, SWIVE (OBSOLETE) $24.42 2 usually ships 10-16 days
19 475-0054 PLUG $1.19 2 usually ships 10-16 days
22 475-0029 SCREW $1.72 8 usually ships 10-16 days
33 475-0056 GRIP $2.24 2 usually ships 10-16 days
37 475-0113 SCREW $3.43 4 usually ships 10-16 days
40 375-9113 Hose inlet fitting kit $25.96 1 (includes 3 and 5-6) usually ships 10-16 days
50 375-9114 Vacuum latch kit $40.81 1 (includes 8) usually ships 10-16 days
60 375-9115 Vacuum caster kit $38.28 1 (includes 15-16) usually ships 10-16 days
70 375-9116 Axle kit $90.31 1 (includes 19 and 22) usually ships 10-16 days
80 375-9117 Drain fitting kit $36.41 1 usually ships 10-16 days
90 375-6017 Drain hose kit $31.35 1 usually ships 10-16 days
100 375-6014 Drain hose kit $20.24 1 usually ships 10-16 days
110 375-9118 Handle clip kit $30.58 1 (includes 37) usually ships 10-16 days
