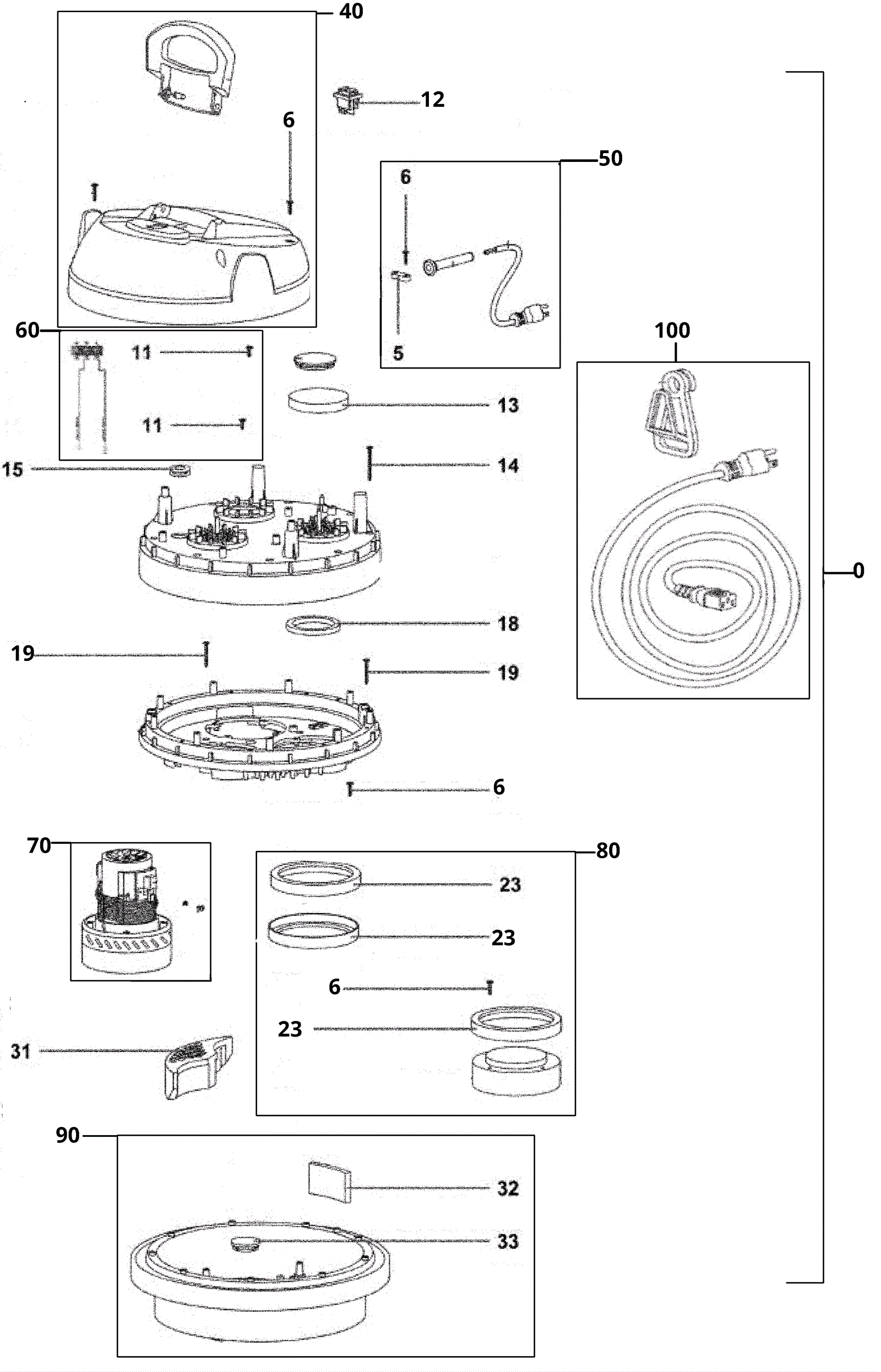

V-WD-24 Head Assembly

#PartDescriptionPriceReqNotesAvailability
0 375-9107 Power head housing assembly $682.44 1 (includes all items shown) usually ships 10-16 days
5 475-0007 BLOCK, STRAINRELIEF $0.99 1 usually ships 10-16 days
6 475-0029 SCREW $1.85 15 usually ships 10-16 days
11 475-0113 SCREW $3.70 1 usually ships 10-16 days
12 475-0603 SWITCH $19.69 1 usually ships 10-16 days
13 475-0334 FILTER (OBSOLETE) $17.38 1 usually ships 10-16 days
14 475-0012 SCREW $1.58 9 usually ships 10-16 days
15 475-0052 GROMMET $2.51 1 usually ships 10-16 days
18 475-0030 RING (OBSOLETE) $5.15 1 usually ships 10-16 days
19 475-0032 SCREW $0.99 12 usually ships 10-16 days
23 475-0335 RING, BOTTOM, MOTOR (OBSOLETE) $24.20 4 usually ships 10-16 days
31 475-0604 DAMPER, SOUND $25.74 3 usually ships 10-16 days
32 475-0053 DAMPER, SOUND (OBSOLETE) $5.50 3 usually ships 10-16 days
33 475-0439 PLUG, COVER $4.36 2 usually ships 10-16 days
40 375-9108 Vacuum cover assembly (gray) $92.29 1 (includes 6) usually ships 10-16 days
50 375-6002 Power cord kit $51.81 1 (includes 5-6) usually ships 10-16 days
60 375-9109 Vacuum terminal kit with wires $45.98 1 (includes 11) usually ships 10-16 days
70 375-1691 Vacuum motor kit $197.34 1 usually ships 10-16 days
80 375-6005 Motor gasket kit $81.07 1 (includes 6 and 23) usually ships 10-16 days
90 375-9110 Base housing kit (gray) $176.88 1 (includes 32 and 33) usually ships 10-16 days
100 375-9111 Power cord kit $133.87 1 usually ships 10-16 days
