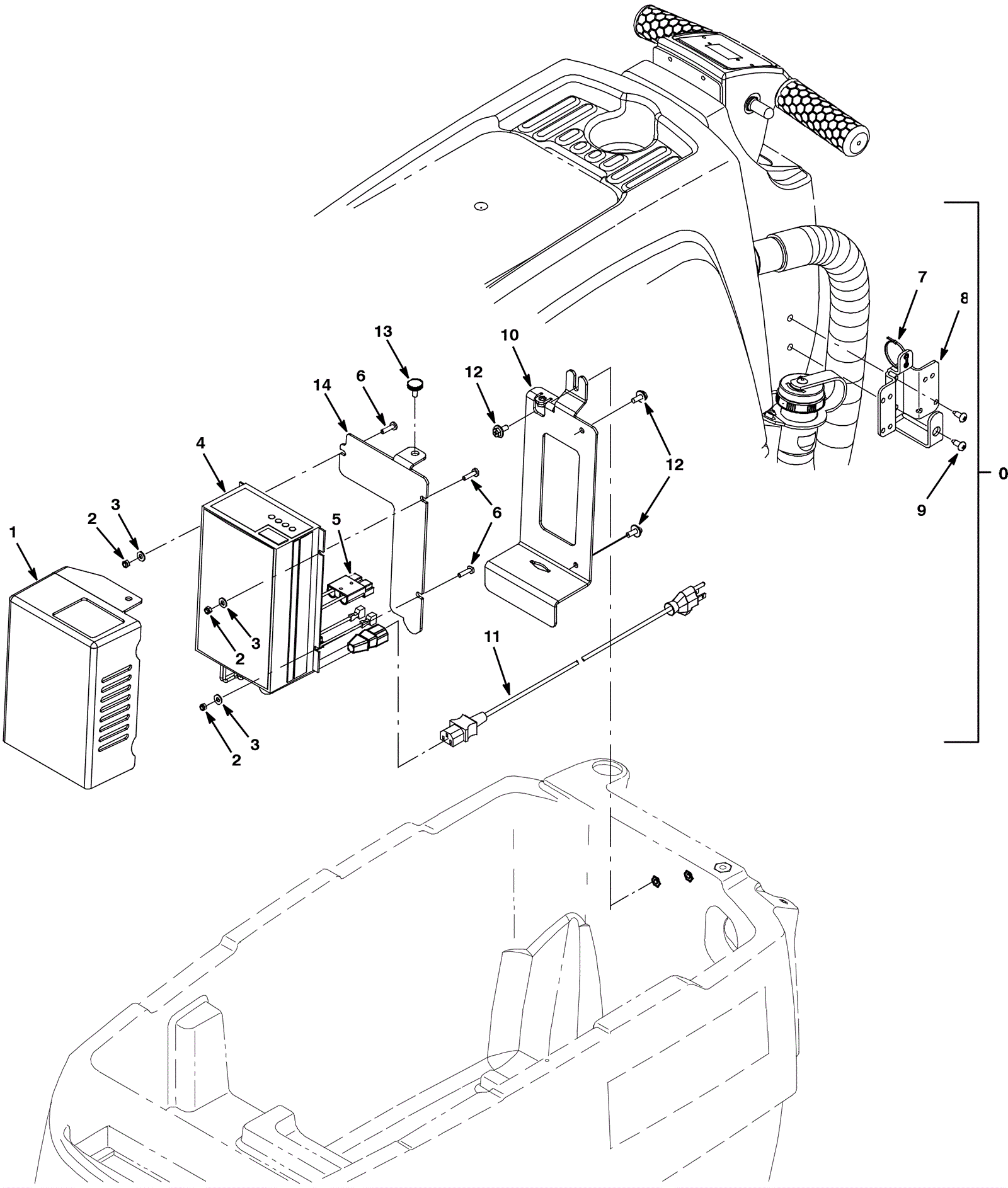

SS3 Onboard Battery Charger Assembly

#PartDescriptionPriceReqNotesAvailability
0a 275-6720 Onboard battery charger kit $1,249.20 1 (includes 1a, 2-9) (ec-H2O) usually ships 6-16 days
0b 275-5183 Onboard battery charger kit $839.30 1 (includes 1b, 2-5, 7-9) (standard and FaST) usually ships 6-16 days
1a 275-5955 Charger cover $184.90 1 (ec-H2O) usually ships 1-5 days
1b 275-5952 Charger cover $51.30 1 (standard and FaST) usually ships 1-5 days
2 999-0740 Nut M5-.8 hex stainless steel $0.99 3 ships same day
3 999-0998 Washer #10 flat stainless steel $0.99 3 ships same day
4 275-6701 24V 11amp on board battery charger $691.60 1 (includes 5) usually ships 6-16 days
5 991-2103 50amp charger plug SB50 with pins (red) $6.79 1 ships same day
6 175-2895 Screw M5-0.8 x 20mm pan head $3.00 3 usually ships 6-16 days
7 175-7795 Cable tie $3.85 6 ships same day
8 475-1524 RETAINER, CORD, CHRGR [SS3] $45.40 1 usually ships 6-16 days
9 175-5815 Screw 10 x 1/2 pan head phillips black $2.80 2 ships same day
10 275-5932 Charger mounting bracket $68.20 1 (ec-H2O) usually ships 1-5 days
11 275-1585 16/3 charger power cord 15 foot (black) $80.83 1 ships same day
12 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 3 (ec-H2O) ships same day
13 275-5957 Round knob M6 x 20mm plastic $3.70 1 (ec-H2O) usually ships 6-16 days
14 275-5956 Charger mounting bracket $65.90 1 (ec-H2O) usually ships 1-5 days
N/S 275-5953 Charger harness $81.40 1 (included with 0a and 0b) ships same day
