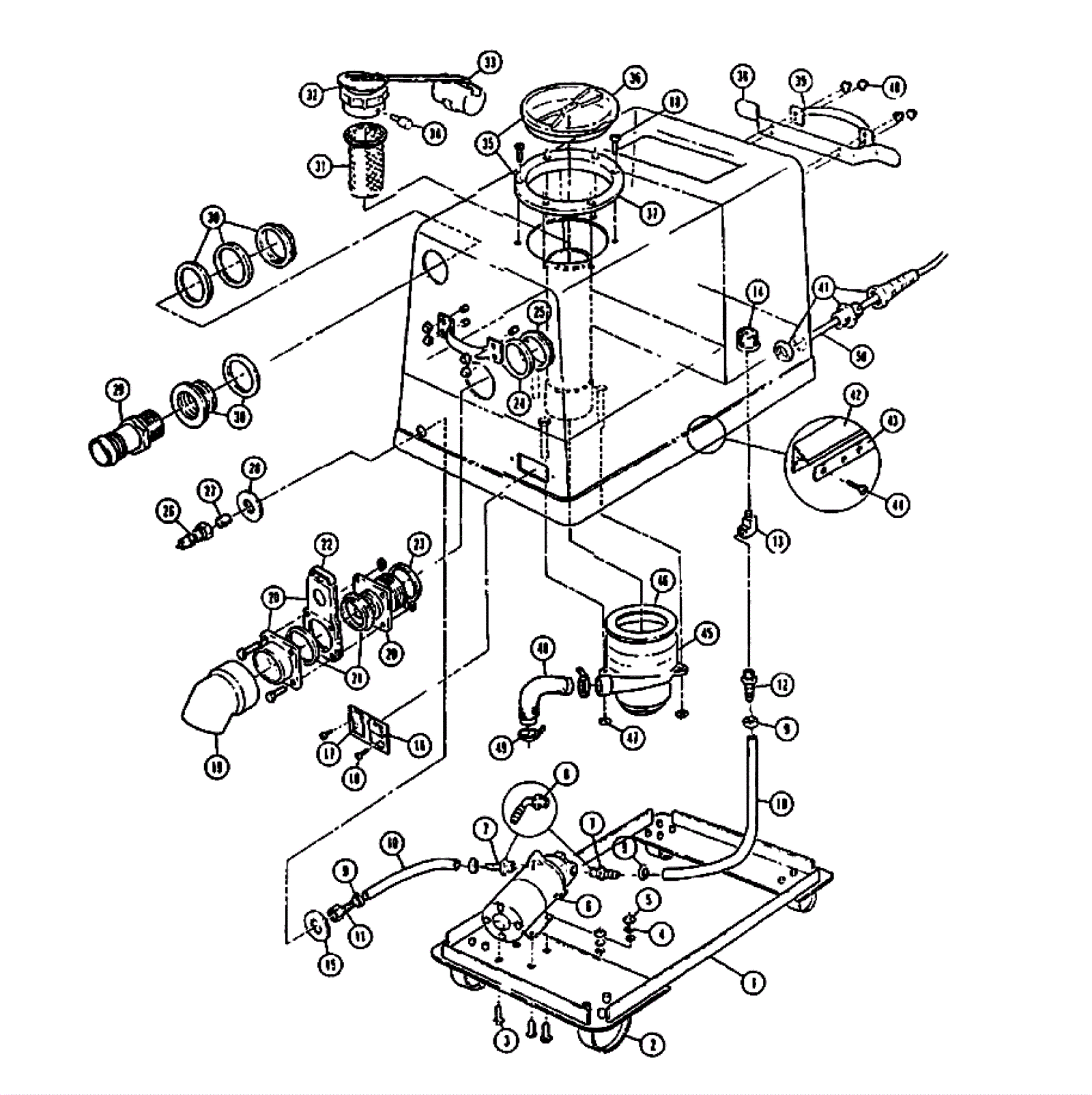

FABRIMATIC MCU900 Entire Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-1309 frame (OBSOLETE) $237.71 1 usually ships 1-5 days
2 175-1310 3 inch caster (OBSOLETE) $13.53 2 usually ships 1-5 days
3 999-1195 Screw 10-24 x 1 1/4 round head phillips zinc plated $0.99 4 ships same day
4 999-0393 Washer 3/16 flat aluminum $0.99 2 ships same day
5 999-0356 Nut 10-24 lock stainless steel $0.99 4 ships same day
6 275-9034 120 volt pump $265.43 1 usually ships 5-16 days
7 175-4808 Hose barb $4.50 2 usually ships 5-16 days
8 175-6019 90 degree barbed elbow $6.80 1 usually ships 5-16 days
9 175-6032 Hose clamp $4.30 3 usually ships 1-5 days
10 175-6020 Braided hose 3/8 x 45 inch (gray) $16.20 8 foot usually ships 5-16 days
11 175-6022 Brass fitting $5.30 1 usually ships 5-16 days
13 175-1945 Elbow fitting 1/2 x 1/2 inch $14.41 1 usually ships 1-5 days
14 175-7832 Mesh filter screen stainless steel $14.80 1 ships same day
15 999-0187 Washer 1/2 flat plain finish $0.99 1 ships same day
17 175-0899 1 speed switch (OBSOLETE) $19.69 1 usually ships 1-5 days
18 999-1111 Screw 6-32 x 3/4 pan head phillips sheet metal $1.43 2 ships same day
19 175-1308 Drain valve downspout $12.10 1 usually ships 5-16 days
20 175-1594 Drain valve $59.51 1 usually ships 1-5 days
21 175-1306 Drain valve gate seal $9.13 1 usually ships 5-16 days
22 175-1305 Drain valve handle $53.85 1 ships same day
23 175-1304 Drain valve gasket $5.70 1 usually ships 5-16 days
24 175-2640 Gasket $4.29 1 ships same day
25 175-2907 Nut 1 1/2 flanged hex $6.00 1 usually ships 5-16 days
26 991-8150 1/4 inch BH2-61 male nipple (mate to QD80) $8.75 1 ships same day
27 175-6244 Nipple $3.60 1 ships same day
28 N/A Not available Call for price 1 (Washer) usually ships 3-26 days
29 175-1286 Hose barb $11.77 1 usually ships 5-16 days
30 175-1292 Inlet flange fitting $48.40 1 usually ships 5-16 days
31 175-1291 2 inch cylinder screen with pvc (OBSOLETE) $14.41 1 usually ships 1-5 days
34 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated $0.99 1 ships same day
35 164-0202 Tank lid assembly $78.45 1 usually ships 7-10 days
36a 164-0044 Tank lid (clear) $56.56 1 ships same day
36b 991-1928 Tank lid (clear) (OBSOLETE) $110.27 1 (NON-OEM) usually ships 5-16 days
37 164-0205 Tank lid ring (black) $34.98 1 usually ships 8-23 days
39 175-1296 Fiberglass canister handle (OBSOLETE) $8.03 1 usually ships 1-5 days
40 175-1297 Acorn nut (OBSOLETE) $0.99 2 usually ships 1-5 days
41 175-0001 Strain relief $12.32 1 ships same day
42 N/A Not available Call for price 1 (Bumper) usually ships 3-26 days
43 175-1300 Bumper insert rail (OBSOLETE) $3.56 1 usually ships 1-5 days
44 175-1303 Screw 10-24 x 1 wafer (OBSOLETE) $0.99 15 usually ships 1-5 days
45a 175-1313 120V 3 stage vacuum motor (OBSOLETE) $442.20 1 (OEM) usually ships 1-5 days
45b 991-2120 120V, 3 stage vac motor dual ball tangential discharge $516.82 1 (NON-OEM) usually ships 5-16 days
46 175-1315 Vacuum motor gasket $14.40 1 usually ships 5-16 days
47 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 3 ships same day
48 175-6090 Exhaust hose 2 x 26 inch (black) $9.30 1 ships same day
49 175-0921 Wire tie $3.96 1 usually ships 5-16 days
50 175-1298 Cord 14/3 x 28 feet (OBSOLETE) $30.47 1 usually ships 1-5 days
