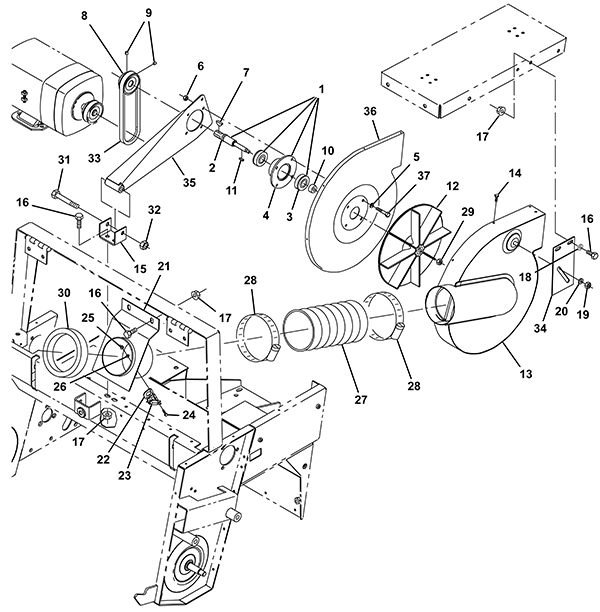

S10 Vacuum Fan Assembly

#PartDescriptionPriceReqNotesAvailability
1 675-0806 BEARING ASSY (Tennant Industrial) $186.37 1 (includes 2-4) usually ships 5-16 days
2 575-3620 SHAFT, DRIVE, VACUUM FAN (Tennant Industrial) $41.42 1 usually ships 5-16 days
3 275-8518 Ball bearing $36.52 2 usually ships 5-16 days
4 275-8511 Flange bearing housing $79.64 1 usually ships 1-5 days
5 999-0006 Washer 3/16 flat zinc plated $0.99 4 ships same day
6 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 4 ships same day
7 175-9159 Woodruff key $2.42 1 usually ships 1-5 days
8 575-3943 SHEAVE, 1GRV, 1.8/2.1PD 0.63B [3L/4L] (Tennant Industrial) $38.08 1 usually ships 5-16 days
9 175-4926 Screw 5/16-18 x 3/8 set nylon lock $3.96 2 ships same day
10 475-9236 SLEEVE, 0.39B 0.83D 0.4L (Tennant Industrial) $5.85 1 usually ships 5-16 days
11 175-9158 Square key 1/8 x 1/8 inch $3.30 1 usually ships 1-5 days
12 175-9154 Impeller 9 x 3/8 $90.53 1 usually ships 1-5 days
13 575-7945 HOUSING WLDT, VACUUM FAN (Tennant Industrial) $105.54 1 usually ships 5-16 days
14 275-5565 Screw 6-20 x 3/8 hex head $1.43 9 usually ships 1-5 days
15 575-1056 BRACKET, PIVOT, FAN (Tennant Industrial) $18.87 1 usually ships 5-16 days
16 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 4 ships same day
17 999-0665 Nut M8-1.25 flange lock $0.99 4 ships same day
18 275-0092 Washer 1/4 flat belleville $3.19 2 usually ships 5-16 days
19 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 ships same day
20 999-0024 Washer 5/16 flat stainless steel $1.34 1 ships same day
21 575-6622 ADAPTER WLDT, FILTER TO FAN (Tennant Industrial) $79.16 1 usually ships 5-16 days
22 175-9365 Fire switch gasket $12.10 1 usually ships 5-16 days
23 175-9364 Thermostat assembly 140 degree $28.82 1 usually ships 5-16 days
24 175-0852 Bolt 5mm-.8 x 12 hex head $3.96 2 usually ships 5-16 days
25 175-2894 Nut M5-.8 hex nylon locking $2.42 2 usually ships 5-16 days
26 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
27 175-0858 HOSE, FLEX, VACUUM, 04.0D, 005.0L (Tennant Industrial) $30.56 1 usually ships 5-16 days
28 175-7146 Wormdrive clamp (Tennant Industrial) $8.85 2 usually ships 5-16 days
29 999-1424 Nut M8-1.25 hex stainless steel $1.65 1 ships same day
30 275-1852 SEAL, RBR, CLSD, 1.00, 4.9D 03.9H (Tennant Industrial) $24.05 1 usually ships 5-16 days
31 475-8621 SCREW, HEX, M10 X 1.50 X 75, SS (Tennant Industrial) $4.68 1 usually ships 5-16 days
32 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 1 ships same day
33 275-1854 BELT, V, 19.0L, COGGED [4L] (Tennant Industrial) $33.40 1 usually ships 1-5 days
34 575-1742 PLATE, BACKING (Tennant Industrial) $24.22 1 usually ships 5-16 days
35 575-5791 BRACKET WLDT, MTG, VACUUM FAN (Tennant Industrial) $65.80 1 usually ships 5-16 days
36 575-1626 PLATE, BACKING, FAN HSNG (Tennant Industrial) $22.88 1 usually ships 5-16 days
37 999-0502 Bolt M6-1 x 20mm hex head full thread zinc $0.99 4 ships same day
