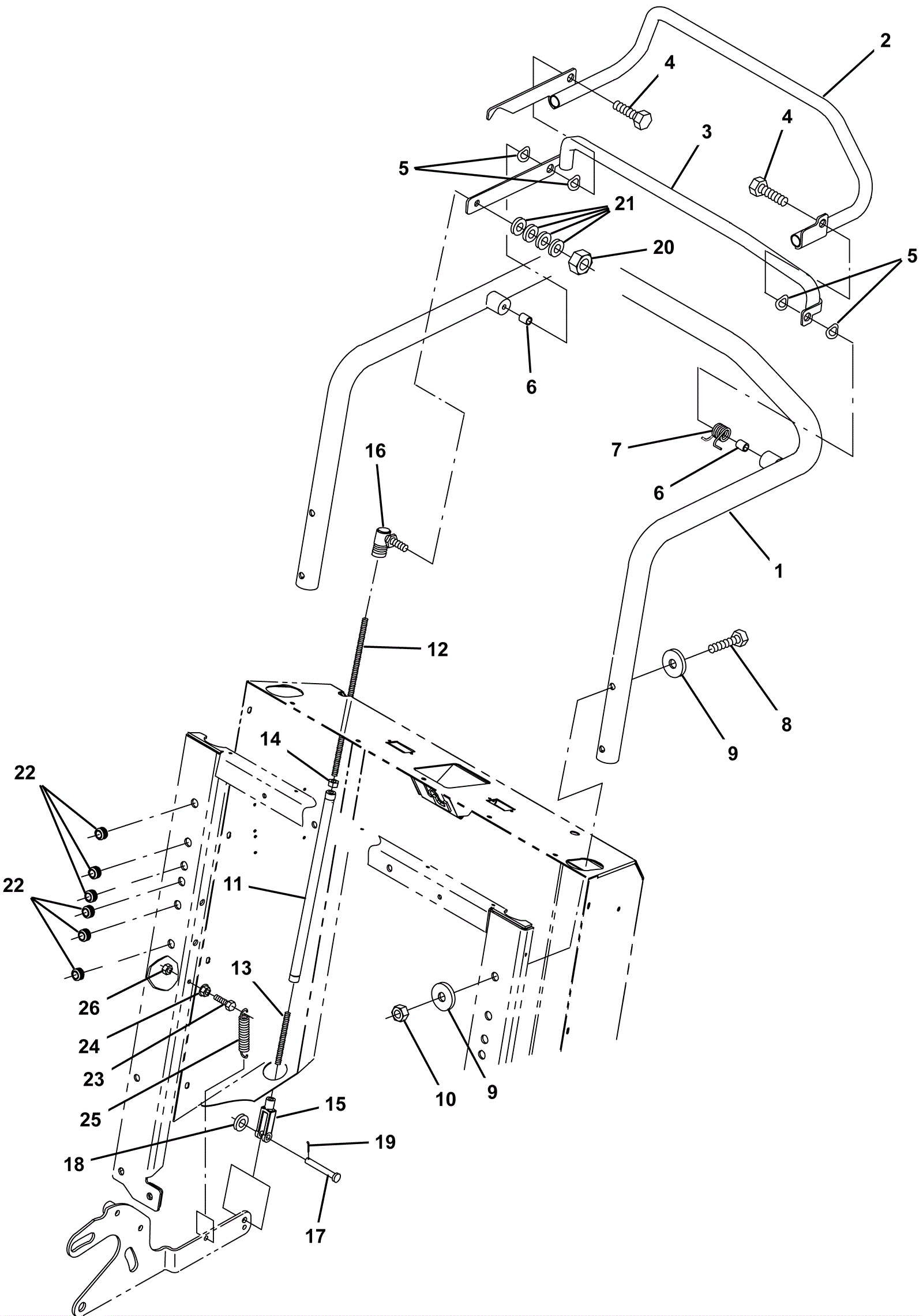

S10 Directional Control and Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 575-8856 HANDLE WLDT, MAIN (Tennant Industrial) $129.19 1 usually ships 10-16 days
2 575-4767 HANDLE WLDT, FORWARD (Tennant Industrial) $53.84 1 usually ships 10-16 days
3 575-4768 HANDLE WLDT, REVERSE (Tennant Industrial) $53.84 1 usually ships 10-16 days
4 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish $0.99 2 ships same day
5 275-1646 Spring washer wave $4.09 4 usually ships 1-5 days
6 475-9538 SLEEVE, 0.34B 0.47D 0.6L, PL (Tennant Industrial) $7.33 2 usually ships 10-16 days
7 475-8736 SPRING, TORSION (Tennant Industrial) $5.17 1 usually ships 10-16 days
8 999-0788 Screw M8-1.25 x 55mm hex head stainless steel $1.54 4 ships same day
9 999-0024 Washer 5/16 flat stainless steel $1.34 8 ships same day
10 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 4 ships same day
11 575-3367 ROD WLDT, CNTRL, PROPEL (Tennant Industrial) $37.34 1 usually ships 10-16 days
12 475-9768 ROD, UPPER, CONTROL LEVER (Tennant Industrial) $9.84 1 usually ships 10-16 days
13 475-7572 ROD, LOWER, DIR CNTRL LINK (Tennant Industrial) $3.20 1 usually ships 10-16 days
14 999-0763 Nut 5/16-24 hex jam plain finish $0.99 1 ships same day
15 275-1663 CLEVIS, ADJ, 0.31PIN, 0.31-24 (Tennant Industrial) $67.68 1 usually ships 1-5 days
16 275-1650 BALLJOINT, .31-24 FEM, .31-24 MAL, QDC (Tennant Industrial) $34.51 1 usually ships 1-5 days
17 175-3351 Clevis pin $4.09 1 ships same day
18 999-0123 Washer 1/4 SAE flat zinc plated $0.99 1 ships same day
19 175-6176 Cotter pin $3.04 1 ships same day
20 999-0763 Nut 5/16-24 hex jam plain finish $0.99 1 ships same day
21 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
22 175-4401 GROMMET, RBR, 0.38ID, F/0.5H, .12 MATL (Tennant Industrial) $5.00 6 usually ships 1-5 days
23 175-0837 Bolt M5-.8 x 16mm hex head $3.04 1 usually ships 1-5 days
24 275-8551 Nut M5-.8 x 16mm hex flange (Tennant Industrial) $8.84 1 usually ships 1-5 days
25 275-1662 Tension spring $17.05 1 usually ships 1-5 days
26 175-2894 Nut M5-.8 hex nylon locking $3.04 1 usually ships 10-16 days
