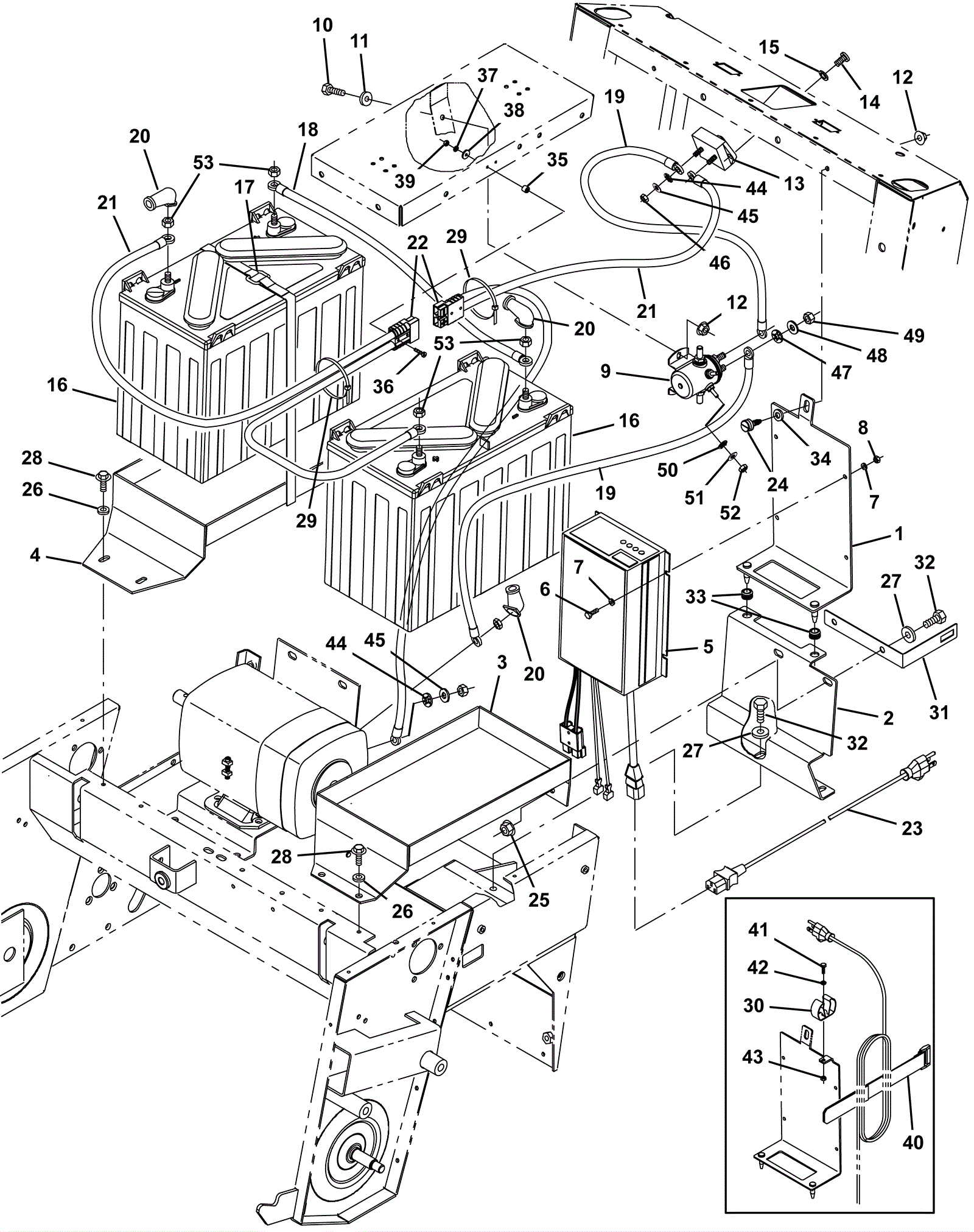

S10 Battery and Charger Assembly

#PartDescriptionPriceReqNotesAvailability
1 575-6256 BRACKET, CHARGER, BATTERY (Tennant Industrial) $78.85 1 usually ships 10-16 days
2 575-6283 BRACKET, CHARGER (Tennant Industrial) $79.68 1 usually ships 10-16 days
3 575-8390 TRAY WLDT, BATTERY (Tennant Industrial) $126.36 1 usually ships 10-16 days
4 575-8617 TRAY WLDT , BATTERY, RH (Tennant Industrial) $131.53 1 usually ships 10-16 days
5 275-6701 24V 11amp on board battery charger $830.39 1 usually ships 10-16 days
6 175-3291 SCREW, HEX, M4 X 0.70 X 20, 8.8 (Tennant Industrial) $5.50 4 usually ships 10-16 days
7 999-1158 Washer #6 flat stainless steel $0.99 8 ships same day
8 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 4 ships same day
9 575-7206 CONTACTOR, 24VDC, 60A, SPNO (Tennant Industrial) $90.68 1 usually ships 10-16 days
10 999-0502 Bolt M6-1 x 20mm hex head full thread zinc $0.99 2 ships same day
11 275-0092 Washer 1/4 flat belleville $4.36 2 usually ships 10-16 days
12 999-6694 Nut M6-1 hex serrated flange stainless steel $0.99 4 ships same day
13 575-7693 CIRCUITBREAKER, 60.0A [RESETABLE] (Tennant Industrial) $101.19 1 usually ships 10-16 days
14 999-0726 Screw 10-32 x 5/8 pan head phillips zinc plated $0.99 2 ships same day
15 999-1026 Washer #10 internal lock stainless steel $0.99 2 ships same day
16a 162-0057 12V 150Ah wet battery $400.95 2 ships same day
16b 162-0018 12V 130Ah wet battery $254.39 2 ships same day
17 175-9461 Strap $18.37 2 usually ships 1-5 days
18 275-9827 Battery cable assembly (black) $30.25 1 usually ships 1-5 days
19 275-1681 CABLE, 06GA 12.0L BLK .38RING /.38RING (Tennant Industrial) $31.01 2 usually ships 1-5 days
20 175-2122 90 degree cable boot $5.28 3 usually ships 10-16 days
21 175-9377 Cable battery harness $118.03 2 (includes 22) usually ships 10-16 days
22 175-9378 50amp Anderson connector (red) $31.13 1 ships same day
23 275-1585 16/3 charger power cord 15 foot (black) $80.83 1 ships same day
24 275-1632 KNOB ASSY, RND, 1.38D .31-06 1.0L, METAL (Tennant Industria $30.01 1 usually ships 10-16 days
25 999-0665 Nut M8-1.25 flange lock $0.99 4 ships same day
26 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
27 999-0024 Washer 5/16 flat stainless steel $1.34 4 usually ships 12-18 days
28 175-3166 Bolt M6-1 x 16mm hex head $5.28 4 usually ships 10-16 days
29 175-7795 Cable tie $5.15 11 ships same day
30 175-7938 Spring clip (black) $12.98 1 (before SN 007671) ships same day
31 575-0930 BRACKET, HOLDER, FUSE (Tennant Industrial) $19.67 1 usually ships 10-16 days
32 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 6 ships same day
33 175-4401 GROMMET, RBR, 0.38ID, F/0.5H, .12 MATL (Tennant Industrial) $5.50 2 usually ships 1-5 days
34 275-7133 Washer .34B x 1.25D x .11 flat stainless steel $5.50 1 ships same day
35 475-7573 TUBE, 0.16ID 0.38OD 00.3L, SS (Tennant Industrial) $3.00 2 usually ships 10-16 days
37 999-0479 Washer #4 internal star lock zinc plated $0.99 2 ships same day
38 999-1158 Washer #6 flat stainless steel $0.99 2 ships same day
39 275-0523 Nut M3-1/2 standard hex stainless steel $1.72 2 usually ships 1-5 days
40 375-7818 Cable strap Call for price 1 (from SN 007539-007670) usually ships 10-16 days
41 999-0521 Screw M4-.7 x 12mm pan head phillips zinc $2.31 1 (before SN 007671) ships same day
42 999-1158 Washer #6 flat stainless steel $0.99 1 (before SN 007671) ships same day
43 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 1 (before SN 007671) ships same day
44 999-0238 Washer 1/4 internal star lock zinc plated $0.99 4 ships same day
45 999-0006 Washer 3/16 flat zinc plated $0.99 4 ships same day
46 999-0651 Nut 1/4-28 hex stainless steel $0.99 2 ships same day
47 999-0406 Washer 5/16 internal star lock zinc plated $0.99 2 ships same day
48 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
49 999-0763 Nut 5/16-24 hex jam plain finish $0.99 2 ships same day
50 999-0089 Washer #10 internal star lock zinc plated $0.99 2 ships same day
51 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
52 999-0460 Nut 10-32 hex $0.99 2 ships same day
53 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
