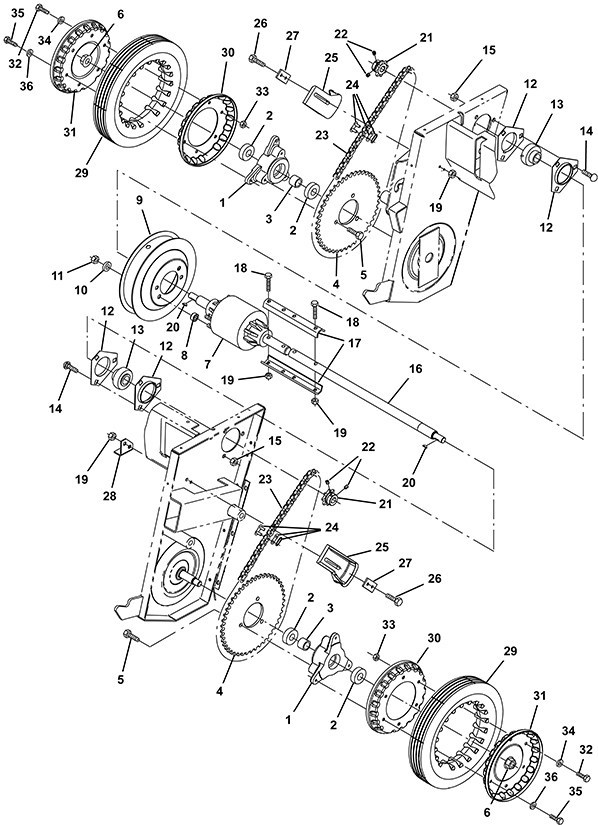

S10 Drive Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 575-3218 HUB, WHEEL (Tennant Industrial) $35.24 2 usually ships 5-16 days
2 575-0549 BEARING, BALL (Tennant Industrial) $12.02 4 usually ships 5-16 days
3 475-9235 SLEEVE, 0.65B 0.87D 0.6L, PL (Tennant Industrial) $5.85 2 usually ships 5-16 days
4 275-1837 SPROCKET, 41, 45TOOTH, 2.250B, PNTD (Tennant Industrial) $73.65 2 usually ships 5-16 days
5 175-3166 Bolt M6-1 x 16mm hex head $3.96 6 usually ships 5-16 days
6 999-0519 Nut M12-1.75 nylon insert lock stainless steel $2.12 2 ships same day
7 675-4774 DIFFERENTIAL (Tennant Industrial) $585.50 1 usually ships 5-16 days
8 475-8854 SLEEVE, 0.33B 0.66D 0.3L, CHAM (Tennant Industrial) $4.68 4 usually ships 5-16 days
9 275-1846 SHEAVE, FLAT, 6.8D 1.42W 2.12B (Tennant Industrial) $138.94 1 usually ships 1-5 days
10 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
11 999-0278 Nut 5/16-18 nylon insert lock jam zinc plated $0.99 4 ships same day
12 275-1832 FLANGE, BRG, 1.8ID 3H (Tennant Industrial) $8.02 4 usually ships 1-5 days
13 275-0492 Bearing with collar 3/4b 1.85d 1.06w $51.37 2 usually ships 5-16 days
14 475-7746 BOLT, CARRIAGE, .31-18 X 0.75 (Tennant Industrial) $3.01 6 usually ships 5-16 days
15 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 6 ships same day
16 575-5403 SHAFT, COUNTER (Tennant Industrial) $60.29 1 usually ships 5-16 days
17 575-3053 COUPLING, HALF (Tennant Industrial) $30.73 2 usually ships 5-16 days
18 175-0574 Bolt 6mm-1 x 35 hex head $3.30 4 usually ships 5-16 days
19 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 8 ships same day
20 175-9081 Woodruff key $2.42 2 usually ships 1-5 days
21 275-1830 SPROCKET, 41, 08TOOTH, 0.50B (Tennant Industrial) $105.71 2 usually ships 5-16 days
22 275-1831 SCREW, SET, .25-20 X 0.31, NL (Tennant Industrial) $7.35 4 usually ships 1-5 days
23 575-4632 CHAIN, RLR, 41 X 075 PITCHES (Tennant Industrial) $45.09 2 usually ships 5-16 days
24 275-1836 LINK, CHAIN, RLR, #41 (Tennant Industrial) $5.85 2 usually ships 5-16 days
25 275-1834 GUIDE, CHAIN, DRIVE, WHEEL (Tennant Industrial) $60.45 2 usually ships 1-5 days
26 999-0518 Bolt M6-1 x 25mm hex head full thread zinc $0.99 4 ships same day
27 475-9852 PLATE, GUIDE, CHAIN (Tennant Industrial) $9.52 2 usually ships 5-16 days
28 575-1029 ANGLE, STOP (Tennant Industrial) $18.20 1 usually ships 5-16 days
29a 675-1730 WHEEL ASSY [S10] (Tennant Industrial) $234.64 2 (includes 29b-34) usually ships 5-16 days
29b 275-1841 TIRE, 10.0X2.00 [EHS] (Tennant Industrial) $124.42 1 usually ships 5-16 days
30 575-2746 RIM, HALF, 06.5 X 0.50 4.5BC/6BOLT INNER (Tennant Industrial $29.06 1 usually ships 5-16 days
31 575-2788 RIM, HALF, 06.5 X 0.50 4.5BC/6BOLT OUTER (Tennant Industrial $29.23 1 usually ships 5-16 days
32 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 3 ships same day
33 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 3 ships same day
34 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 3 ships same day
35 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 6 ships same day
36 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 6 ships same day
