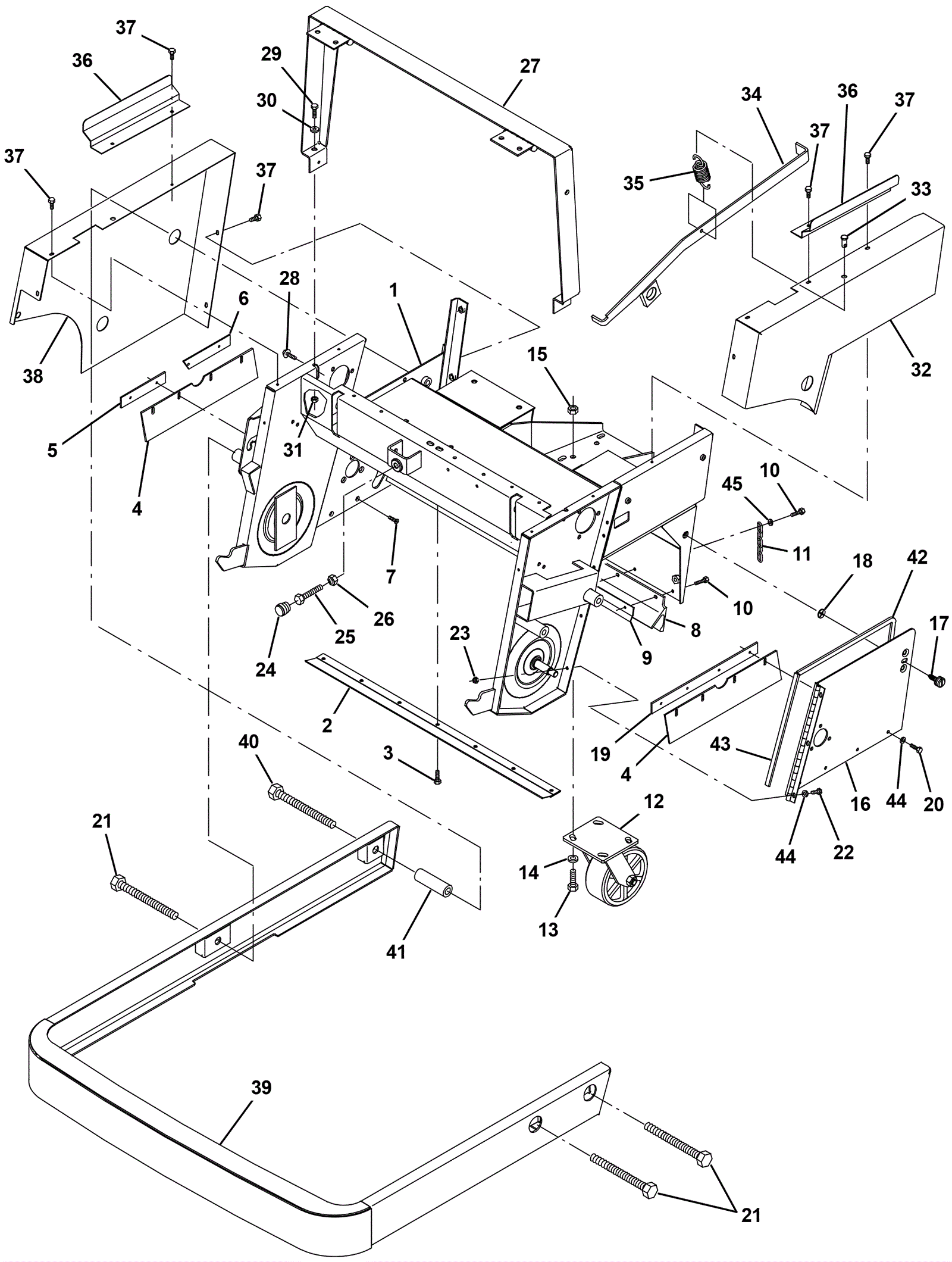

S10 Main Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 675-6828 FRAME WLDT, MAIN (Tennant Industrial) $1,276.88 1 usually ships 5-16 days
2 575-3797 LIP ASSY, PAN (Tennant Industrial) $36.57 1 usually ships 5-16 days
3 999-1228 Screw M5-.8 x 10mm hex head stainless steel $0.99 7 ships same day
4 275-1620 SKIRT, NEO, .12, 03.00W 12.80L, 04/ SL (Tennant Industrial) $16.53 2 usually ships 1-5 days
5 575-0599 RETAINER, SKIRT, .12, 1.0W X 04.9L, PL (Tennant Industrial) $14.86 1 usually ships 5-16 days
6 575-0600 RETAINER, SKIRT, .12, 1.0W X 05.1L, PL (Tennant Industrial) $14.86 1 usually ships 5-16 days
7 275-3071 SCREW, FLT, SOC, M5 X 0.80 X 12, 10.9 (Tennant Industrial) $6.01 4 usually ships 1-5 days
8 275-1636 SKIRT, NEO, .19, 02.88W 27.38L, 07/ SL (Tennant Industrial) $100.70 1 usually ships 1-5 days
9 575-2627 RETAINER, REAR SEAL (Tennant Industrial) $29.73 1 usually ships 5-16 days
10 475-8019 SCREW, HEX, 10-24 X 0.75, FMG, PL (Tennant Industrial) $3.51 7 usually ships 5-16 days
11 275-1630 CHAIN, SASH, #35, 03.5L 06 LINK (Tennant Industrial) $4.84 1 usually ships 1-5 days
12 175-2100 5 inch caster wheel assembly (gray) $108.13 1 ships same day
13 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 4 ships same day
14 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
15 999-0665 Nut M8-1.25 flange lock $0.99 4 ships same day
16 575-8588 DOOR ASSY (Tennant Industrial) $119.91 1 usually ships 5-16 days
17 275-1632 KNOB ASSY, RND, 1.38D .31-06 1.0L, METAL (Tennant Industria $27.39 1 usually ships 5-16 days
18 275-1633 RETAINER, SCREW (Tennant Industrial) $4.84 1 usually ships 1-5 days
19 575-1184 RETAINER, SKIRT, .12, 0.98W X 11.63L (Tennant Industrial) $19.54 1 usually ships 5-16 days
20 999-1220 Screw M5-.8 x 12mm hex head stainless steel $0.99 4 ships same day
21 175-0615 Bolt M12-1.75 x 25mm hex head $3.96 3 usually ships 5-16 days
22 999-1220 Screw M5-.8 x 12mm hex head stainless steel $0.99 3 ships same day
23 175-2894 Nut M5-.8 hex nylon locking $2.42 3 usually ships 5-16 days
24 275-1628 TIP, RBR, 0.94D 0.59B 0.88L (Tennant Industrial) $5.18 1 usually ships 1-5 days
25 475-8987 SCREW, HEX, M10 X 1.50 X 60, FL (Tennant Industrial) $6.51 1 usually ships 5-16 days
26 999-0767 Nut M10-1.5 hex coarse thread $0.99 1 ships same day
27 575-8803 LINTEL WLDT (Tennant Industrial) $124.92 1 usually ships 5-16 days
28 175-3166 Bolt M6-1 x 16mm hex head $3.96 2 usually ships 5-16 days
29 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 2 ships same day
30 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
31 999-6694 Nut M6-1 hex serrated flange stainless steel $0.99 2 ships same day
32 575-8270 COVER WLDT, LH (Tennant Industrial) $113.23 1 usually ships 5-16 days
33 275-0146 PIN, CLEVIS, 0.37D X 0.75L (Tennant Industrial) $5.01 1 usually ships 5-16 days
34 575-4098 LEVER WLDT, BRAKE (Tennant Industrial) $43.59 1 usually ships 5-16 days
35 275-0154 SPRING, EXTN, 1.10OD 0.15WIR 03.2L (Tennant Industrial) $32.73 1 usually ships 1-5 days
36 575-2745 ANGLE, STOP (Tennant Industrial) $30.90 2 usually ships 5-16 days
37 475-8027 SCREW, HEX, 10-24 X 0.50, TCUT, PL (Tennant Industrial) $3.67 12 usually ships 5-16 days
38 575-7725 COVER, SIDE, RIGHT (Tennant Industrial) $100.70 1 usually ships 5-16 days
39 675-4190 BUMPER WLDT [S10 OVERLAP] (Tennant Industrial) $484.13 1 usually ships 5-16 days
40 475-9385 SCREW, HEX, M12 X 1.75 X 100, 8.8 (Tennant Industrial) $6.85 3 usually ships 5-16 days
41 575-0399 TUBE (Tennant Industrial) $12.86 1 usually ships 5-16 days
42 275-1618 SEAL, RBR, OPEN, 0.19, 0.38W 19.2L (Tennant Industrial) $9.02 1 usually ships 1-5 days
43 275-1619 SEAL, RBR, OPEN, 0.19, 0.38W 09.6L (Tennant Industrial) $7.68 1 usually ships 1-5 days
44 999-0998 Washer #10 flat stainless steel $0.99 6 ships same day
45 175-9247 Washer 10 lock internal-external plated $3.30 1 usually ships 1-5 days
