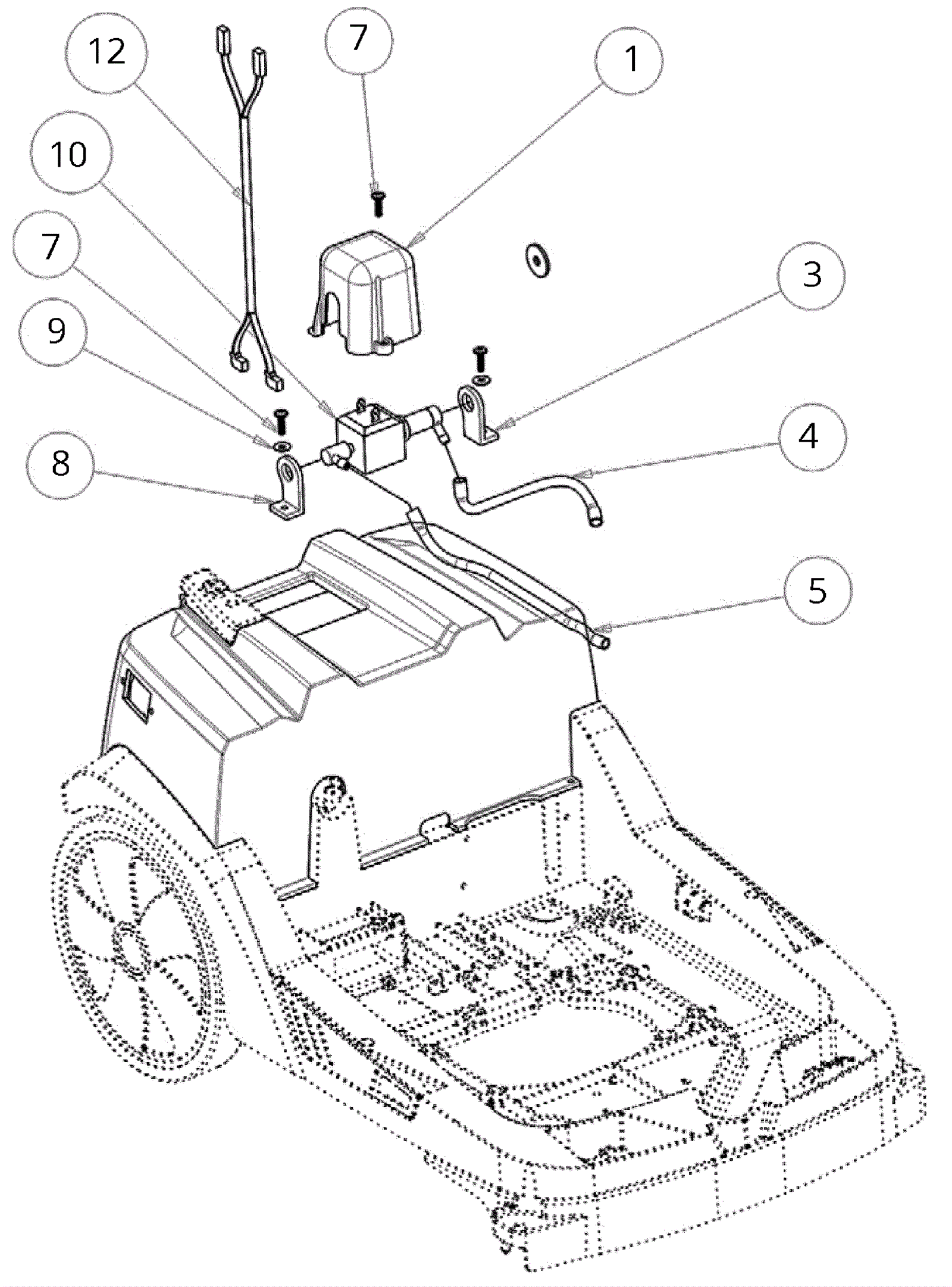

Solution Pump Assembly
Click to enlarge
#
Part
Description
Req
Notes
Availability
1
375-9583
Pump covering
1
3
203-6109
Right hand side pump support
1
4
375-9584
Tube 5 x 8
1
5
375-9585
Tube 5 x 8
1
8
203-6112
Left hand side pump support
1
9
375-5391
Washer 12D
2
