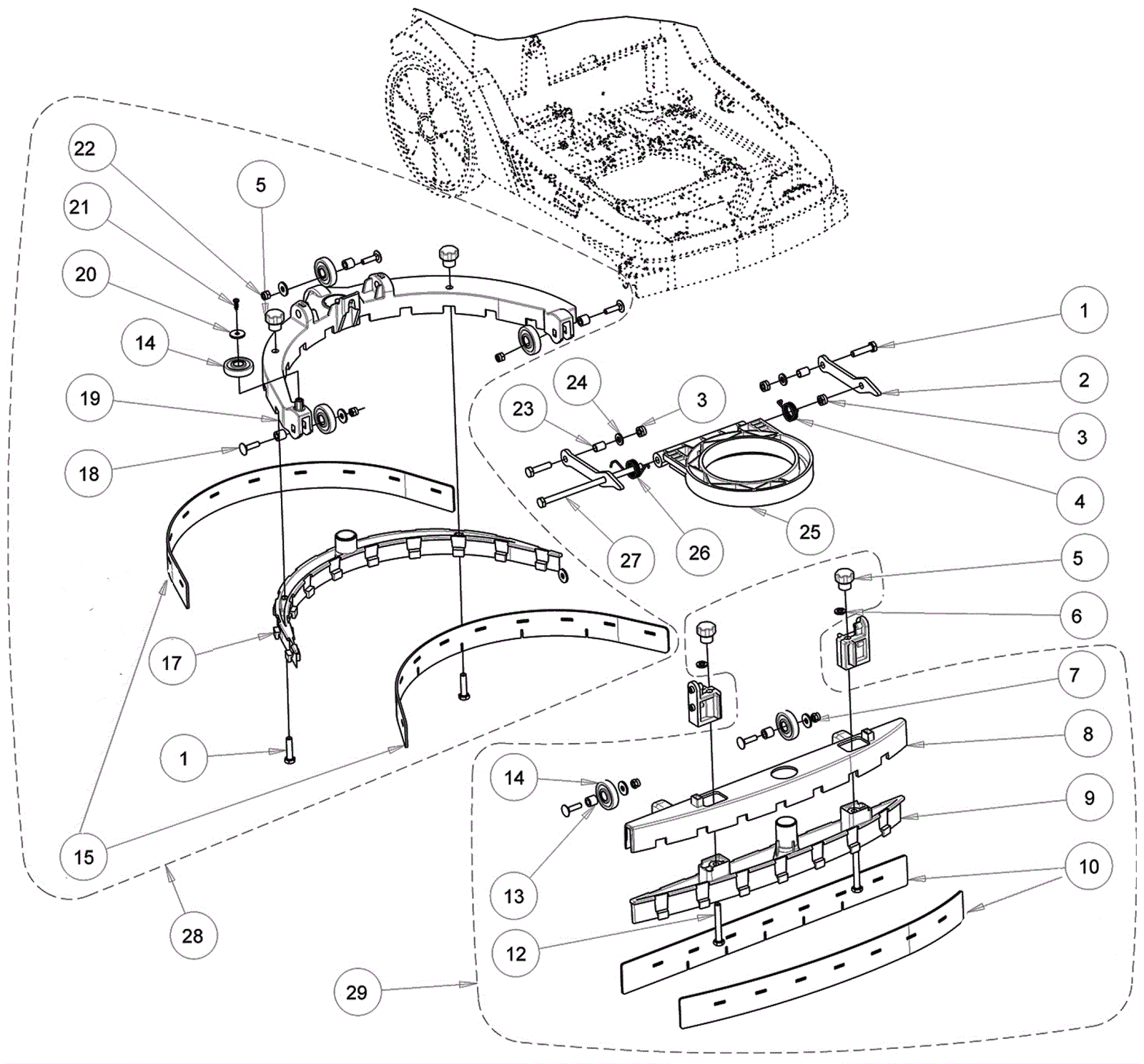

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
189-0897
|
Washer D8 |
4 |
|
|
2 |
375-9563
|
Bracket |
2 |
|
|
3 |
375-9499
|
Nut M6 inox |
3 |
|
|
4 |
203-6096
|
Right hand floor wiper spring |
1 |
|
|
5 |
375-9564
|
Small knob |
4 |
|
|
6 |
203-0971
|
Washer D6 |
2 |
|
|
7 |
189-1462
|
Washer 5 x 14 inch |
5 |
|
|
8 |
375-9565
|
Front squeegee body |
1 |
|
|
9 |
375-9566
|
Front squeegee joint |
1 |
|
|
10a |
375-9567
|
11 inch straight linatex squeegee blade kit |
1 |
(standard) |
|
10b |
375-9568
|
11 inch straight gum rubber squeegee blade kit |
1 |
(optional) |
|
10c |
375-9569
|
11 inch straight polyurethane squeegee blade kit |
1 |
(optional) |
|
12 |
375-9570
|
Screw M6 x 45 inox |
2 |
|
|
13 |
375-9571
|
Spacer |
5 |
|
|
14 |
375-9572
|
Wheel |
6 |
|
|
15a |
375-9573
|
11 inch linatex parabolic squeegee blade kit |
1 |
(standard) |
|
15b |
375-9574
|
11 inch gum rubber parabolic squeegee blade kit |
1 |
(optional) |
|
15c |
375-9575
|
11 inch polyurethane parabolic squeegee blade kit |
1 |
(optional) |
|
17 |
203-6102
|
Rear squeegee joint |
1 |
|
|
18 |
375-9576
|
Screw M5 x 25 |
5 |
|
|
19 |
203-6103
|
Rear squeegee body |
1 |
|
|
20 |
375-9577
|
Washer 4-16 inox |
1 |
|
|
21 |
189-2243
|
5-10 inch M. 3 screw |
1 |
|
|
22 |
375-9518
|
Nut M5 inox |
5 |
|
|
23 |
375-9578
|
Spacer |
2 |
|
|
24 |
203-1286
|
Washer D6 |
2 |
|
|
25 |
375-9579
|
Squeegee support |
1 |
|
|
26 |
375-9580
|
Left hand floor wiper spring |
1 |
|
|
27 |
203-6107
|
Screw M6 x 130 |
1 |
|
|
28 |
375-9581
|
11 inch parabolic linatex squeegee assembly |
1 |
(includes 1, 5, and 14-22) (standard) |
|
29 |
375-9582
|
11 inch straight linatex squeegee assembly |
1 |
(includes 5-14) (standard) |
|
