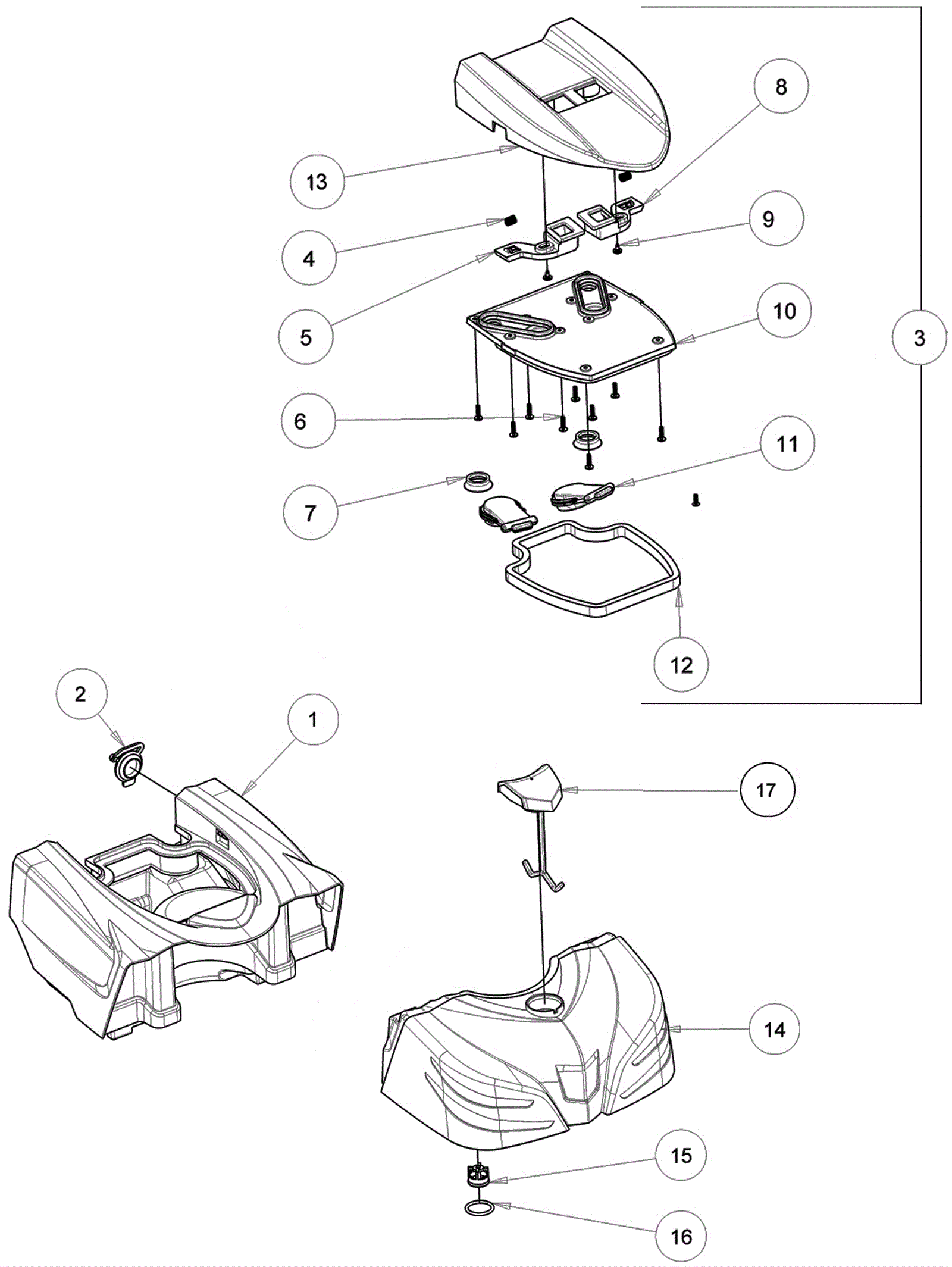

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-9549
|
Recovery tank |
1 |
(includes item 2) |
|
2 |
375-9550
|
Cap |
1 |
|
|
3 |
375-9551
|
Recovery tank cover |
1 |
(includes 4-13) |
|
4 |
375-9552
|
Cover spring |
2 |
|
|
5 |
375-9553
|
Left hand lever |
1 |
|
|
8 |
375-9555
|
Right hand lever |
1 |
|
|
9 |
375-9498
|
Screw 4.8 x 9.5 self tapping |
2 |
|
|
12 |
375-9557
|
Gasket |
1 |
|
|
14 |
375-9558
|
Solution tank |
1 |
(includes 15-17) |
|
16 |
375-9560
|
O-ring |
1 |
|
|
