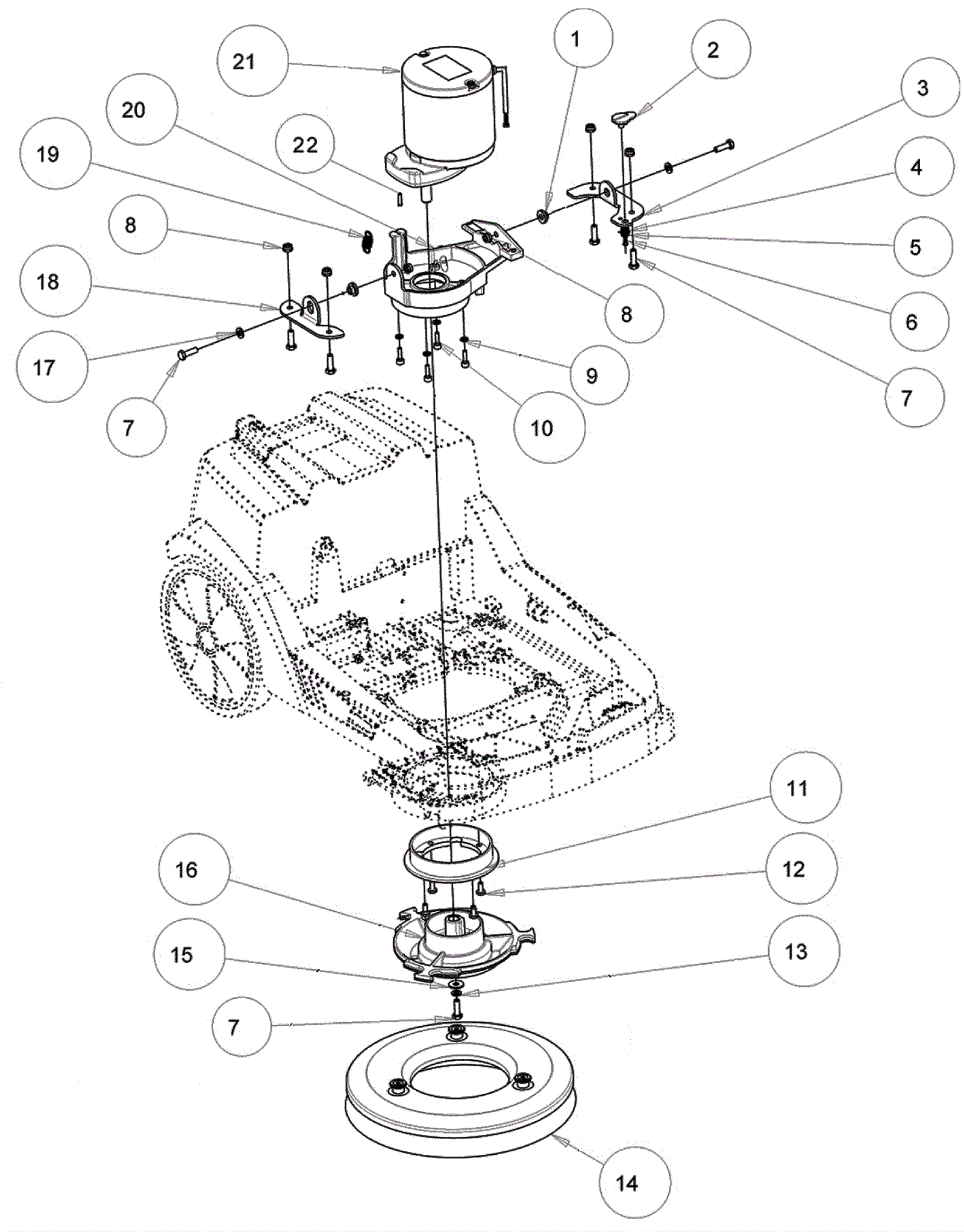

CS5 Brush Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1 203-6055 Spacer $4.22 2 usually ships 10-12 days
2 375-9529 Small knob $1.58 1 usually ships 10-16 days
3 203-6057 Bracket $3.43 1 usually ships 10-12 days
4 375-9530 Lever traction spring $11.22 1 usually ships 10-16 days
5 375-9531 Washer D. 4 inox $3.17 1 usually ships 10-16 days
6 189-2243 5-10 inch M. 3 screw $4.25 1 usually ships 1-5 days
7 375-9532 Screw 6 x 20 inox $4.36 7 ships same day
8 375-9499 Nut M6 inox $3.70 6 usually ships 10-16 days
9 375-9480 Washer D. 5 inox $3.17 4 usually ships 10-16 days
10 203-6059 Screw 5 x 16 inox $4.25 4 usually ships 10-12 days
11 375-9533 Squeegee flange $22.99 1 usually ships 10-16 days
12 375-9534 Screw 5 x 12 $19.14 4 usually ships 10-16 days
13 375-9535 Washer D. 6 inox $3.17 1 usually ships 10-16 days
14 375-9472 11 inch disk medium scrub brush $124.63 1 usually ships 10-16 days
15 375-9536 Washer D. 6 x 18 inox $3.17 1 usually ships 10-16 days
16 375-9537 Drive disk $20.79 1 usually ships 10-16 days
17 375-9508 Washer D. 6 inox $3.17 2 usually ships 10-16 days
18 203-6064 Bracket $3.43 1 usually ships 10-12 days
19 203-6065 Brush motor spring $0.99 1 usually ships 10-12 days
20 375-9538 Support $20.46 1 usually ships 10-16 days
21a 375-9539 100W brush motor $275.44 1 (includes 21b and 22) usually ships 10-16 days
21b 375-9540 Brush motor carbon brushes $84.04 1 usually ships 10-16 days
22 675-9499 Motor key $6.49 1 usually ships 10-16 days
