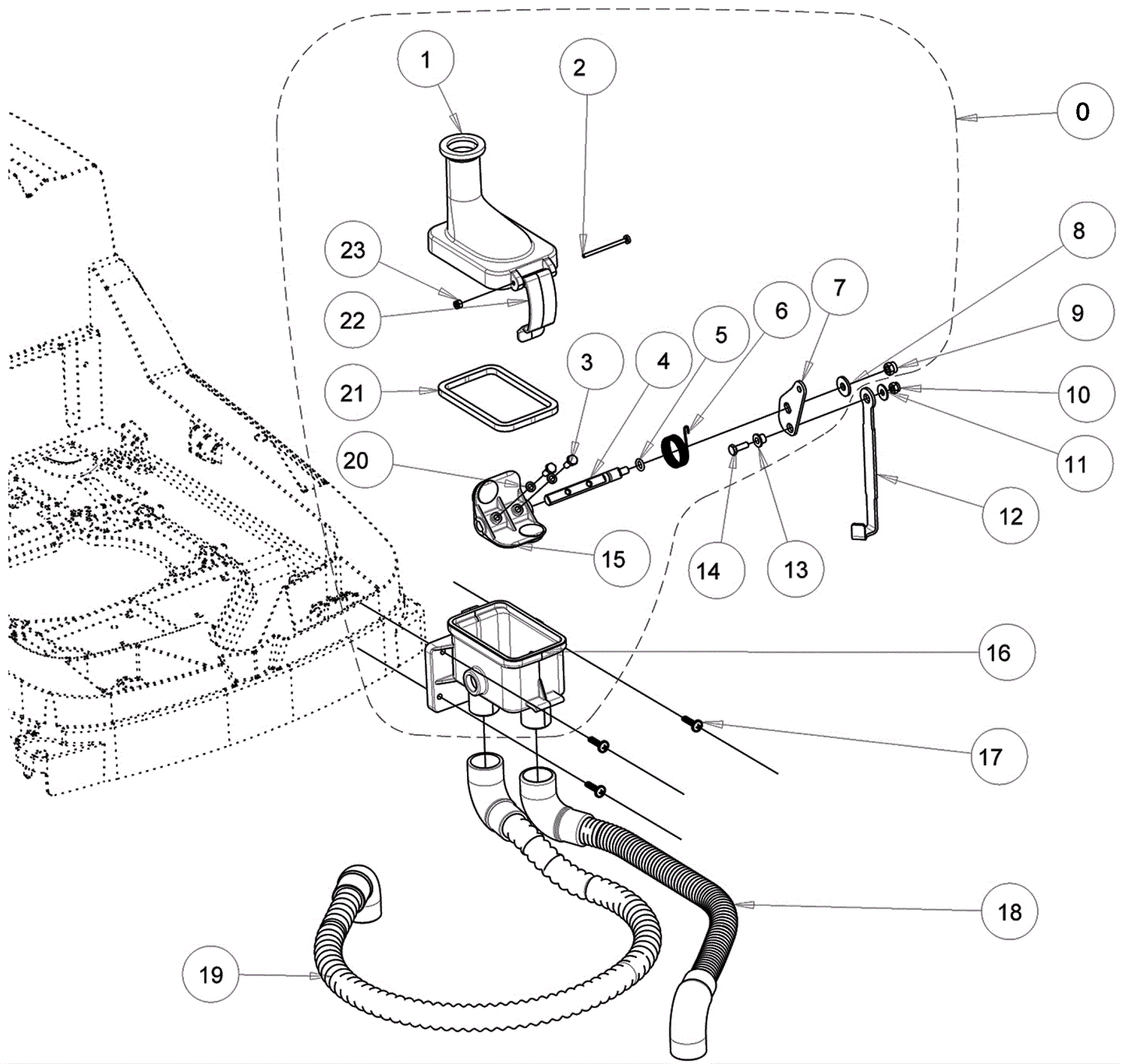

CS5 Squeegee Diverter Valve Assembly

#PartDescriptionPriceReqNotesAvailability
0 375-9514 Suction valve kit $52.25 1 (includes 1-9, 13-16, 20-23) usually ships 10-16 days
1 375-9515 Cover valve $5.50 1 usually ships 10-16 days
2 N/A Not available Call for price 1 (screw M3 x 40 crosshead) usually ships 3-26 days
3 375-9516 Screw M4 x 10 inox $3.96 2 usually ships 10-16 days
4 N/A Not available Call for price 1 (shaft) usually ships 3-26 days
5 N/A Not available Call for price 1 (o-ring 5.8 x 1.78) usually ships 3-26 days
6 375-9517 Valve spring $1.45 1 usually ships 10-16 days
7 N/A Not available Call for price 1 (bracket) usually ships 3-26 days
8 375-9500 Washer D. 5 x 14 inox $2.90 1 usually ships 10-16 days
9 375-9518 Nut M5 inox $3.43 1 usually ships 10-16 days
10 999-1619 Nut M4 hex stainless steel $0.99 1 usually ships 12-18 days
11 203-5800 Washer 4x12 steel inox $2.90 1 usually ships 10-12 days
12 375-9520 Lever $5.28 1 usually ships 10-16 days
13 375-9521 Spacer $4.09 1 usually ships 10-16 days
14 375-9522 Screw M4 x 12 inox $3.96 1 usually ships 10-16 days
15 N/A Not available Call for price 1 (valve) usually ships 3-26 days
16 N/A Not available Call for price 1 (body valve) usually ships 3-26 days
17 375-9479 Screw 4 x 16 $3.96 3 usually ships 10-16 days
18 375-9523 Front squeegee hose $34.76 1 usually ships 10-16 days
19 375-9524 Rear squeegee hose $35.53 1 usually ships 10-16 days
20 375-9525 Washer D. 4 $2.90 2 usually ships 10-16 days
21 375-9526 Gasket $2.11 1 usually ships 10-16 days
22 375-9527 Cap $2.11 1 usually ships 10-16 days
23 999-1419 Nut M3-.5 hex stainless steel $0.99 1 ships same day
