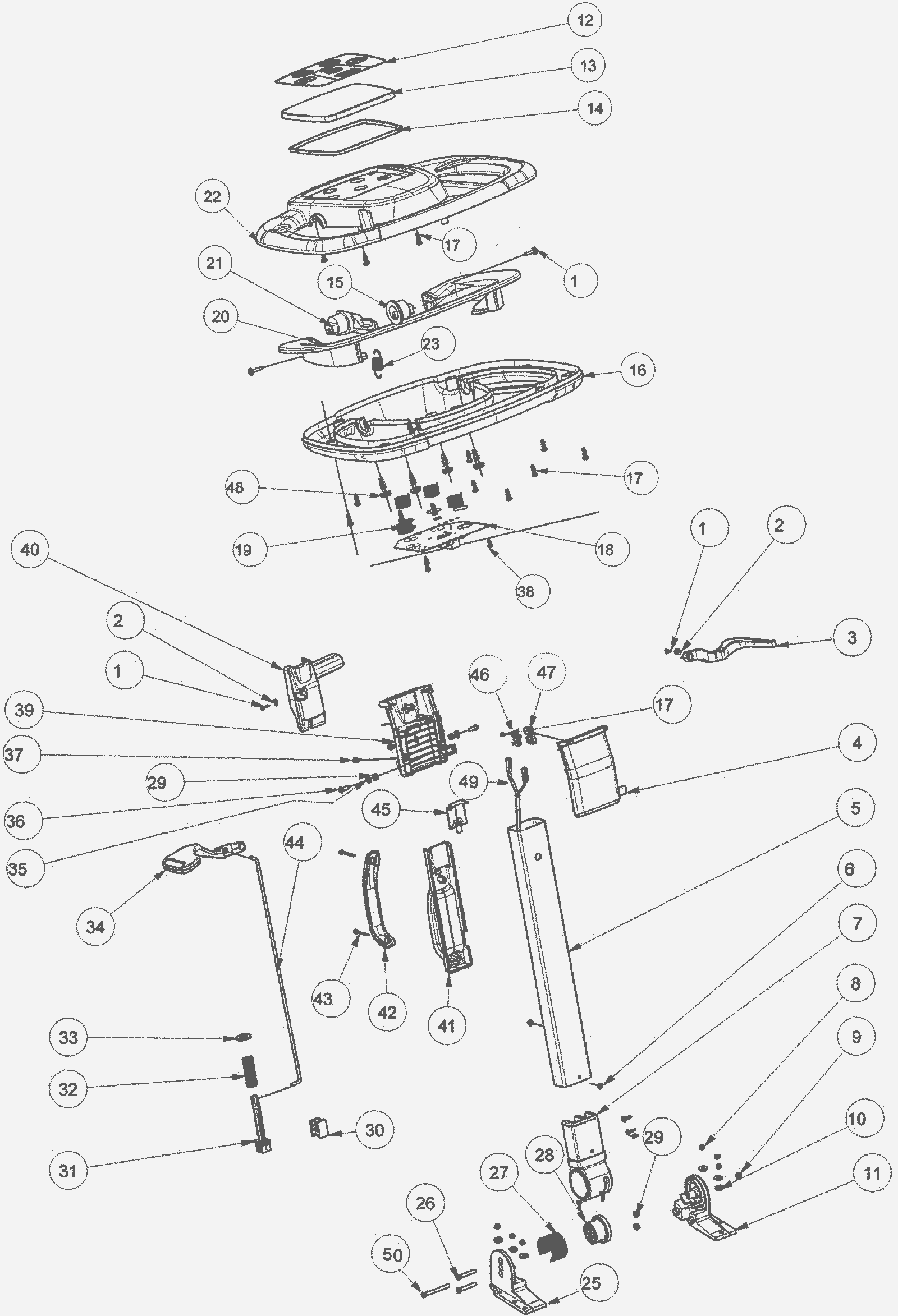

Control Handle Assembly

#PartDescription ReqNotesAvailability
1 375-9496 Screw M3.5 x 16 4
2 375-5391 Washer 12D 2
3 375-9497 Lever 1
4 675-9488 Anterior board support 1
5 203-6009 Handle aluminium 1
6 375-9498 Screw 4.8 x 9.5 self tapping 2
7 203-6010 Handle joint 1
8 999-0740 Nut M5-.8 hex stainless steel 6
9 375-9499 Nut M6 inox 1
10 189-1462 Washer 5 x 14 inch 6
11 203-6011 Handle support 1
12 675-9489 Display panel decal 1
13 203-6013 Transparent dashboard protection 1
14 203-6014 Mousse board 1
15 375-9501 Left hand paddle blade 1
16 675-9490 Base board 1
17 675-9485 Screw M3.5-10 15
18 375-9502 Main board 1
19 203-6018 Spring touch 4
20 203-6019 Paddle activation 1
21 375-9503 Right hand paddle blade 1
22 675-9491 Board 1
23 203-6022 Spring paddle 1
25 203-6023 Support handle 1
26 203-6024 Screw M6 x 40 2
27 203-6025 Handle pin 18
28 375-9504 On-off button block 1
29 375-9499 Nut M6 inox 4
30 203-6028 Support 1
31 203-6029 Handle rack 1
32 203-6030 Articulation handle spring block 1
33 375-9506 Washer D. 14 1
34 375-9507 Lever 1
35 203-1286 Washer D6 2
36 375-9509 Screw M6-16 2
37 N/A Not available 2 (Screw KN1038 5X16 -T20)
38 675-9492 Screw M3 x 8 UNI9707 Zinc 3
39 675-9493 Rear board support 1
40 675-9494 Anterior Squeegee lever 1
41 675-9495 Outlet handle support 1
42 675-9496 Outlet handle covering 1
43 375-9510 Screw M4-40 2
44 375-9511 Handle rod 1
45 675-9497 Outlet handle cap 1
46 375-9512 Microswitch 1
47 203-6040 Support 1
48 375-9513 Screw 6 x 16 4
49 675-9498 Display wiring 1
