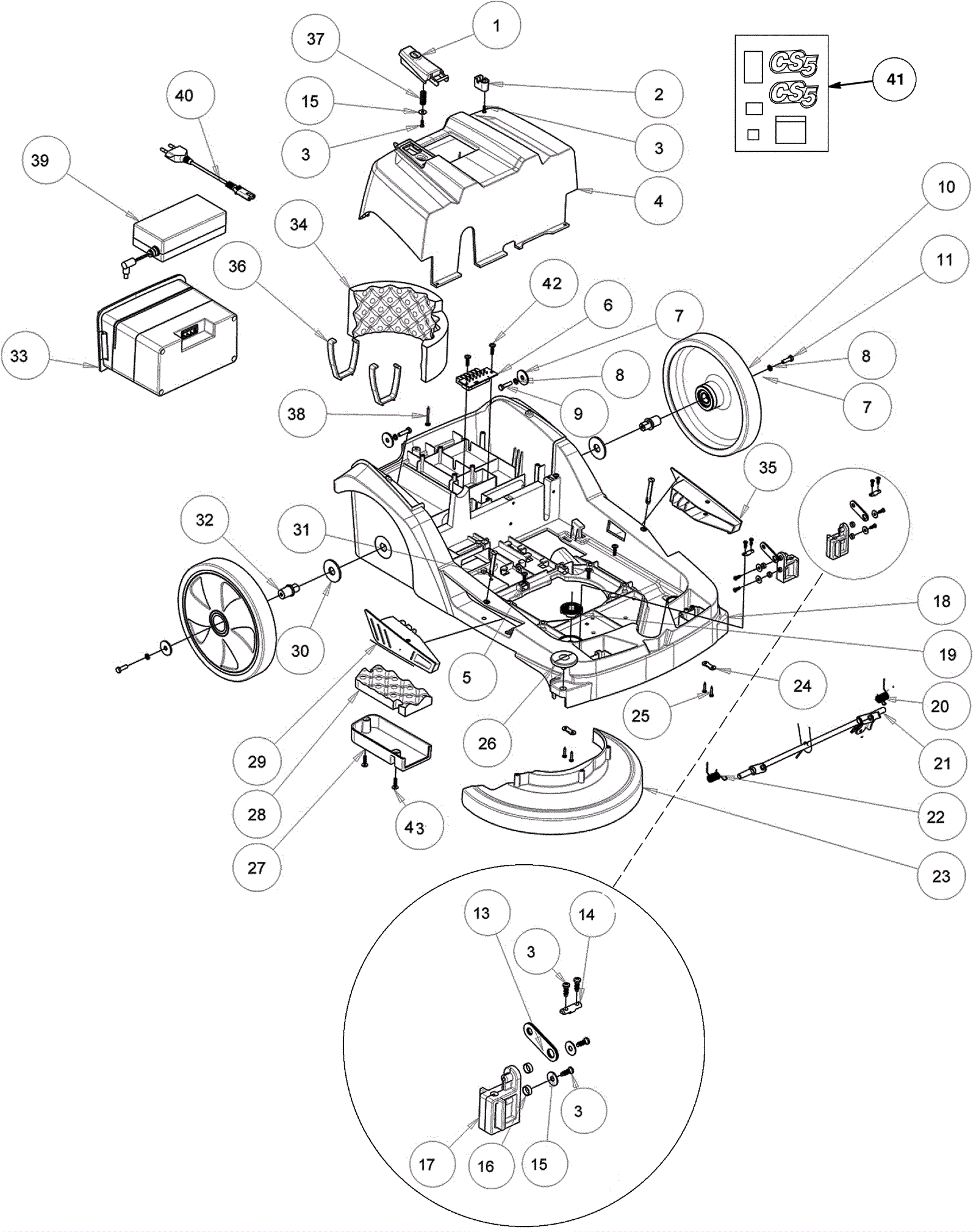

CS5 Frame and Battery Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-9478 On-off switch $4.36 1 usually ships 10-16 days
2 203-5976 Connect bracket $1.58 1 usually ships 10-12 days
3 675-9485 Screw M3.5-10 $15.51 10 usually ships 10-16 days
4 675-9486 Rear crankcase $26.84 1 usually ships 10-16 days
5 375-9479 Screw 4 x 16 $3.96 9 usually ships 10-16 days
6 203-5978 36V wiring $78.10 1 usually ships 10-12 days
7 203-5979 Washer 5 x 20 inox $15.51 4 usually ships 10-12 days
8 375-9480 Washer D. 5 inox $2.90 4 usually ships 10-16 days
9 375-9481 Screw M5 x 20 $3.96 2 usually ships 10-16 days
10 375-9482 Wheel $24.75 2 usually ships 10-16 days
11 375-9483 Screw M5 x 16 inox $0.50 2 ships same day
13 203-5982 Front squeegee bracket $0.99 2 usually ships 10-12 days
14 203-5983 Shaft $6.05 2 usually ships 10-12 days
15 203-5800 Washer 4x12 steel inox $2.90 5 usually ships 10-12 days
16 203-5984 Spacer $4.22 4 usually ships 10-12 days
17 375-9484 Rear squeegee support $17.93 2 usually ships 10-16 days
18 675-9487 Frame $113.96 1 usually ships 10-16 days
19 375-9485 Solution tank filter $10.34 1 usually ships 10-16 days
20 203-5988 Right hand floor wiper spring $2.51 1 usually ships 10-12 days
21 203-5989 Lever $27.72 1 usually ships 10-12 days
22 203-5990 Left hand floor wiper spring $2.51 1 usually ships 10-12 days
23 375-9486 Crankcase brush $23.21 1 usually ships 10-16 days
24 203-5992 Plate $1.72 2 usually ships 10-12 days
25 675-9485 Screw M3.5-10 $15.51 4 usually ships 10-16 days
26 375-9487 Front squeegee wheel $15.84 1 usually ships 10-16 days
27 375-9488 Cover $19.80 1 usually ships 10-16 days
28 203-5996 Insulator $22.11 1 usually ships 10-12 days
29 375-9489 Right hand lever $19.58 1 usually ships 10-16 days
30 203-5998 Washer D.12 x 36 inox $2.90 2 usually ships 10-12 days
31 203-5999 Pin $1.72 2 usually ships 10-12 days
32 203-6000 Shaft $9.24 2 usually ships 10-12 days
33a 375-9490 36V 5.5Ah lithium ion battery $744.10 1 ships same day
33b 375-9491 36V 8.25Ah lithium ion battery $917.10 1 usually ships 10-16 days
34 203-6002 Isolator $23.10 1 usually ships 10-12 days
35 375-9492 Left hand lever $19.47 1 usually ships 10-16 days
36 203-6004 Spring $19.14 2 usually ships 10-12 days
37 203-6005 On/off spring $1.32 1 usually ships 10-12 days
38 203-6006 Screw 3 1/2 x 32 $3.96 1 usually ships 10-12 days
39 375-9493 Battery charger $120.56 1 usually ships 10-16 days
40 375-9494 120V charger power cord $33.44 1 usually ships 10-16 days
41 375-9495 Decal kit $83.82 1 usually ships 10-16 days
42 375-9498 Screw 4.8 x 9.5 self tapping $3.96 2 usually ships 10-16 days
43 203-6068 Screw 4 x 16 $3.96 2 usually ships 10-12 days
