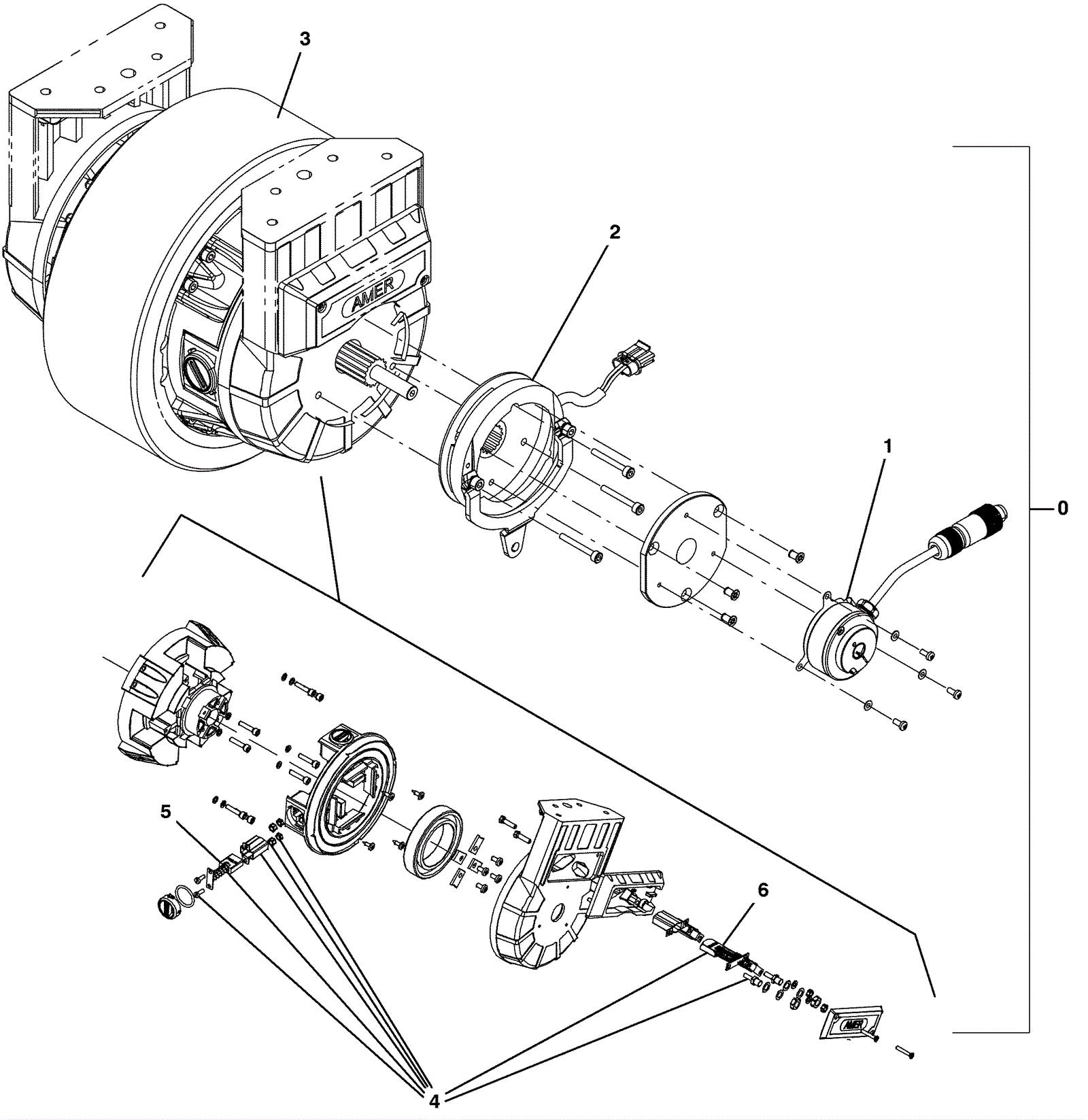

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
375-7722
|
250mm 24VDC drive wheel |
1 |
(includes 1-6) |
|
1 |
375-7795
|
Traction encoder |
1 |
|
|
2a |
375-7796
|
Parking brake kit |
1 |
(includes 2b-2e) |
|
2b |
175-8753
|
Female connector |
1 |
|
|
2c |
175-8756
|
Male and female secondary lock |
1 |
|
|
2d |
275-8096
|
Female terminal |
2 |
|
|
2e |
275-8097
|
Wire seal |
2 |
|
|
3 |
375-7797
|
Wheel kit (blue) |
1 |
|
|
4 |
175-5371
|
Carbon and motor brush kit |
1 |
|
|
5a |
275-4972
|
Carbon brush kit (pkg of 4) |
1 |
(includes 5b) |
|
5b |
275-4973
|
Carbon brush (sold individually) |
4 |
|
|
6a |
275-4974
|
Motor brush kit (pkg of 2) |
1 |
(includes 6b) |
|
6b |
275-8262
|
Motor brush (sold individually) |
2 |
|
|
