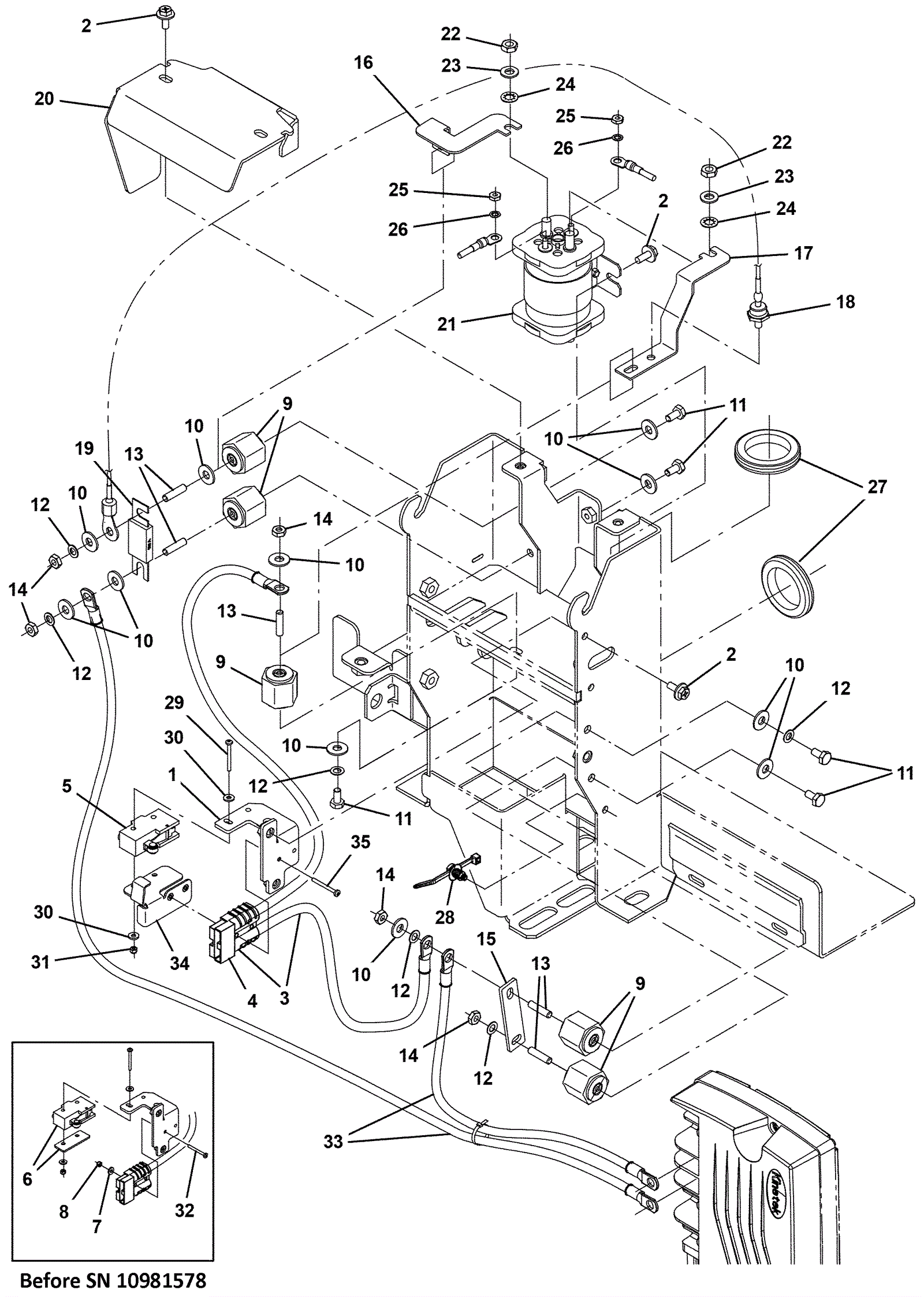

Electrical Assembly

#PartDescription ReqNotesAvailability
1 375-7771 Connector bracket weldment 1
2 999-1383 Screw M6-1 x 16mm hex head stainless steel 6
3 275-8222 Charger harness 1 (includes 4)
4 991-9284 50amp charger plug SB50 with pins (red) 2
5 375-7772 Snap switch 1
6 675-9468 Switch kit 1 (before SN 10981578)
7 999-0377 Washer 6 SAE flat plain finish 2 (before SN 10981578)
8 999-1161 Nut M3-.5 hex nylock stainless steel 2 (before SN 10981578)
9 175-3226 Insulated stand off 5
10 999-0123 Washer 1/4 SAE flat zinc plated 10
11 175-9950 Bolt 1/4-20 x 1/2 hex head nylon lock 5
12 999-0238 Washer 1/4 internal star lock zinc plated 5
13 275-8221 Rod 1/4-20 full thread 5
14 999-0181 Nut 1/4-20 hex jam plain finish 5
15 375-7774 Busbar (Tennant Industrial) 1
16 375-7775 Busbar (Tennant Industrial) 1
17 375-7776 Busbar (Tennant Industrial) 1
18 375-7777 Electrical harness 1
19 275-1438 100amp fuse 1
20 375-7778 Contactor cover 1
21 375-7779 24V 200amp contactor 1
22 999-0763 Nut 5/16-24 hex jam plain finish 4
23 275-5475 Washer M8-.4 x 1.6mm brass 4
24 999-1053 Washer 5/16 internal star lock stainless steel 4
25 275-8219 Nut 10-32 hex head stainless steel 2
26 999-1026 Washer #10 internal lock stainless steel 2
27 275-0543 Rubber grommet 2
28 275-5197 Fir tree clip 1
29 175-3245 Screw 4mm-.7 x 30 pan head 2
30 999-0412 Washer #8 SAE flat 4
31 999-0954 Nut M4-.7 nylon insert lock stainless steel 2
32 375-7780 Screw M3-.5 pan head stainless steel 2 (before SN 10981578)
33 375-7781 04 gauge electrical cable 1
34 675-9515 Guide bracket assembly 1 (after SN 10981577)
35 275-8223 SCREW, PAN, PHL, 06-32 X 1.00, G1 (Tennant Industrial) 2 (after SN 10981577)
