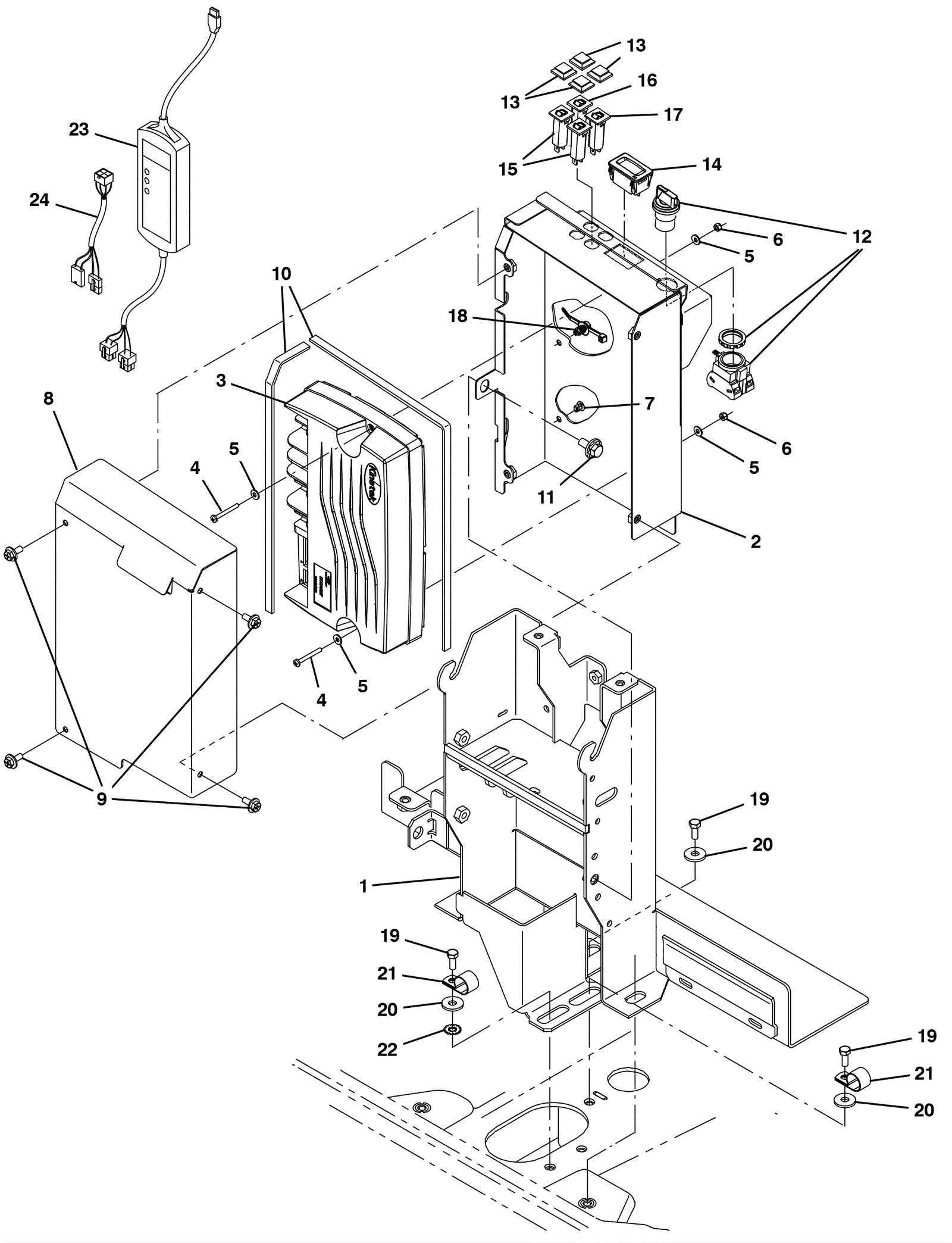

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-7763
|
Actuator support weldment (Tennant Industrial) |
1 |
|
|
2 |
375-7764
|
VCU mount panel weldment |
1 |
|
|
3a |
375-7765
|
Tennant kinetek (wet/agm) |
1 |
(AGM batteries) (requires Tennant True service or an authorized Tennant service provider) |
|
3b |
675-9514
|
Kinetek (TPPL batteries) |
1 |
(TPPL batteries) (requires Tennant True service or an authorized Tennant service provider) |
|
3c |
675-9999
|
Tennant Kinetek (Roy Pow lithium) |
1 |
(Roy Pow lithium batteries) |
|
4 |
175-3245
|
Screw 4mm-.7 x 30 pan head |
2 |
|
|
5 |
999-0266
|
Washer #8 SAE flat stainless steel |
4 |
|
|
6 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
2 |
|
|
7 |
275-7625
|
Plastic clip |
1 |
|
|
8 |
375-7766
|
VCU cover plate |
1 |
|
|
9 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
4 |
|
|
10 |
275-6617
|
3 foot adhesive rubber seal |
1 |
|
|
11 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
1 |
|
|
12 |
375-7767
|
Rotary switch |
1 |
|
|
13 |
275-2596
|
Circuit breaker boot (Tennant Industrial) |
1 |
|
|
14 |
275-9900
|
Hour meter |
1 |
|
|
15 |
375-0170
|
Circuit breaker |
2 |
|
|
16 |
275-9986
|
10amp circuit breaker (Tennant Industrial) |
1 |
|
|
17a |
275-7846
|
20amp circuit breaker (Tennant Industrial) |
1 |
(before SN 10962698) |
|
17b |
275-9986
|
10amp circuit breaker (Tennant Industrial) |
1 |
(after SN 10962697) |
|
18 |
275-5197
|
Fir tree clip |
1 |
|
|
19 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
5 |
|
|
20 |
175-7920
|
Washer M8 flat stainless steel |
5 |
|
|
21 |
175-2260
|
P clamp |
2 |
|
|
22 |
175-2893
|
Washer 5/16 internal/external locking |
1 |
|
|
23a |
375-7768
|
Control tool kit |
1 |
(includes 23b and 24) |
|
23b |
375-7769
|
Control harness |
1 |
|
|
24 |
375-7770
|
Electric harness |
1 |
|
|
