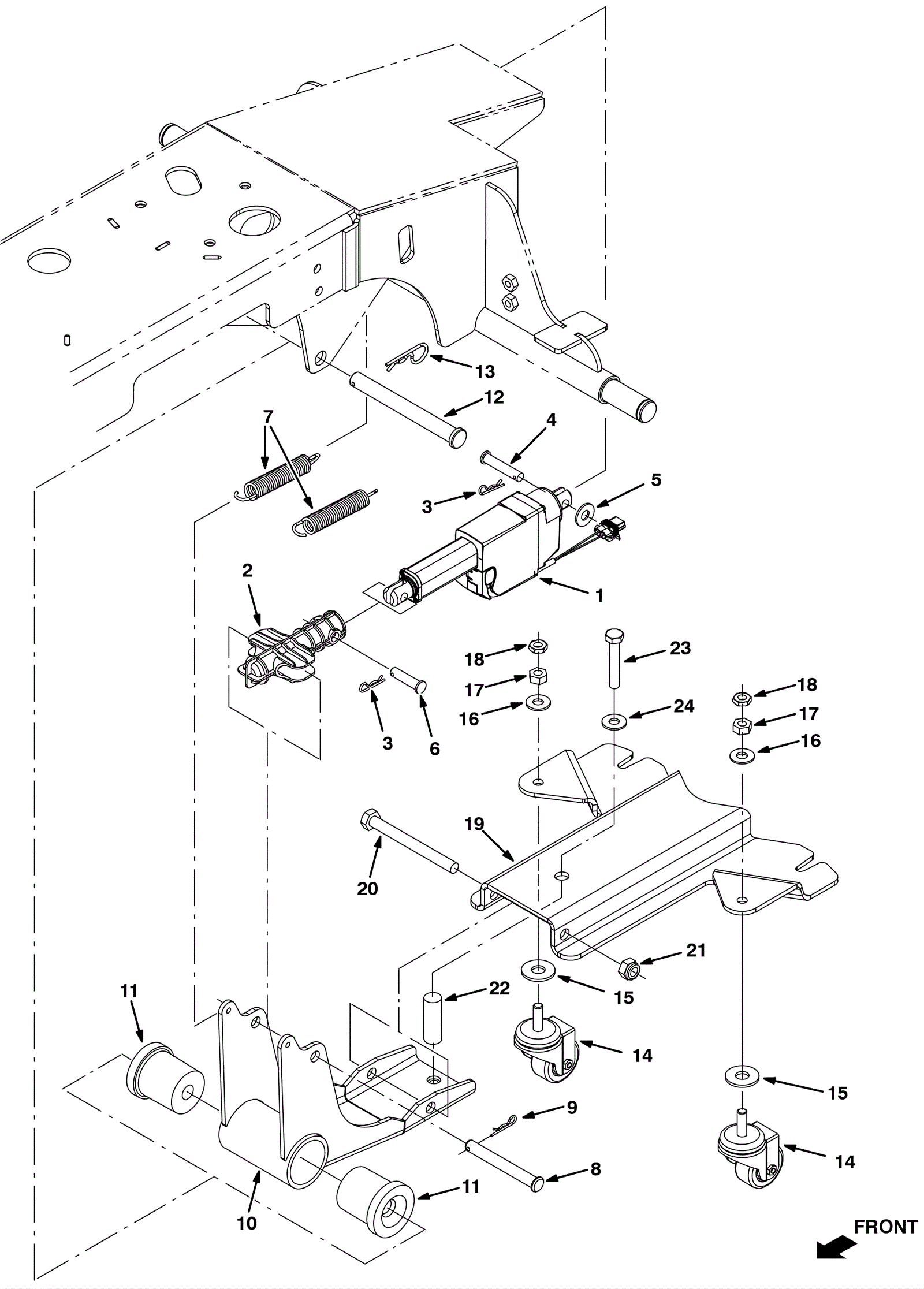

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-7142
|
Actuator |
1 |
(includes item 2) |
|
2 |
275-9412
|
Actuator spring housing |
1 |
|
|
3 |
175-2113
|
Cotter pin |
2 |
|
|
4 |
275-8195
|
Clevis pin |
1 |
|
|
5 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
1 |
|
|
6 |
275-8112
|
Clevis pin |
1 |
|
|
7 |
275-8197
|
Extension spring |
2 |
|
|
8 |
275-8198
|
Clevis pin |
1 |
|
|
9 |
175-2113
|
Cotter pin |
1 |
|
|
10 |
275-8199
|
Arm weldment |
1 |
|
|
11 |
275-8200
|
Flex bushing |
2 |
|
|
12 |
275-8114
|
Clevis pin |
1 |
|
|
13 |
175-2106
|
Cotter hair pin |
1 |
|
|
14 |
275-8046
|
Swivel caster wheel |
2 |
|
|
15 |
999-0114
|
Washer 1/2 SAE flat |
2 |
|
|
16 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
|
17 |
275-0332
|
NUT, HEX, STD, M10 X 1.50, SS |
2 |
|
|
18 |
999-1625
|
Nut M10-1.5 hex jam stainless steel |
2 |
|
|
19 |
275-8201
|
Lower squeegee arm channel |
1 |
|
|
20 |
275-0463
|
Screw M12-1.75 x 120mm hex head |
1 |
|
|
21 |
999-0519
|
Nut M12-1.75 nylon insert lock stainless steel |
1 |
|
|
22 |
275-8202
|
Compression spring |
1 |
|
|
23 |
175-0792
|
Bolt M10-1.5 x 60mm hex head stainless steel |
1 |
|
|
24 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
1 |
|
|
