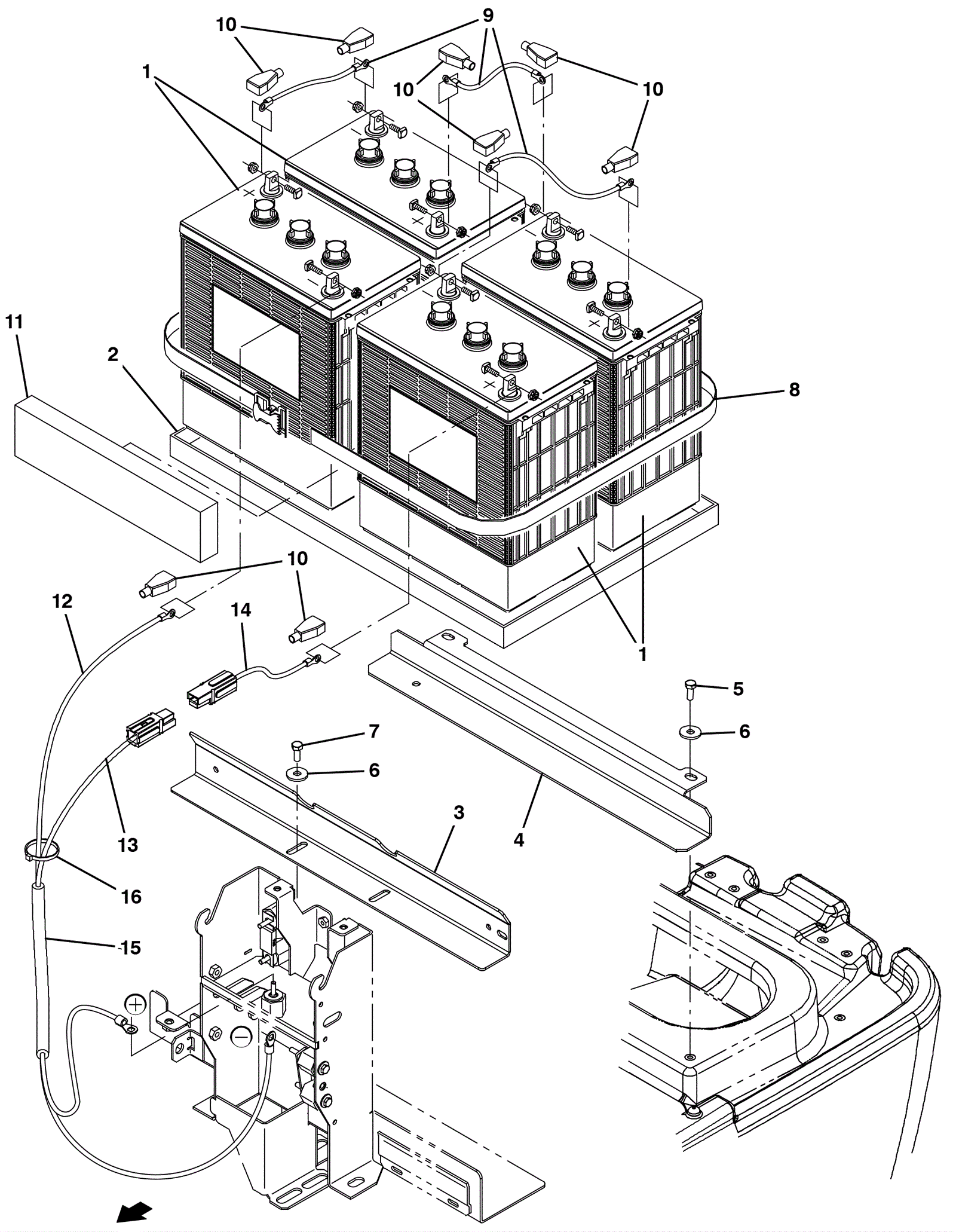

T7AMR Battery Assembly

#PartDescriptionPriceReqNotesAvailability
1 162-0005 6V 305Ah wet battery (SNSR) $412.50 4 ships same day
2 275-9408 Battery tray $102.60 1 ships same day
3 275-4959 Battery bracket $42.00 1 usually ships 1-5 days
4 275-8192 Battery support angle $55.80 1 usually ships 5-16 days
5 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 2 ships same day
6 175-7920 Washer M8 flat stainless steel $3.00 4 ships same day
7 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 2 ships same day
8 175-2130 Strap $30.30 1 ships same day
9 998-0010 Battery jumper cable - ring type (red) $3.87 3 ships same day
10 175-6885 Boot (black) $5.80 8 ships same day
11 175-1352 Battery insert $14.00 1 ships same day
12 175-9591 Wire (black) $32.30 1 usually ships 5-16 days
13 275-0732 Wire assembly (red) $58.00 1 ships same day
14a 275-0733 Wire assembly (red) $50.70 1 (includes 14b and 14c) ships same day
14b 275-9406 Anderson connector $16.30 1 ships same day
14c 275-9407 Anderson contact terminal $7.50 1 ships same day
15 275-8193 1 foot nylon sleeve $23.90 1 usually ships 5-16 days
16 175-2202 Nylon wire tie $3.00 3 ships same day
