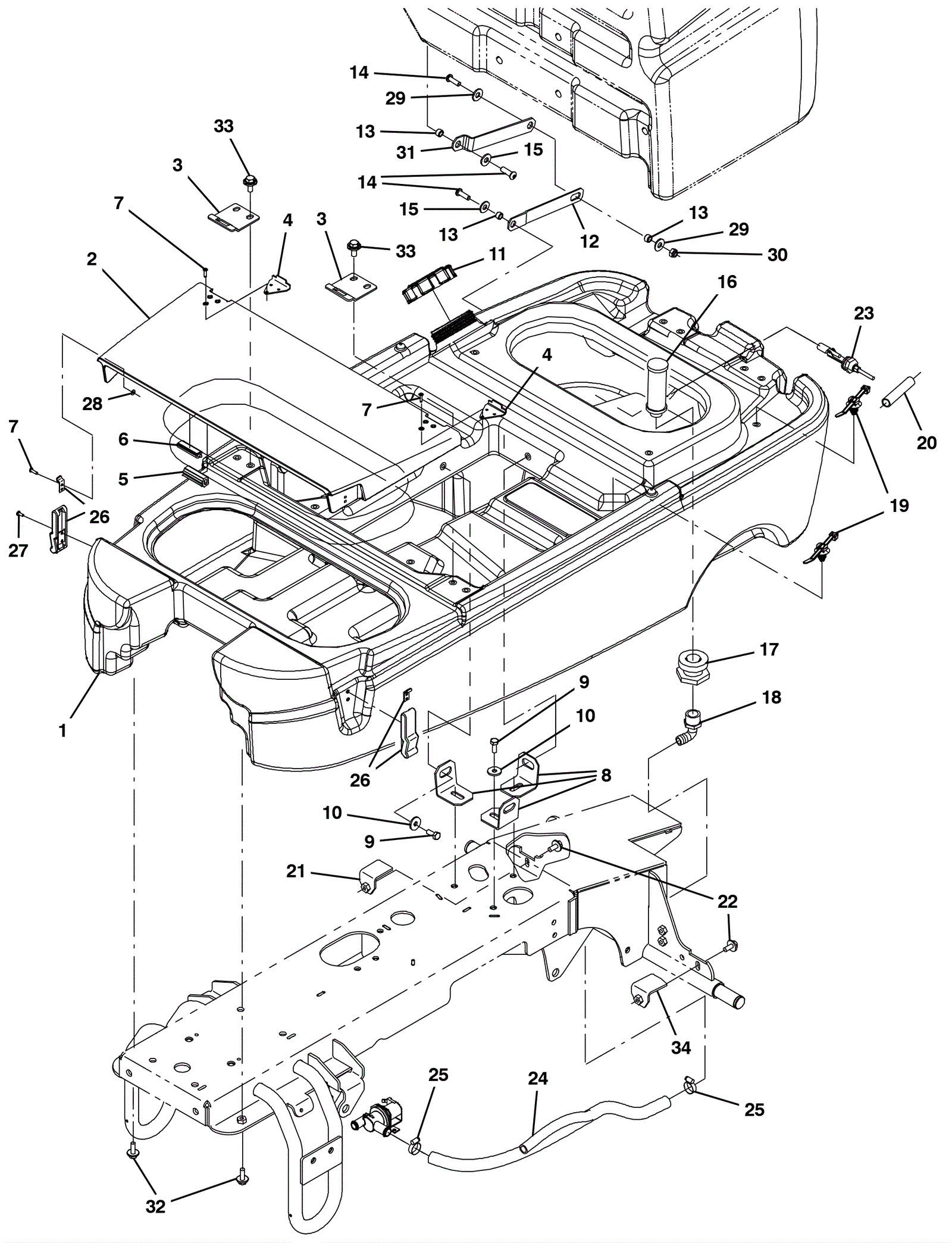

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-8177
|
Solution tank with decal |
1 |
|
|
2 |
275-8178
|
Solution tank cover |
1 |
|
|
3 |
275-8179
|
Catch |
2 |
|
|
4 |
275-8180
|
Plate |
2 |
|
|
5 |
275-8181
|
8 foot closed cell bulb seal |
1 |
|
|
6 |
275-8182
|
8 foot closed cell bulb seal |
1 |
|
|
7 |
275-9403
|
Blind rivet |
10 |
|
|
8 |
275-8184
|
Tank mounting bracket |
3 |
|
|
9 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
6 |
|
|
10 |
175-7920
|
Washer M8 flat stainless steel |
6 |
|
|
11 |
275-8185
|
Tank cap |
1 |
|
|
12 |
275-8186
|
Tank arm |
1 |
|
|
13 |
175-2263
|
Sleeve |
5 |
|
|
14 |
275-0443
|
Screw M8-1.25 x 25 button head stainless steel |
3 |
|
|
15 |
275-8068
|
Washer 1/2 flat steel |
2 |
|
|
16 |
275-8187
|
Solution strainer |
1 |
|
|
17 |
175-9552
|
Plastic fitting |
1 |
|
|
18 |
175-5256
|
Plastic fitting |
1 |
|
|
19 |
275-5197
|
Fir tree clip |
2 |
|
|
20 |
475-1029
|
CONDUIT, AFMKT, NYL, .50D, 01FT |
1 |
|
|
21 |
375-6010
|
Tank mounting bracket (Tennant Industrial) |
1 |
|
|
22 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
2 |
|
|
23 |
175-9554
|
Float switch |
1 |
|
|
24 |
275-8188
|
Hose |
1 |
|
|
25 |
175-6081
|
Hose clamp |
2 |
|
|
26 |
175-3369
|
Hood latch |
2 |
|
|
27 |
999-0521
|
Screw M4-.7 x 12mm pan head phillips zinc |
4 |
|
|
28 |
275-9752
|
Washer .17 flat stainless steel |
4 |
|
|
29 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
|
30 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
1 |
|
|
31 |
275-9395
|
Tank arm |
1 |
|
|
32 |
999-9082
|
Screw M8-1.25 x 25mm hex head stainless steel |
2 |
|
|
33 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
4 |
|
|
34 |
375-7742
|
Tank mount bracket (Tennant Industrial) |
1 |
|
|
