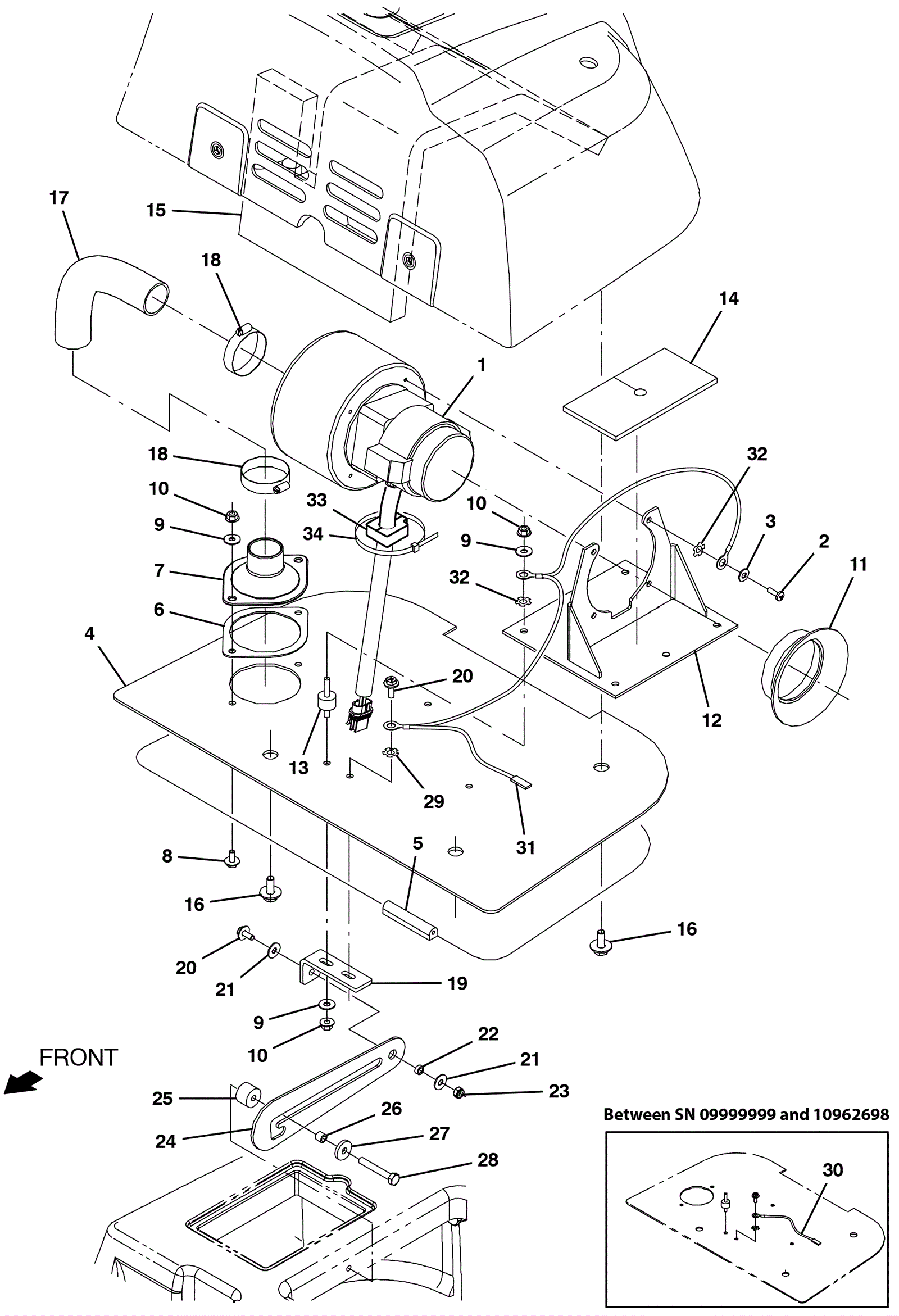

T7AMR Vacuum Fan Assembly

#PartDescriptionPriceReqNotesAvailability
1a 275-8003 24V 3 stage vacuum motor $242.98 1 usually ships 14-22 days
1b 991-1253 24V 3 stage vacuum motor peripheral w/ intake $275.55 1 (NON-OEM) usually ships 14-21 days
2 275-8168 Screw M5 x 16mm pan head $4.36 4 ships same day
3 999-0006 Washer 3/16 flat zinc plated $0.99 4 ships same day
4 275-8169 Mounting plate $123.31 1 usually ships 10-16 days
5 275-8049 Seal $19.47 1 ships same day
6 275-8170 Adaptor gasket $5.50 1 usually ships 10-16 days
7 275-8171 Hose adaptor $11.22 1 usually ships 10-16 days
8 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 2 ships same day
9 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 9 ships same day
10 999-6694 Nut M6-1 hex serrated flange stainless steel $0.99 9 ships same day
11 275-8172 Motor seal $10.89 1 ships same day
12 275-8173 Mounting bracket $123.31 1 ships same day
13 675-9898 Vibration isolator $13.75 3 ships same day
14 275-9397 Motor insulation $7.04 1 ships same day
15 375-7739 Vacuum fan insulation $25.96 1 ships same day
16 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.49 4 ships same day
17 275-8176 Vacuum motor exhaust hose 1 1/2 x 8 inch $15.40 1 usually ships 10-16 days
18 997-2000 Hose clamp $2.37 2 ships same day
19 275-9399 Bracket $69.19 1 usually ships 10-16 days
20 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 2 ships same day
21 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
22 175-0777 P/M sleeve $5.50 1 usually ships 10-16 days
23 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 1 ships same day
24 275-9400 Bracket arm $41.03 1 usually ships 10-16 days
25 175-6685 Spacer $4.49 1 usually ships 10-16 days
26 175-0152 Spacer $5.15 1 usually ships 10-16 days
27 175-1097 Washer flat stainless steel $5.50 1 usually ships 10-16 days
28 175-0574 Bolt 6mm-1 x 35 hex head $4.49 1 usually ships 10-16 days
29 275-0288 Washer 1/4 internal-external lock $4.36 1 ships same day
30 375-7740 Electrical harness $17.71 1 (SN from 10000000 and 10962697) ships same day
31 375-7741 Electrical harness $48.07 1 (after SN 10962697) usually ships 10-16 days
32 275-0288 Washer 1/4 internal-external lock $4.36 2 ships same day
33 375-7728 Inductor (Tennant Industrial) $20.67 1 usually ships 10-16 days
34 175-2202 Nylon wire tie $4.49 1 ships same day
