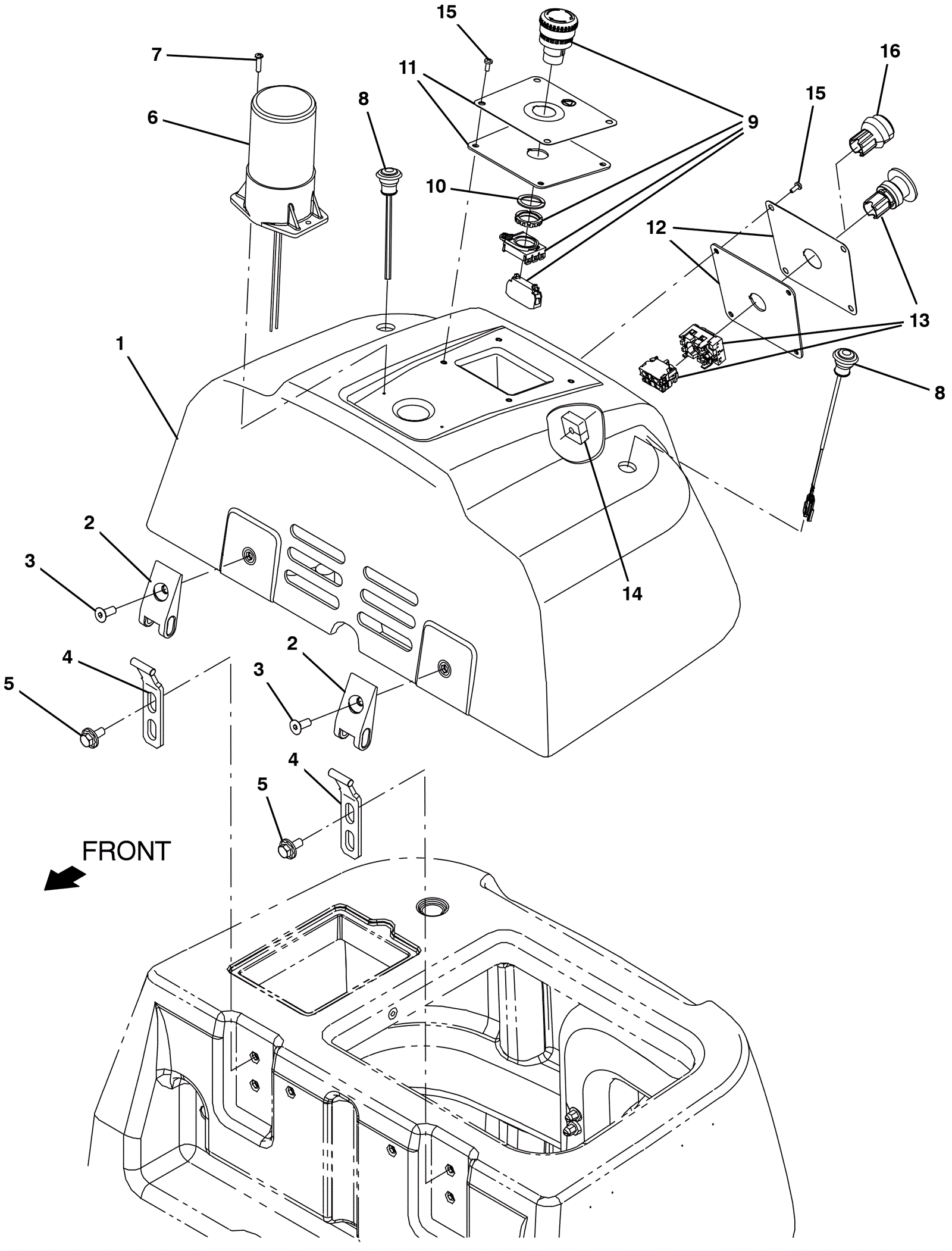

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-7733
|
Trimmed recovery tank cover |
1 |
|
|
2 |
175-2271
|
Leaf hinge |
2 |
|
|
3 |
999-1324
|
Screw M8-1.25 x 20mm flat head stainless steel |
2 |
|
|
4 |
275-8152
|
Hinge |
2 |
|
|
5 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
4 |
|
|
6a |
275-8242
|
Caution light |
1 |
|
|
7a |
999-1352
|
Screw 10-14 x 3/4 phillips pan head plastic thread rolling |
2 |
(SN from 10000000-10961819) |
|
7b |
175-8791
|
Screw M4 x 7 x 8 truss head |
2 |
(after SN 10961819) |
|
8a |
375-7685
|
Turn signal blinker |
2 |
(oem) |
|
8b |
288-0087
|
Turn signal blinker |
2 |
(alternative) |
|
9 |
375-7694
|
Emergency stop switch |
1 |
|
|
10 |
375-7695
|
E-stop lock ring |
1 |
|
|
11 |
375-7734
|
E-stop plate kit decal |
1 |
|
|
12 |
375-7735
|
Play/Pause plate kit decal |
1 |
|
|
13 |
375-7736
|
Start-pause button assembly |
1 |
|
|
14 |
375-7737
|
Foam seal |
1 |
|
|
15 |
175-8791
|
Screw M4 x 7 x 8 truss head |
8 |
|
|
16 |
375-7738
|
Low profile start-pause switch |
1 |
|
|
