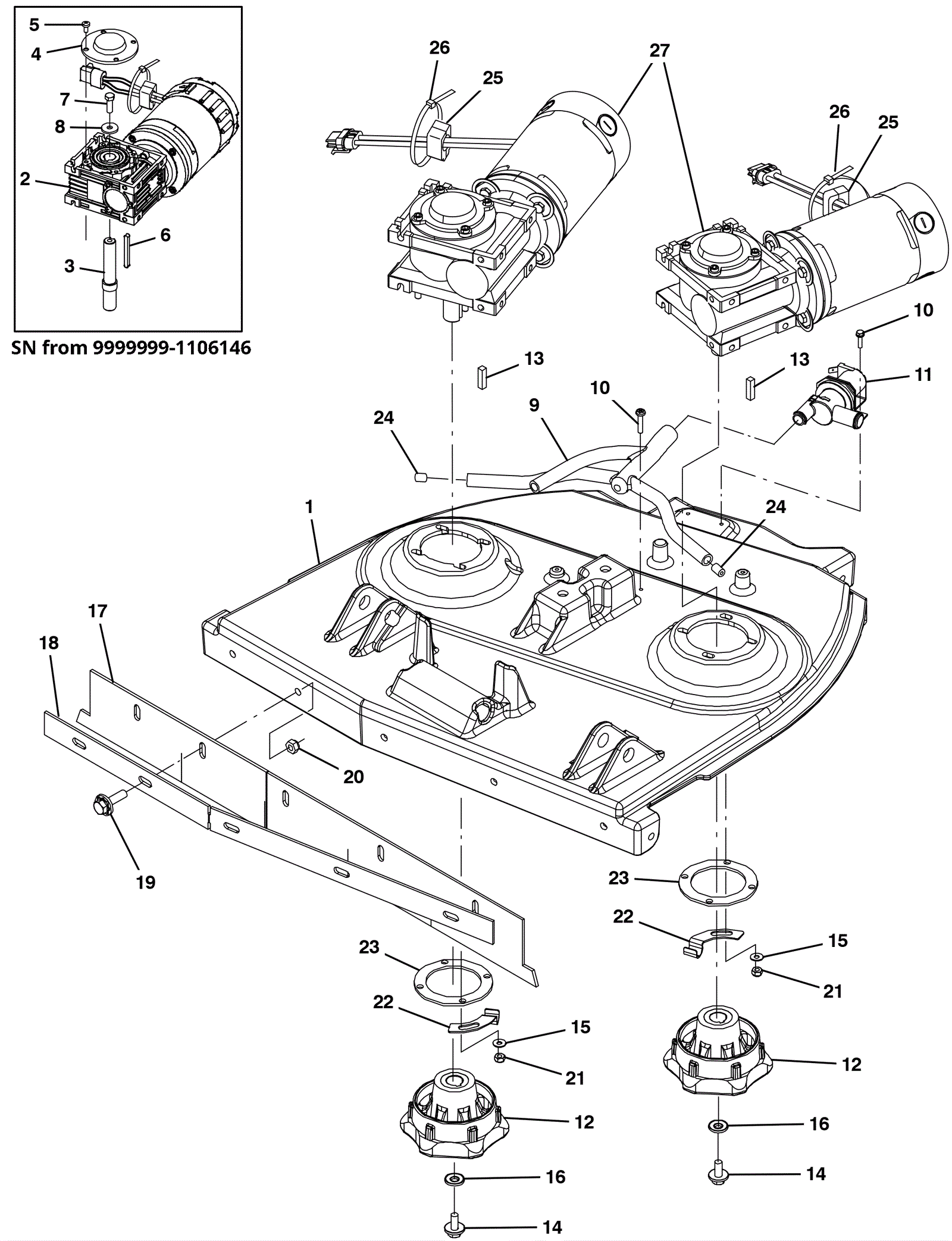

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
275-8120
|
26 inch scrub head |
$1,590.60
|
1 |
|
ships same day |
2a |
275-6053
|
24V brush motor and gear box assembly |
$478.39
|
2 |
(includes 2b-8) (SN from 9999999-11006146) |
usually ships 14-22 days |
2b |
275-8123
|
Carbon brush kit |
$194.37
|
1 |
(SN from 9999999-11006146) |
ships same day |
2c |
275-8124
|
Safety hook |
$6.05
|
1 |
(SN from 9999999-11006146) |
usually ships 10-16 days |
2d |
275-8125
|
Electric motor brush cover |
$10.12
|
1 |
(SN from 9999999-11006146) |
ships same day |
3 |
375-7724
|
Brush drive shaft (OBSOLETE) |
Call for price
|
1 |
(SN from 9999999-11006146) |
usually ships 10-16 days |
4 |
375-7725
|
Motor cap (OBSOLETE) |
Call for price
|
1 |
(SN from 9999999-11006146) |
usually ships 10-16 days |
5 |
999-1041
|
Screw M6-1 x 12mm pan head phillips stainless steel |
$0.99
|
4 |
(SN from 9999999-11006146) |
ships same day |
6 |
275-8128
|
Square keyway |
$7.70
|
1 |
(SN from 9999999-11006146) |
ships same day |
7 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
$1.85
|
1 |
(SN from 9999999-11006146) |
ships same day |
8 |
175-7920
|
Washer M8 flat stainless steel |
$4.09
|
1 |
(SN from 9999999-11006146) |
ships same day |
9 |
275-8131
|
Solution manifold |
$123.09
|
1 |
|
ships same day |
10 |
999-9106
|
Screw M4-.7 x 16mm hex head stainless steel |
$0.99
|
3 |
|
ships same day |
11a |
275-1526
|
24V solution solenoid valve |
$109.78
|
1 |
|
ships same day |
11b |
991-9173
|
24V solenoid valve |
$63.27
|
|
(NON-OEM) |
ships same day |
12 |
175-7021
|
Brush drive hub |
$163.79
|
2 |
|
ships same day |
13 |
175-5356
|
Square keyway |
$4.09
|
2 |
|
ships same day |
14 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
$4.09
|
2 |
|
ships same day |
15 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
$0.99
|
2 |
|
ships same day |
16 |
175-7920
|
Washer M8 flat stainless steel |
$4.09
|
2 |
|
ships same day |
17 |
275-8047
|
26 inch spray skirt |
$18.37
|
1 |
|
ships same day |
18 |
275-8129
|
26 inch skirt retainer |
$26.84
|
1 |
|
ships same day |
19 |
999-1653
|
Screw M8-1.25 x 30mm hex head stainless steel |
$4.36
|
5 |
|
ships same day |
20 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
$1.34
|
5 |
|
ships same day |
21 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
$0.99
|
8 |
|
ships same day |
22 |
275-9362
|
Hose support bracket |
$20.02
|
2 |
(ec-H2O model) |
ships same day |
23 |
275-8126
|
Support plate |
$13.20
|
2 |
|
ships same day |
24 |
375-7727
|
Plastic fitting (Tennant Industrial) |
$15.17
|
2 |
|
ships same day |
25 |
375-7728
|
Inductor (Tennant Industrial) |
$19.17
|
2 |
|
usually ships 10-16 days |
26 |
175-2202
|
Nylon wire tie |
$4.09
|
2 |
|
ships same day |
27 |
275-6053
|
24V brush motor and gear box assembly |
$478.39
|
2 |
|
usually ships 14-22 days |
