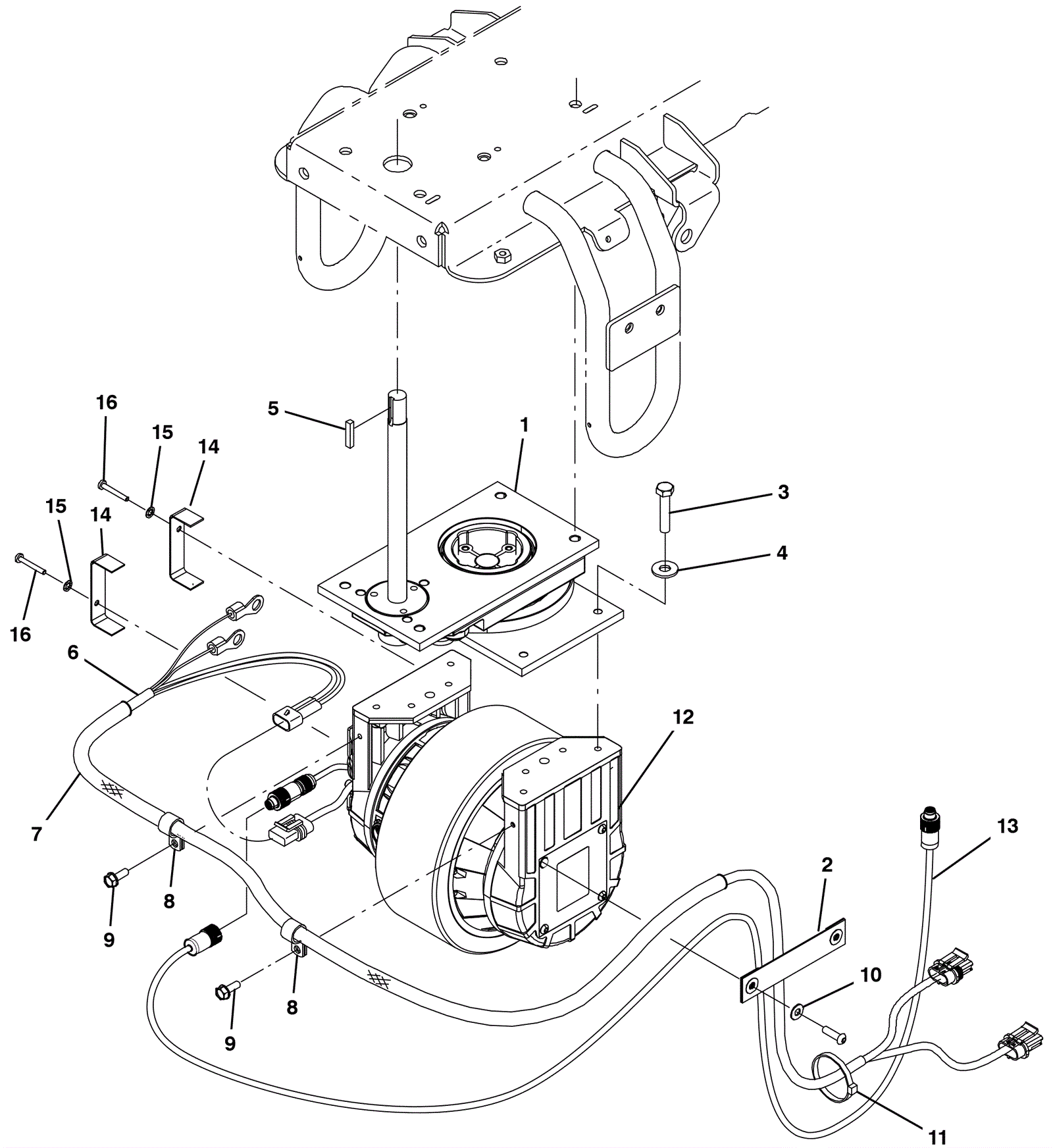

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-8091
|
Steering control assembly |
1 |
|
|
2 |
275-8095
|
Nylon strap |
1 |
|
|
3 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
4 |
|
|
4 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
4 |
|
|
5 |
175-3200
|
Square keyway |
1 |
|
|
6 |
275-7037
|
Brake harness |
1 |
|
|
7 |
275-8094
|
3 foot nylon sleeve |
1 |
|
|
8 |
175-2667
|
P clamp |
2 |
|
|
9 |
175-3166
|
Bolt M6-1 x 16mm hex head |
2 |
|
|
10 |
999-0006
|
Washer 3/16 flat zinc plated |
2 |
|
|
11 |
175-7795
|
Cable tie |
4 |
|
|
12 |
375-7722
|
250mm 24VDC drive wheel |
1 |
|
|
13 |
375-7723
|
Traction encoder cable |
1 |
|
|
14 |
275-7038
|
Cord bracket |
2 |
|
|
15 |
999-1083
|
Washer #8 internal star lock stainless steel |
2 |
|
|
16 |
999-1672
|
Screw M4-.7 x 30mm pan head phillips stainless steel |
2 |
|
|
