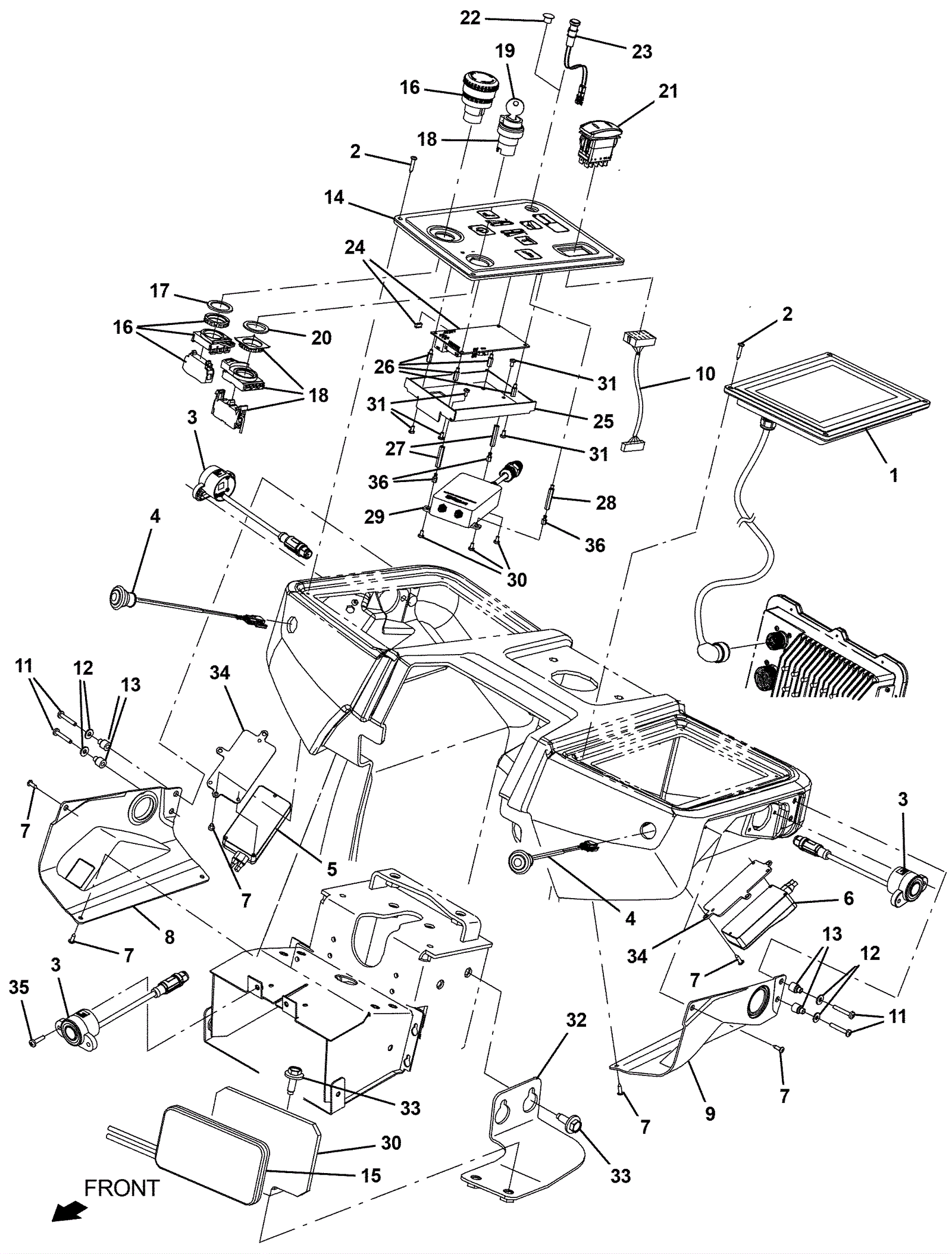

T7AMR Instrument Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1a 375-7682 Touch screen module $1,998.37 1 (oem) ships same day
1b 288-0049 Touch screen module $1,049.68 1 (alterative) ships same day
2 175-9366 Screw 8-10 x 1/2 pan head plastic $5.28 8 ships same day
3a 375-7684 2D camera $383.24 3 (oem) (requires Tennant True service or an authorized Tennant service provider) ships same day
3b 288-0095 2D camera $165.23 3 (alternative) ships same day
4 375-7685 Turn signal blinker $88.18 2 ships same day
5a 375-7686 Right hand 3D camera $1,201.31 1 (oem) (requires Tennant True service or an authorized Tennant service provider) ships same day
5b 288-0180 Right hand O3X163 3D camera $618.43 1 (alternative) ships same day
6a 375-7687 Left hand 3D camera $1,177.66 1 (oem) (requires Tennant True service or an authorized Tennant service provider) ships same day
6b 288-0179 Left hand O3x161 3D camera $618.43 1 (alternative) ships same day
7 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated $0.99 12 ships same day
8 375-7688 Right hand bezel $79.75 1 ships same day
9 375-7689 Left hand bezel $79.75 1 ships same day
10 375-7690 Harness $61.82 1 usually ships 10-16 days
11 275-4705 Screw M4-.7 x25mm pan head phillips $5.28 4 ships same day
12 999-0266 Washer #8 SAE flat stainless steel $0.99 4 ships same day
13 375-7691 Sleeve $8.36 4 ships same day
14 375-7692 Replacement membrane kit $265.10 1 usually ships 10-16 days
15 375-7693 Antenna $281.05 1 (requires Tennant True service or an authorized Tennant service provider) usually ships 10-16 days
16 375-7694 Emergency stop switch $119.79 1 ships same day
17 375-7695 E-stop lock ring $13.00 1 usually ships 10-16 days
18 375-7696 Key switch $68.09 1 (includes 19) ships same day
19 375-7697 Key (pkg of 2) (Tennant Industrial) $26.50 1 ships same day
20 375-7698 Switch lock ring $5.50 1 usually ships 10-16 days
21 375-7699 Rocker switch $116.02 1 ships same day
22 175-9227 Hole plug 19/64 $4.49 1 usually ships 10-16 days
23 275-4715 LED light $109.56 1 ships same day
24a 375-7700 Membrane controller kit $555.39 1 (requires Tennant True service or an authorized Tennant service provider) (includes 24b) (SN from 09999999 and 10962698) usually ships 10-16 days
24b 375-7703 Shunt (Tennant Industrial) $1.20 1 (between SN 09999999 and 10962698) (ec-H20 only) usually ships 10-16 days
24c 375-7702 Membrane controller kit $555.39 1 (oem) (requires Tennant True service or an authorized Tennant service provider) (includes 24d) (after SN 10962697) usually ships 10-16 days
24d 375-7703 Shunt (Tennant Industrial) $1.20 1 (after SN 10962697) (ec-H20 only) usually ships 10-16 days
25 375-7704 Circuitboard cover $107.80 1 usually ships 10-16 days
26 375-7705 M3 x 1/2 stand off hex 10mml $3.70 4 usually ships 10-16 days
27 375-7706 M3 x 1/2 stand off hex 25mml $5.83 2 usually ships 10-16 days
28 375-7707 M3 x 1/2 stand off hex 25mml $6.93 1 usually ships 10-16 days
29a 375-7708 Modem $1,387.20 1 (oem) (requires Tennant True service or an authorized Tennant service provider) usually ships 10-16 days
29b 288-0052 Modem $556.73 1 (alternative) ships same day
30 375-7709 Antenna angle (Tennant Industrial) $47.01 1 usually ships 10-16 days
31 475-7399 SCREW, PAN, PHL, M3 X 0.50 X 6, 4.8 (Tennant Industrial) $1.83 13 usually ships 10-16 days
32 375-7710 Antenna bracket weldment $83.16 1 usually ships 10-16 days
33 275-9575 SCREW, HEX, M8 X 1.25 X 25, 9.8, SEMS (Tennant Industrial) $4.17 4 ships same day
34 375-7711 Camera mounting plate $33.55 2 usually ships 10-16 days
35 999-9113 Screw M4-.7 x 16mm pan head phillips stainless steel $0.99 2 ships same day
36 375-7714 M3 x 1/2 stand off hex 8mml nylon $29.48 3 (after SN 10962697) usually ships 10-16 days
