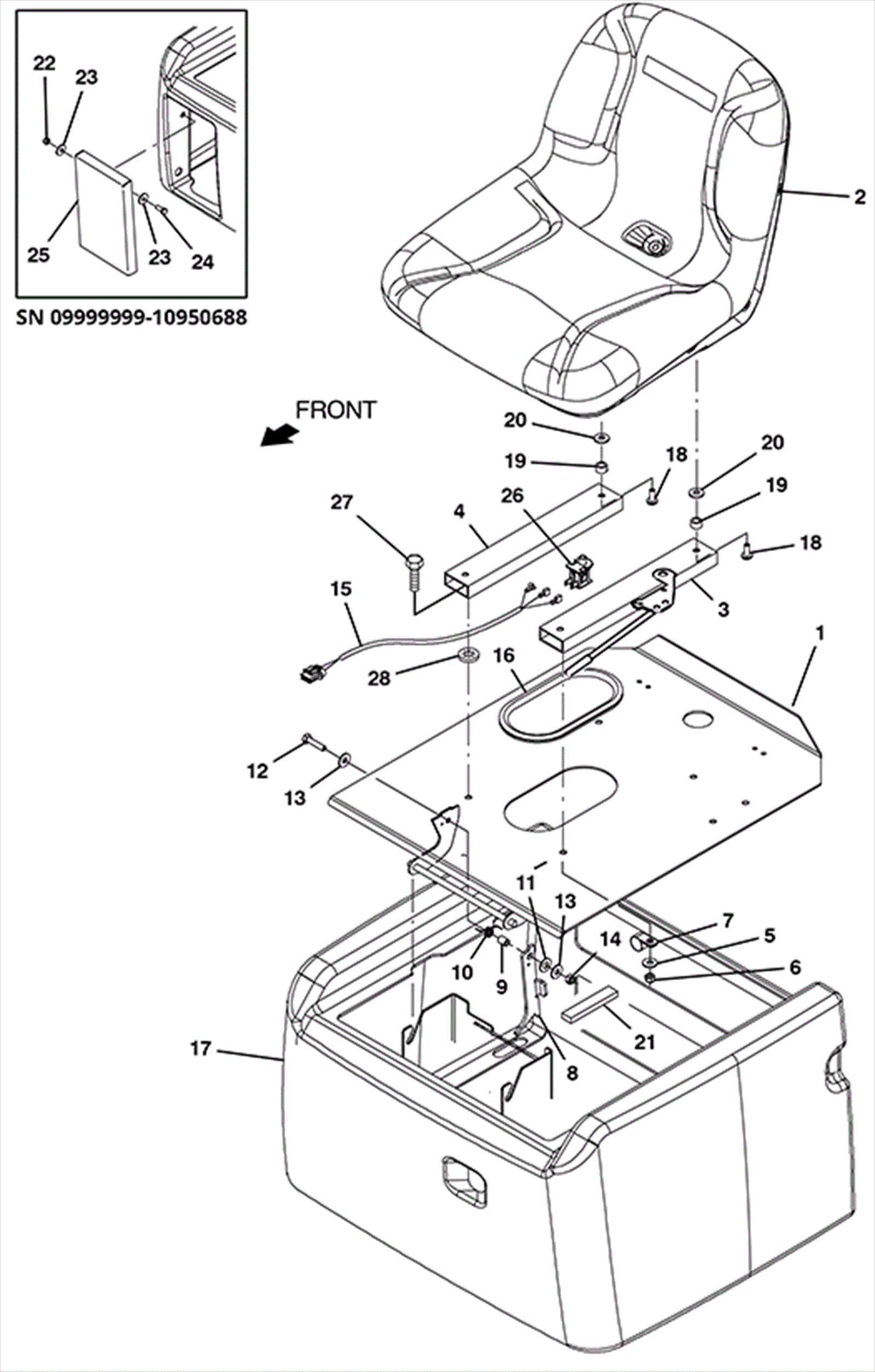

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
375-7664
|
Seat plate with decals |
1 |
|
|
1b |
375-7665
|
Seat plate with decals (AFMKT) |
1 |
|
|
2 |
275-9328
|
Seat kit (includes screw and spacer) |
1 |
|
|
3 |
275-2671
|
11 1/2 inch seat adjuster rail (Tennant Industrial) |
1 |
|
|
4 |
675-9511
|
Seat track no stud |
1 |
|
|
5 |
999-0024
|
Washer 5/16 flat stainless steel |
4 |
|
|
6 |
999-0278
|
Nut 5/16-18 nylon insert lock jam zinc plated |
4 |
|
|
7 |
175-6768
|
P clamp (Tennant Industrial) |
1 |
|
|
8 |
275-8071
|
Seat stop plate |
1 |
|
|
9 |
275-8072
|
P/M sleeve stainless steel |
1 |
|
|
10 |
275-8073
|
Torsion spring (Tennant Industrial) |
1 |
|
|
11 |
275-8074
|
Washer .44 flat nylon |
1 |
|
|
12 |
999-0786
|
Screw M8-1.25 x 35mm hex head stainless steel |
1 |
|
|
13 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
|
14 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
1 |
|
|
15 |
275-9329
|
Seat harness |
1 |
|
|
16 |
275-8075
|
Trim |
1 |
|
|
17a |
375-7667
|
Battery box cover (AFMKT) (Tennant Industrial) |
1 |
(between SN 09999999 and 10950688) |
|
17b |
375-7668
|
Battery box cover (Ech-20) (Tennant Industrial) |
1 |
(after SN 10950687) |
|
18 |
275-6610
|
Screw G5 5/16-18 x 1 1/4 hex head (Tennant Industrial) |
4 |
|
|
19 |
275-9333
|
Spacer |
4 |
|
|
20 |
175-3176
|
Washer 3/8 flat steel plated |
4 |
|
|
21 |
275-9334
|
SEAL, AFMKT, RBR, CLSD, ADH, 02FT (Tennant Industrial) |
1 |
|
|
22 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
2 |
(between SN 09999999 and 10950688) |
|
23 |
175-7920
|
Washer M8 flat stainless steel |
4 |
(between SN 09999999 and 10950688) |
|
24 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
2 |
(between SN 09999999 and 10950688) |
|
25 |
275-4941
|
Cover |
1 |
(between SN 09999999 and 10950688) |
|
26 |
275-9280
|
Seat switch |
1 |
|
|
27 |
275-3879
|
SCREW, HEX, .31-18 X 1.00, G5 (Tennant Industrial) |
4 |
|
|
28 |
675-9512
|
Bolt retention push nut |
4 |
|
|
