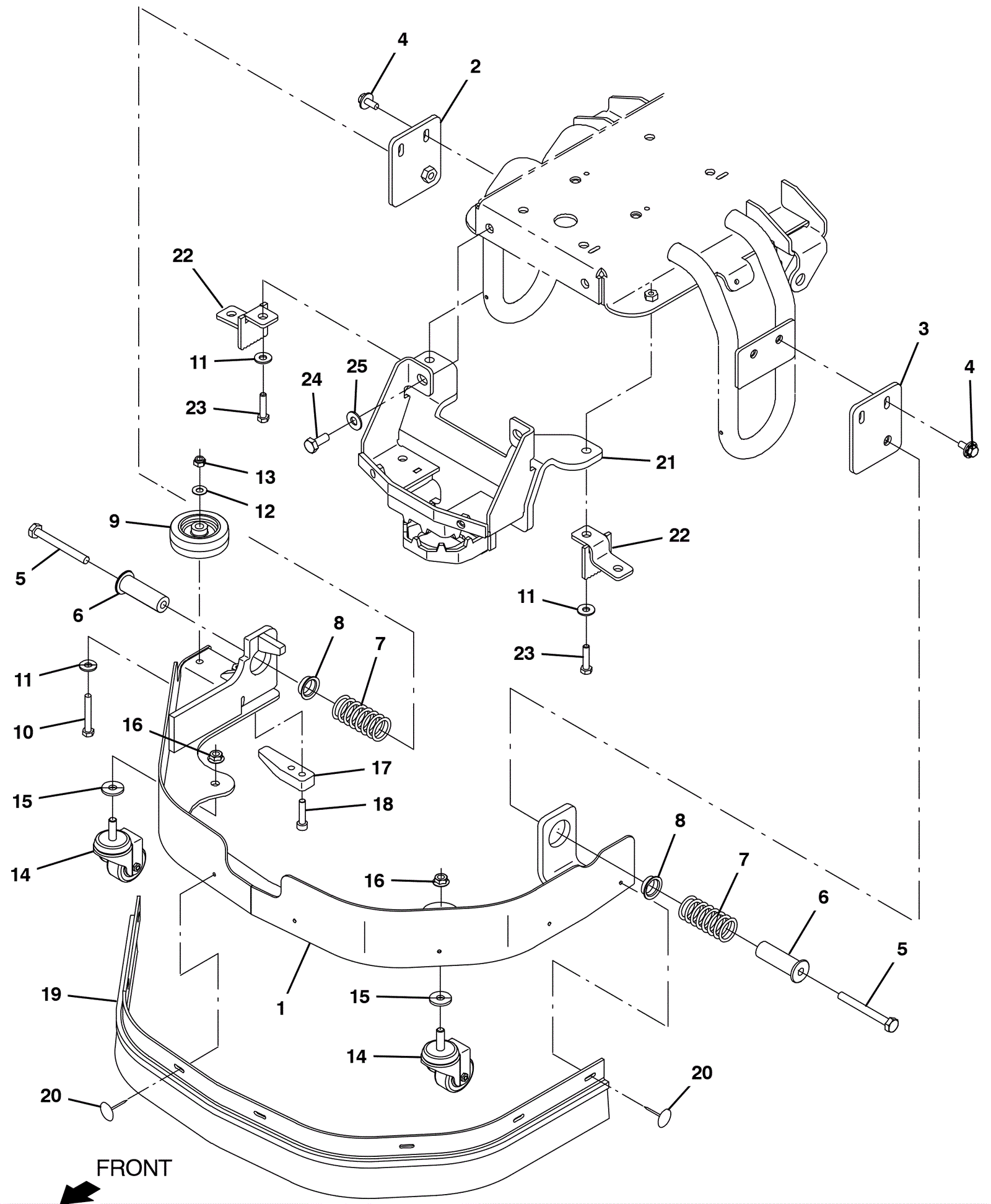

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-7654
|
Front guard weldment (Tennant Industrial) |
1 |
|
|
2 |
375-7655
|
Right hand guard plate weldment |
1 |
|
|
3 |
375-7656
|
Left hand guard plate weldment |
1 |
|
|
4 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
4 |
|
|
5 |
999-6709
|
Screw M10-1.5 x 80mm hex head stainless steel |
2 |
|
|
6 |
375-7657
|
Sleeve stainless steel |
2 |
|
|
7 |
375-7658
|
Compression spring |
2 |
|
|
8 |
375-0729
|
Flanged bushing (Tennant Industrial) |
2 |
|
|
9 |
175-0117
|
Guide wheel with bushing |
1 |
|
|
10 |
999-0788
|
Screw M8-1.25 x 55mm hex head stainless steel |
1 |
|
|
11 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
3 |
|
|
12 |
999-0024
|
Washer 5/16 flat stainless steel |
1 |
|
|
13 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
1 |
|
|
14 |
275-8046
|
Swivel caster wheel |
2 |
|
|
15 |
275-1169
|
Washer .40 x 12mm flat |
2 |
|
|
16 |
175-0791
|
Nut M10 x 1.5 hex flange |
2 |
|
|
17 |
375-7659
|
Guard block |
1 |
|
|
18 |
175-6821
|
SCREW, SOC, M8 X 1.25 X 35, 12.9 (Tennant Industrial) |
1 |
|
|
19a |
375-7660
|
Front guard bristles kit |
1 |
(includes 19b and 20) |
|
19b |
375-7661
|
Front guard bristles |
1 |
|
|
20 |
175-9228
|
Clip |
7 |
|
|
21 |
375-7662
|
Sensor guard weldment |
1 |
|
|
22 |
375-7663
|
Solution tank bracket weldment |
2 |
|
|
23 |
999-0786
|
Screw M8-1.25 x 35mm hex head stainless steel |
2 |
|
|
24 |
999-1372
|
Bolt M10-1.5 x 25mm hex head stainless steel |
2 |
|
|
25 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
|
