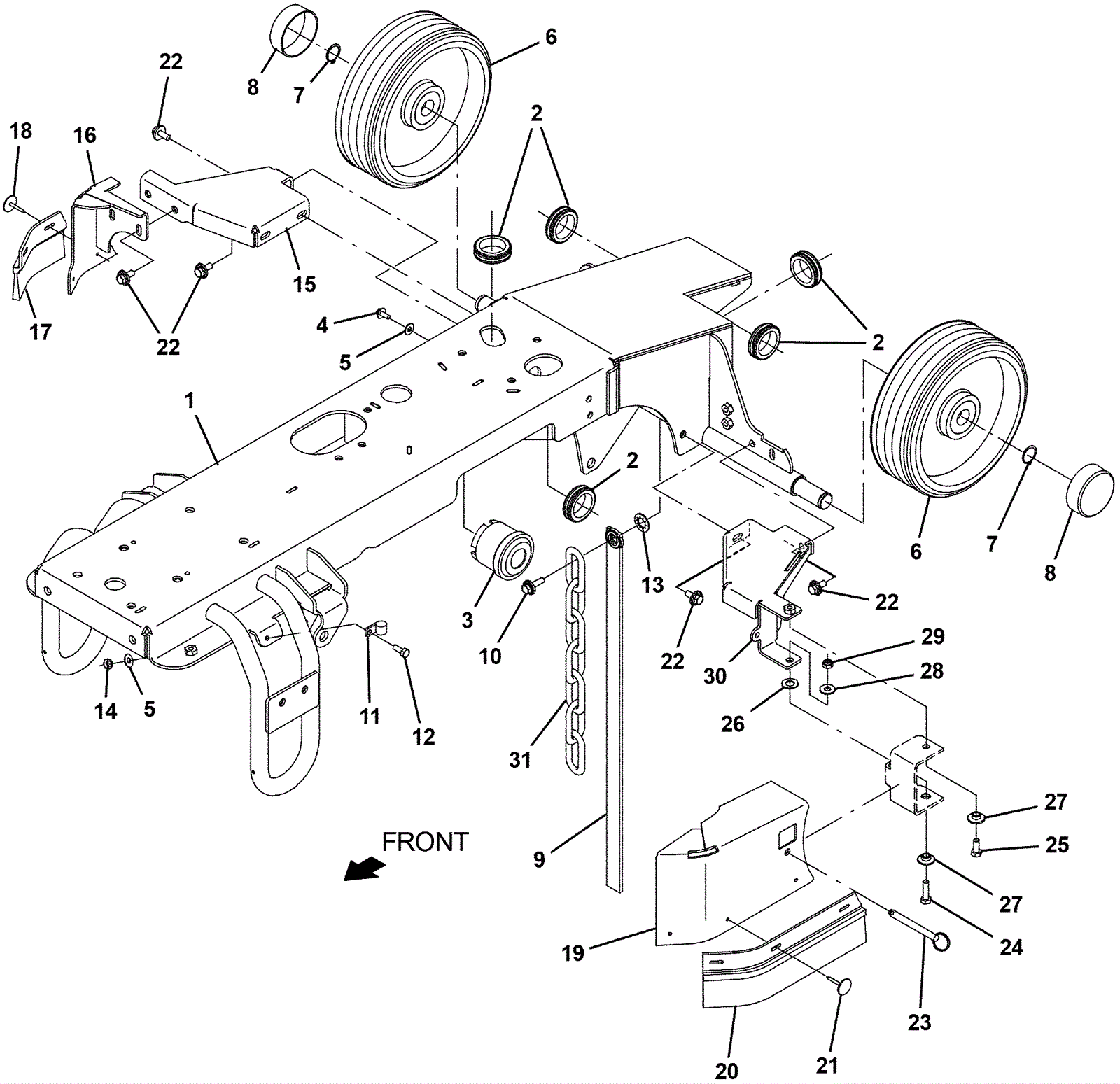

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-7645
|
Main disk frame weldment (OBSOLETE) |
1 |
|
|
2 |
175-2366
|
Rubber grommet |
5 |
|
|
3 |
275-8062
|
Horn |
1 |
|
|
4 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
1 |
|
|
5 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
|
6 |
275-8059
|
Tire assembly |
2 |
|
|
7 |
175-3294
|
Retaining ring |
2 |
|
|
8 |
275-8060
|
Cap |
2 |
|
|
9 |
275-9261
|
Static strip with grommet |
1 |
|
|
10 |
999-9082
|
Screw M8-1.25 x 25mm hex head stainless steel |
1 |
|
|
11 |
175-3170
|
P clamp |
1 |
|
|
12 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
1 |
|
|
13 |
175-2893
|
Washer 5/16 internal/external locking |
1 |
|
|
14 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
1 |
|
|
15 |
375-7646
|
Right hand rear guard bracket weldment (Tennant Industrial) |
1 |
|
|
16 |
375-7647
|
Right hand rear plate guard |
1 |
|
|
17a |
375-7648
|
Right hand guard bristles kit |
1 |
(includes 17b and 18) |
|
17b |
375-7649
|
Right hand rear guard bristles |
1 |
|
|
18 |
175-9228
|
Clip |
2 |
|
|
19 |
375-7650
|
Left hand rear guard weldment |
1 |
|
|
20a |
375-7651
|
Left hand rear guard bristles |
1 |
(includes 20b and 21) |
|
20b |
375-7652
|
Left hand rear guard bristles |
1 |
|
|
21 |
175-9228
|
Clip |
3 |
|
|
22 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
7 |
|
|
23 |
175-9789
|
PIN, HITCH, .375D X 3.12L, PL (Tennant Industrial) |
1 |
|
|
24 |
999-0785
|
Screw M8-1.25 x 30mm hex head stainless steel |
1 |
|
|
25 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
1 |
|
|
26 |
999-0566
|
Washer 1/2 flat nylon |
1 |
|
|
27 |
675-9890
|
Flanged bushing |
2 |
|
|
28 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
1 |
|
|
29 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
1 |
|
|
30 |
375-7653
|
Left hand rear guard bracket weldment |
1 |
|
|
31 |
175-2094
|
Chain |
1 |
|
|
