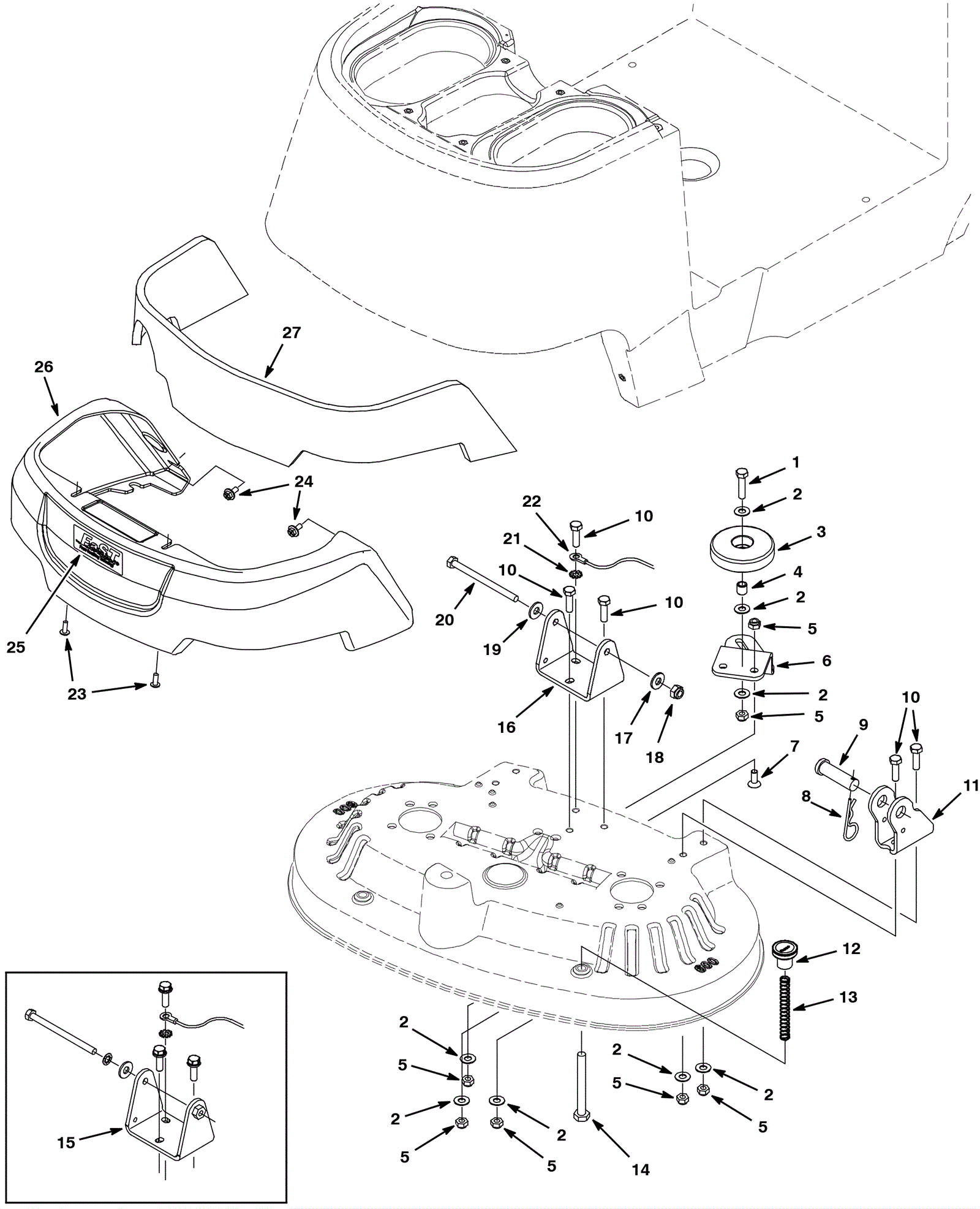

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0786
|
Screw M8-1.25 x 35mm hex head stainless steel |
1 |
|
|
2 |
999-0024
|
Washer 5/16 flat stainless steel |
10 |
|
|
3 |
175-7919
|
Guide wheel |
1 |
|
|
4 |
175-2249
|
Sleeve |
1 |
|
|
5 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
10 |
|
|
6a |
275-1461
|
Right hand roller bracket |
1 |
|
|
6b |
275-1479
|
Left hand roller bracket |
1 |
|
|
7 |
999-1324
|
Screw M8-1.25 x 20mm flat head stainless steel |
2 |
|
|
8 |
175-2106
|
Cotter hair pin |
2 |
|
|
9 |
175-2105
|
Clevis pin |
2 |
|
|
10 |
999-0785
|
Screw M8-1.25 x 30mm hex head stainless steel |
7 |
|
|
11 |
275-1462
|
Bracket |
2 |
|
|
12 |
275-1369
|
Knob M10 thread knurled |
2 |
|
|
13 |
175-7018
|
Compression spring |
2 |
|
|
14 |
999-1408
|
Screw M10-1.5 x 90mm hex head stainless steel |
2 |
|
|
15 |
N/A
|
Not available |
1 |
(actuator bracket assembly) (replaced by 16, 17 and 18) (before SN 10325114) |
|
16 |
275-4729
|
Roller bracket |
1 |
(after SN 10325113) |
|
17 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
1 |
(after SN 10325113) |
|
18 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
1 |
(after SN 10325113) |
|
19 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
1 |
|
|
20 |
275-1474
|
Screw M8-1.25 x 110mm hex head (Tennant Industrial) |
1 |
|
|
21 |
999-1053
|
Washer 5/16 internal star lock stainless steel |
1 |
|
|
22 |
275-1439
|
Wire 12 gauge x 250mm |
1 |
|
|
23 |
999-1084
|
Screw M6-1 x 16mm truss head slotted stainless steel |
2 |
|
|
24 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
2 |
|
|
25 |
275-4732
|
White and black logo decal (OBSOLETE) |
1 |
|
|
26 |
275-4730
|
Disk head cover kit |
1 |
(includes 27) |
|
27 |
275-4731
|
Front sound insulation |
1 |
|
|
