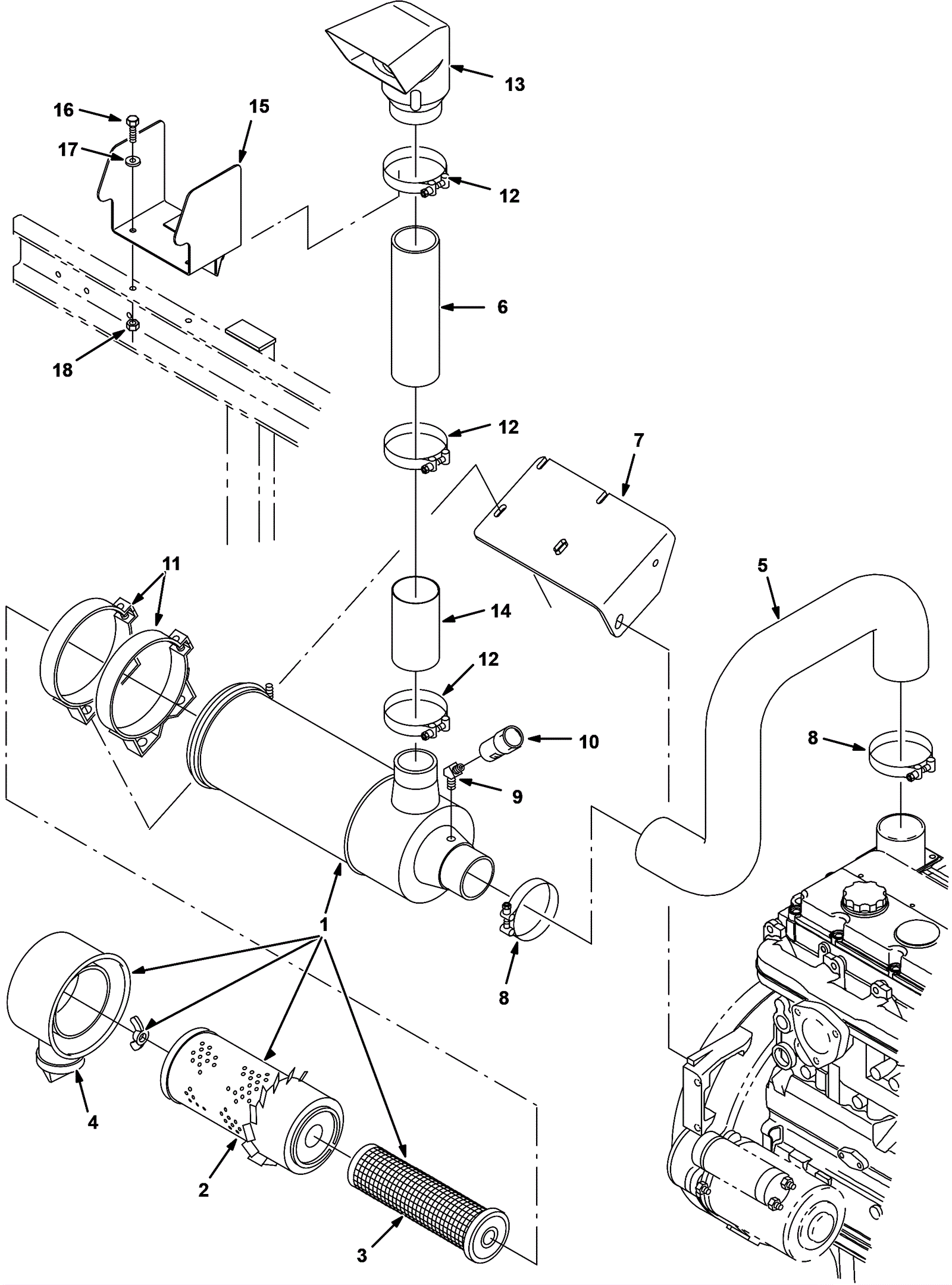

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
675-5218
|
FILTER ASSY, AIR (Tennant Industrial) |
1 |
(includes 2-4) |
|
2 |
575-9154
|
VR, ELEMENT, FLTR, AIR (Tennant Industrial) |
1 |
|
|
3 |
575-6367
|
VR, ELEMENT, FLTR, AIR [DN] (Tennant Industrial) |
1 |
|
|
4 |
575-2241
|
ASPIRATOR, AIR-CLNR 60 DURO (Tennant Industrial) |
1 |
|
|
5 |
675-2305
|
HOSE, INTAKE, MOLD, AIR [N/A] (Tennant Industrial) |
1 |
|
|
6 |
575-3515
|
TUBE, 2.87ID 3.00OD 11.6L, STL, PNTD (Tennant Industrial) |
1 |
|
|
7 |
675-0819
|
BRACKET WLDT, AIR-CLNR (Tennant Industrial) |
1 |
|
|
8 |
575-2524
|
CS, CLAMP, SPRING & SCREW, 85-95MM, SS (Tennant Industrial) |
2 |
|
|
9 |
275-2842
|
FITTING, BRS, E45, PF02/PM02 (Tennant Industrial) |
1 |
|
|
10 |
575-4069
|
SWITCH, VACUUM INDICATOR, 25INCH (Tennant Industrial) |
1 |
|
|
11 |
575-4535
|
BAND, MTG, FLTR, AIR, 6.50ID (Tennant Industrial) |
2 |
|
|
12 |
175-5205
|
Wormdrive hose clamp |
3 |
|
|
13 |
575-9429
|
ELBOW, AIR SCOOP (Tennant Industrial) |
1 |
|
|
14 |
575-5569
|
HOSE, STR, FLTR, AIR (Tennant Industrial) |
1 |
|
|
15 |
N/A
|
Not available |
1 |
(Air intake weldment bracket) (OBSOLETE) |
|
16 |
999-0248
|
Bolt M8-1.25 x 30mm hex head full thread plain finish |
2 |
|
|
17 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
2 |
|
|
18 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
2 |
|
|
