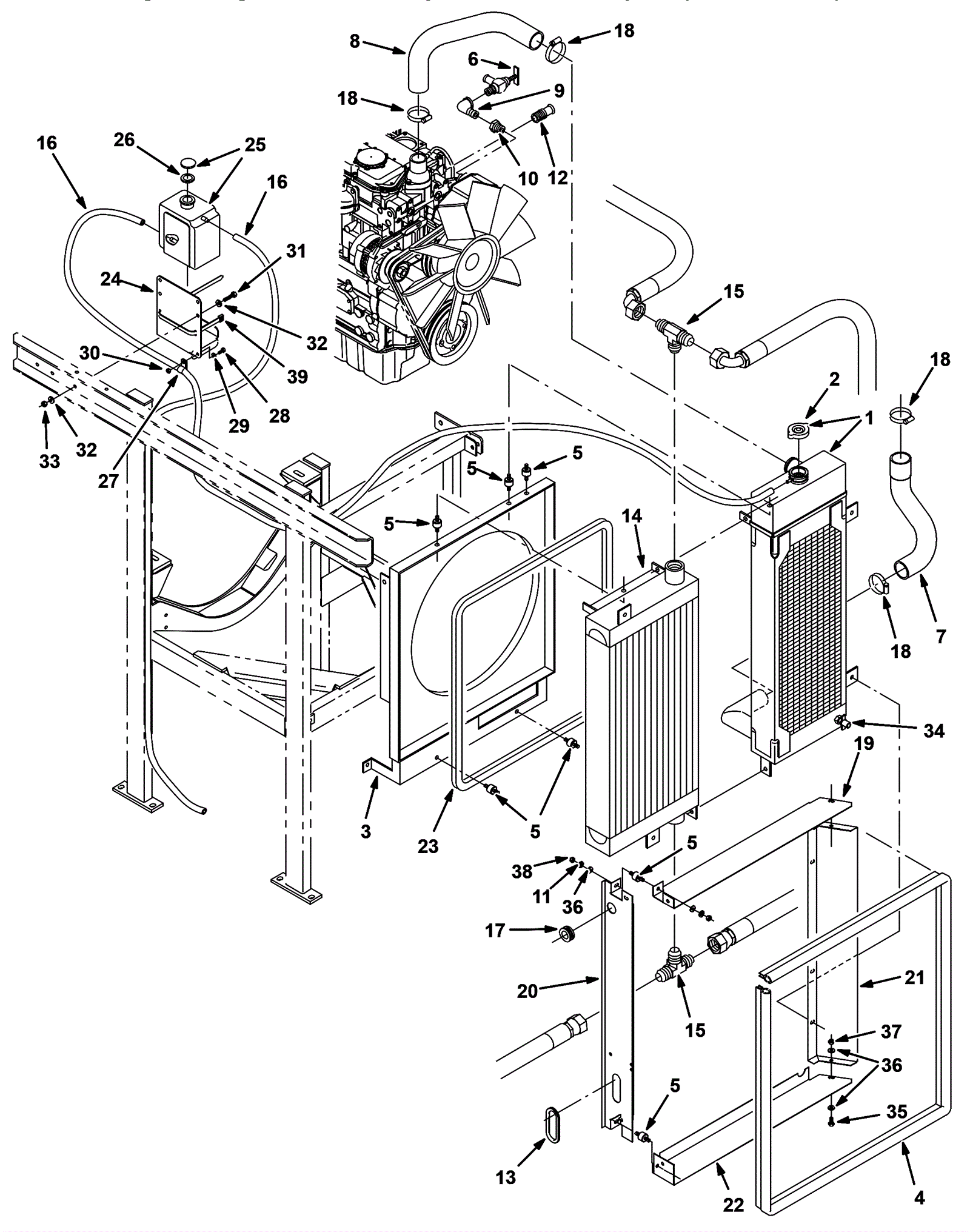

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
675-8086
|
RADIATOR, ALM, 362MM (Tennant Industrial) |
1 |
(includes 2A) |
|
2A |
575-1362
|
CAP, RADIATOR, 07PSI (Tennant Industrial) |
1 |
|
|
2B |
575-4460
|
FLUID, CONDITIONER, COOLANT, 16OZ (Tennant Industrial) |
1 |
|
|
3 |
N/A
|
Not available |
1 |
(radiator support) (sentinel) |
|
4 |
675-1304
|
SEAL, AFMKT, BULB, STR, .75D F/07GA 20FT (Tennant Industrial |
2 |
|
|
5 |
575-2116
|
ISOLATOR, VIB, RING, 1.0D .25-20/.25-20 (Tennant Industrial) |
7 |
|
|
6 |
575-7067
|
FITTING, DRAINCOCK, E90 PM06 (Tennant Industrial) |
1 |
|
|
7 |
575-5946
|
HOSE, RADIATOR, LOWER (Tennant Industrial) |
1 |
|
|
8 |
575-8638
|
HOSE, RADIATOR, UPPER (Tennant Industrial) |
1 |
|
|
9 |
575-0263
|
FITTING, PIPE, E90, PF06/PM06[STL-UNPLT] (Tennant Industrial |
1 |
|
|
10 |
475-9507
|
FITTING, BRS, STR, PF06/PM08 (Tennant Industrial) |
1 |
|
|
11 |
999-0238
|
Washer 1/4 internal star lock zinc plated |
4 |
|
|
12 |
475-9459
|
FITTING, HYD, BRB (Tennant Industrial) |
1 |
|
|
13 |
275-8203
|
Molding |
2 |
|
|
14 |
675-8435
|
COOLER, HYD (Tennant Industrial) |
1 |
|
|
15 |
575-9529
|
FITTING, HYD, TEE, FM16/FM16/OM16, BR (Tennant Industrial) |
2 |
|
|
16 |
575-8643
|
HOSE, RADIATOR OVERFLOW (Tennant Industrial) |
1 |
|
|
17 |
175-0840
|
Rubber grommet |
1 |
|
|
18 |
997-2006
|
Hose clamp |
4 |
|
|
19 |
675-0447
|
SHROUD, RADIATOR, UPPER (Tennant Industrial) |
1 |
|
|
20 |
675-1192
|
SHROUD WLDT, RADIATOR, LH (Tennant Industrial) |
1 |
|
|
21 |
575-9993
|
SHROUD, RADIATOR, RH (Tennant Industrial) |
1 |
|
|
22 |
575-7915
|
SHROUD, RADIATOR, LOWER (Tennant Industrial) |
1 |
|
|
23 |
575-9705
|
SEAL, AFMKT, BULB, STR, 0.58D 12FT (Tennant Industrial) |
1 |
|
|
24 |
575-7155
|
BRACKET, MTG, TANK, COOLANT, F/768897 (Tennant Industrial) |
1 |
|
|
25 |
275-0117
|
TANK, RECVY, COOLANT, 2.5QT (Tennant Industrial) |
1 |
|
|
26 |
375-1706
|
Coolant bottle gasket |
1 |
(sentinel) |
|
27 |
175-2260
|
P clamp |
1 |
|
|
28 |
999-0518
|
Bolt M6-1 x 25mm hex head full thread zinc |
1 |
|
|
29 |
999-0016
|
Washer 1/4 flat plain finish |
1 |
|
|
30 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
1 |
|
|
31 |
999-0248
|
Bolt M8-1.25 x 30mm hex head full thread plain finish |
4 |
|
|
32 |
999-0024
|
Washer 5/16 flat stainless steel |
4 |
|
|
33 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
4 |
|
|
34 |
175-6869
|
FITTING, DRAINCOCK, E90, .25NPT (Tennant Industrial) |
1 |
|
|
35 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
4 |
|
|
36 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
12 |
|
|
37 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
4 |
|
|
38 |
999-0190
|
Nut 1/4-20 hex plain finish |
4 |
|
|
39 |
175-0862
|
TIE, CABLE, NYL, 28.3L .50W 8.0 MAX D (Tennant Industrial) |
1 |
|
|
