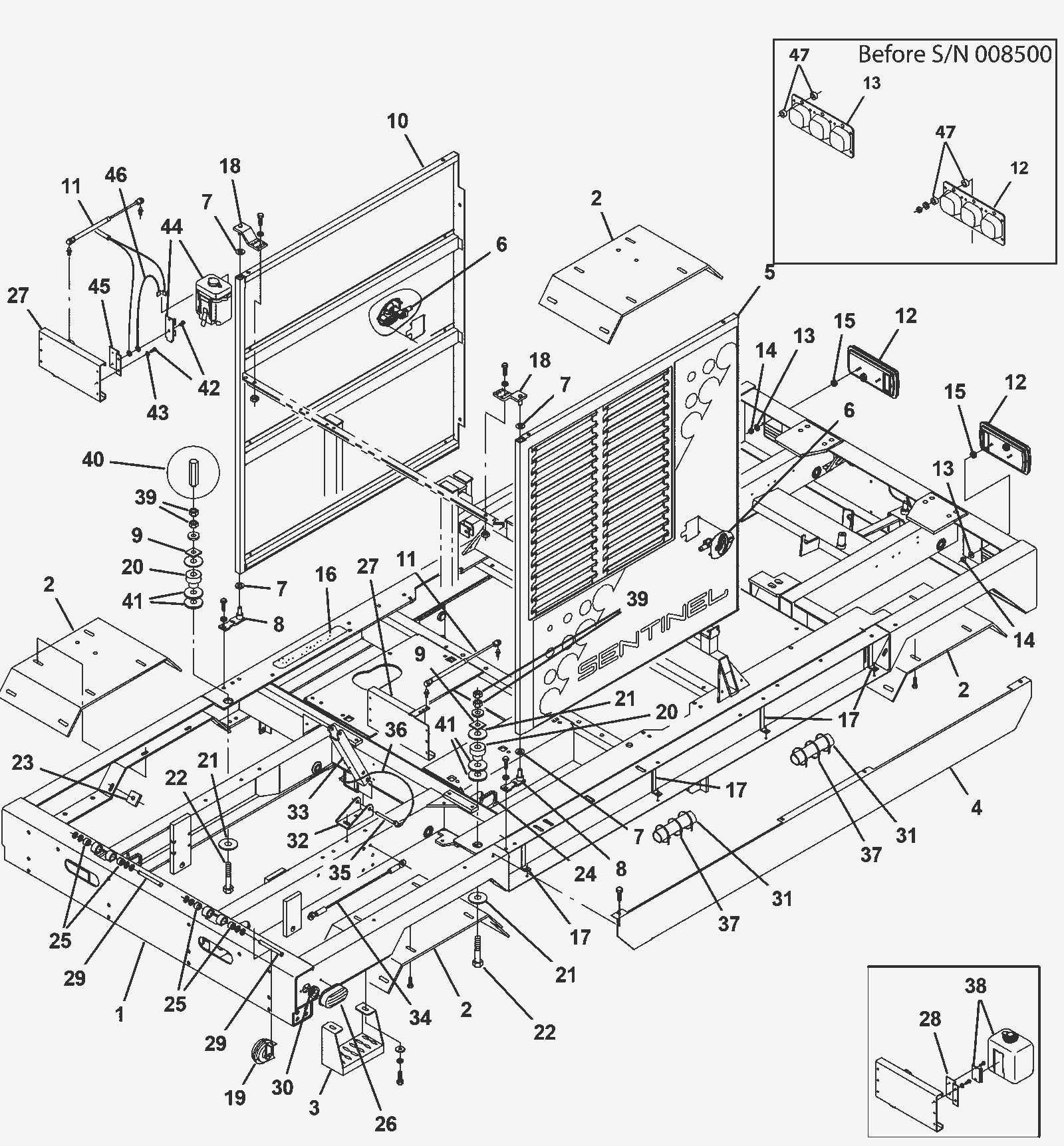

Main Frame Assembly

#PartDescription ReqNotesAvailability
1A N/A Not available 1 (frame wldt) (before S/N 008500)
1B 675-9294 FRAME WLDT [SENTINEL] (Tennant Industrial) 1 (after S/N 008499)
2 675-1481 PLATE, FENDER (Tennant Industrial) 4
3 675-3313 BRACKET, STEP (Tennant Industrial) 2
4 675-3244 COVER, CHANNEL, LH (Tennant Industrial) 1
5A 675-8756 DOOR ASSY, ENG, LH (Tennant Industrial) 1 (after S/N 008499)
5B 675-8922 DOOR ASSY, ENG, LH[NEW GRAPHICS] (Tennant Industrial) 1 (after S/N 008499)
6A 675-0552 LATCH, HANDLE, T [1/LOCK+1/KEY=1PICK] (Tennant Industrial) 2 (after S/N 008499) (includes 6B)
6B 575-1361 KEY, DOOR, ENG [1 PICK = 2 KEYS] (Tennant Industrial) 2 (after S/N 008499)
7 575-0539 BUSHING, HINGE, DOOR, SIDE, ENG [830] (Tennant Industrial 4
8 575-9765 PIN WLDT, HINGE, DOOR, LOWER ENG (Tennant Industrial) 2
9 575-3767 PAD, MTG, CAB (Tennant Industrial) 2
10A 675-8580 DOOR ASSY, ENG, RH (Tennant Industrial) 1 (after S/N 008499)
10B 675-8896 DOOR ASSY, ENG, RH[NEW GRAPHICS] (Tennant Industrial) 1 (after S/N 008499)
11 575-9942 GASSPRING, 38LB, 5.9STRK (Tennant Industrial) 2
12A 675-3667 TAILLIGHT, 12VDC, RH, RWK 762510 (Tennant Industrial) 1 (includes 12B, 12C, 12D) (before S/N 008500)
12B 475-8688 GASKET, TAILLIGHT [830] (Tennant Industrial 3 (before S/N 008500)
12C 275-0587 Lamp 12VDC 2.1A 2 (before S/N 008500)
12D 175-5929 LAMP, 12VDC, 0.5A, 04CP [#1157] (Tennant Industrial) 1 (before S/N 008500)
12E 675-4955 TAILLIGHT, LED [SENTINEL 08] (Tennant Industrial) 2 (after S/N 008499)
13A 675-4249 TAILLIGHT, 12VDC, LH, RWK 762509 (Tennant Industrial) 1 (includes 13B, 13C, 13D) (before S/N 008500)
13B 475-8688 GASKET, TAILLIGHT [830] (Tennant Industrial 3 (before S/N 008500)
13C 275-0587 Lamp 12VDC 2.1A 2 (before S/N 008500)
13D 175-5929 LAMP, 12VDC, 0.5A, 04CP [#1157] (Tennant Industrial) 1 (before S/N 008500)
13E 999-0123 Washer 1/4 SAE flat zinc plated 4 (after S/N 008499)
14 999-0469 Nut M6-1 nylon insert lock zinc plated 4
15 375-3490 Grommet (Tennant Industrial) 4
16 275-2978 TREAD, NON-SKID, 02.2W 15.5L (Tennant Industrial) 1
17 575-3014 BRACKET, ANGLE, RETAINER, HOSE (Tennant Industrial) 4
18 675-0976 PIVOT WLDT, DOOR, UPPER, ENG (Tennant Industrial) 2
19 775-0114 12VDC horn 1
20 575-4744 ISOLATOR, VIB, BSHG, 2.8D 2.4L .8B 1.62H (Tennant Industrial 2
21 575-1119 WASHER, FLAT, 0.80B 3.00D .18 (Tennant Industrial) 4
22 575-1276 BOLT, MODIF (Tennant Industrial) 2
23 475-9051 U-NUT, 10MM-1.25 0.75 (Tennant Industrial) 16
24 N/A Not available 4
25 575-3183 BUSHING (Tennant Industrial) 4
26 575-8664 LIGHT, SIDE MARKER, AMBER, 12VDC (Tennant Industrial) 2
27 675-0495 BRACKET WLDT, DOOR (Tennant Industrial) 2
28A 575-4340 PLATE, MTG, WINDSHIELD FRAME (Tennant Industrial) 1 (before S/N 008500)
28B 575-1715 BRACKET (Tennant Industrial) 1 (after S/N 008499)
29 275-3981 PIN, CLEVIS, 0.50D X 5.00L (Tennant Industrial) 2
30 475-8848 GROMMET, RBR, 1.25ID, F/0.5H, .31 MATL (Tennant Industrial) 2
31 575-9000 GUARD, HOSE, RBR, 8.0L (Tennant Industrial) 2
32 575-8143 BRACKET, CAB, TILT (Tennant Industrial) 1
33 575-8908 BRACKET, CHANNEL, CAB SPPT (Tennant Industrial) 1
34 575-8036 CABLE, GLV .25D 021.0L .51RING /.51RING (Tennant Industrial) 1
35 575-0307 PIN, QDC (Tennant Industrial) 1
36 275-5539 12 inch cable (Tennant Industrial) 1
37 275-0080 TIE, CABLE, NYL, 15.3L . W 4.5 MAX D (Tennant Industrial) 6
38 675-1903 BOTTLE KIT, WASHER FLUID REPLMT (Tennant Industrial) 1
39 275-0556 NUT, HEX, STD, M20 X 2.50, 8 (Tennant Industrial) 4
40 575-4174 NUT, SPCL, EXTENDED (Tennant Industrial) 1
41 475-9744 WASHER, FLAT, 1.50B 3.00D .18 (Tennant Industrial) 4
42 175-0536 Bolt M6-1 x 20mm hex head thread forming 8
43 999-1261 Washer M6 flat stainless steel 6
44A 675-1903 BOTTLE KIT, WASHER FLUID REPLMT (Tennant Industrial) 1 (before S/N 008500)
44B 575-9909 TANK, FLUID, WINDSHIELD WASHER (Tennant Industrial) 1 (after S/N 008499)
45A 575-1715 BRACKET (Tennant Industrial) 1 (before S/N 008500)
45B 575-2367 BRACKET (Tennant Industrial) 1 (after S/N 008499)
46 475-9909 WIRE, GROUND, WINDSHIELD, WASHER (Tennant Industrial) 1
47 475-9368 ISOLATOR, VIB, TAILLIGHT [830] (Tennant Industrial 12 (before S/N 008500)
