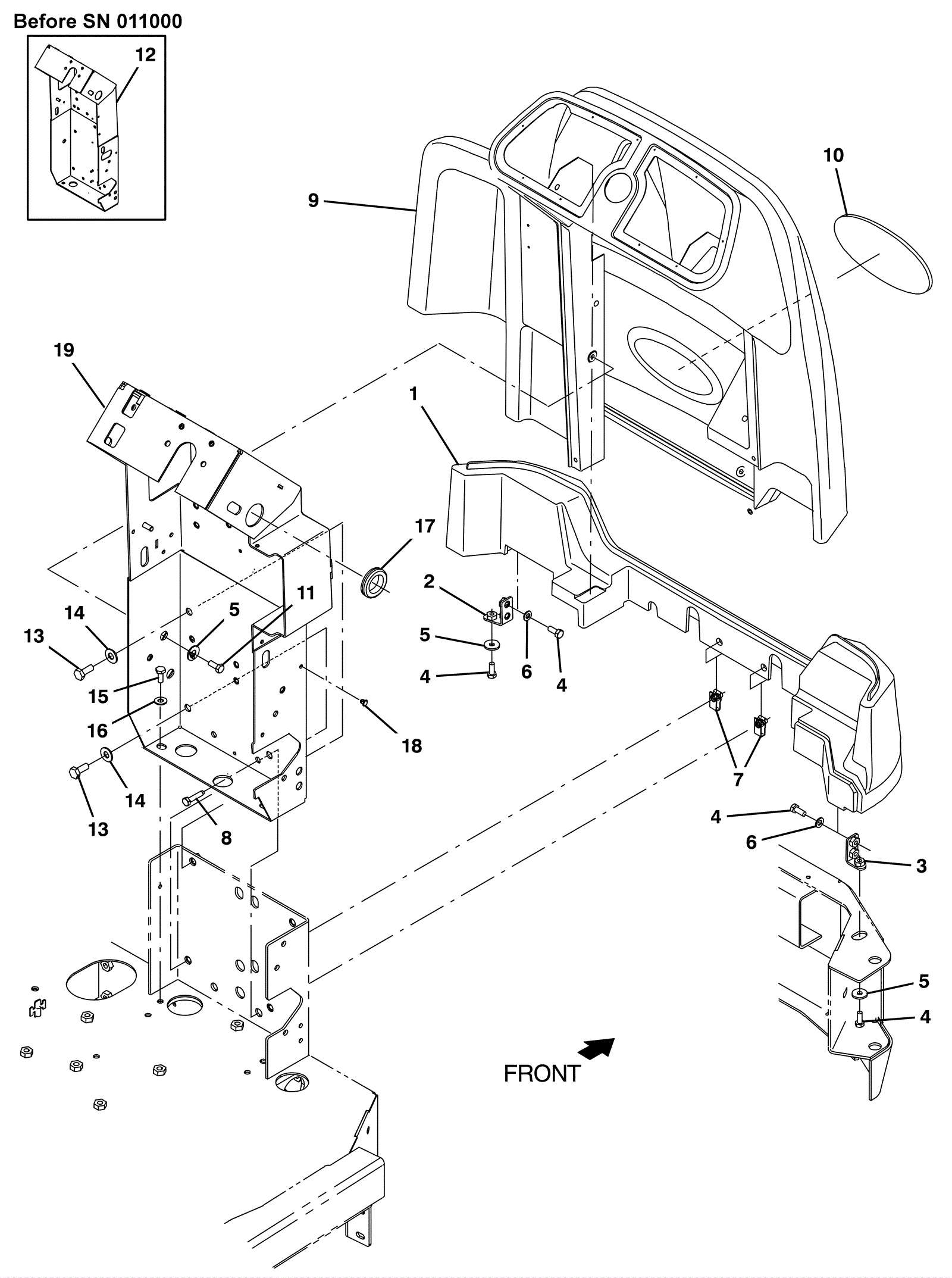

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
675-3748
|
PLATFORM, OPRTR, FRONT (Tennant Industrial) |
1 |
|
|
2 |
575-1938
|
BRACKET WLDT, MTG, PLATFORM, FRONT (Tennant Industrial) |
1 |
|
|
3 |
575-1691
|
BRACKET WLDT, MTG, PLATFORM, FRONT, RH (Tennant Industrial) |
1 |
|
|
4 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
6 |
|
|
5 |
175-7920
|
Washer M8 flat stainless steel |
6 |
|
|
6 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
|
7 |
475-8757
|
NUT, U, M8 X 1.25 4-7 THK (Tennant Industrial) |
2 |
|
|
8 |
999-0786
|
Screw M8-1.25 x 35mm hex head stainless steel |
2 |
|
|
9 |
675-5882
|
SHROUD, FRONT, AFMKT [T17] (Tennant Industrial) |
1 |
(includes 10) |
|
10 |
275-7759
|
Nameplate |
1 |
|
|
11 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
4 |
|
|
12 |
675-3800
|
CHANNEL WLDT, STEERING (Tennant Industrial) |
1 |
(before SN 011000) |
|
13 |
275-0025
|
Screw M10-1.5 x 25 hex head 8.8 |
5 |
|
|
14 |
999-0032
|
Washer 3/8 USS flat plain finish |
5 |
|
|
15 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
1 |
|
|
16 |
999-0120
|
Washer 3/8 SAE flat |
2 |
|
|
17 |
175-3446
|
Rubber grommet |
1 |
|
|
18 |
275-7625
|
Plastic clip |
6 |
|
|
19 |
675-5644
|
CHANNEL WLDT, SPPT, STEERING (Tennant Industrial) |
1 |
(after SN 0399) |
|
