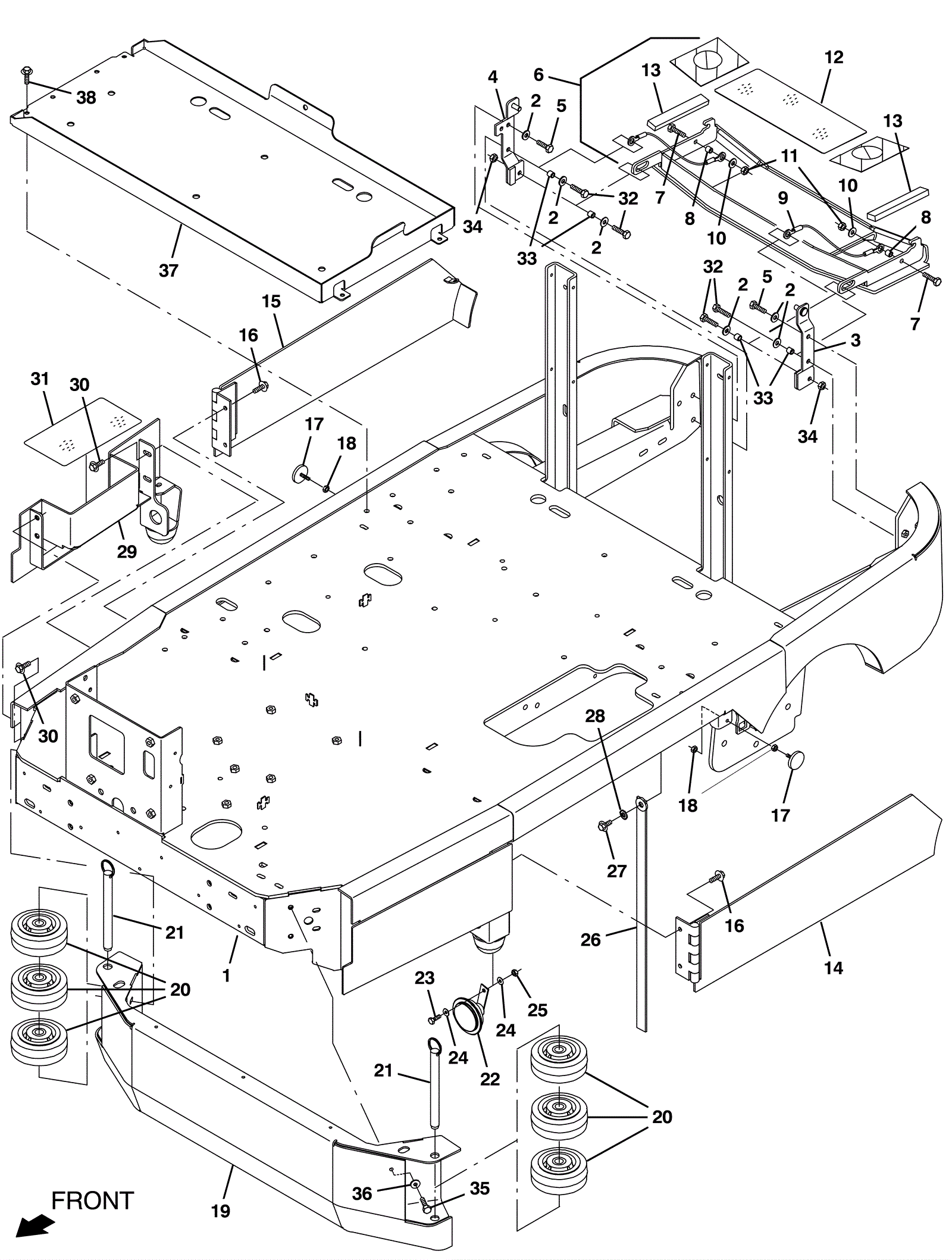

Frame Assembly

#PartDescription ReqNotesAvailability
1a 675-8891 FRAME WLDT, MAIN [T17] (Tennant Industrial) 1 (before SN 011000)
1b 675-8566 FRAME WLDT, MAIN [T17] (Tennant Industrial) 1 (between SN 010999-013000)
1c 375-7419 Main frame weldment (Tennant Industrial) 1 (after SN 012999)
2 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 8
3 575-5341 BRACKET WLDT, LH, MTG, DOOR (Tennant Industrial) 1
4 575-6327 BRACKET WLDT, RH, MTG, DOOR (Tennant Industrial) 1
5 999-0785 Screw M8-1.25 x 30mm hex head stainless steel 2
6 675-5697 BUMPER KIT, REAR, AFMKT [T17] (Tennant Industrial) 2 (includes 7-13)
7 999-0786 Screw M8-1.25 x 35mm hex head stainless steel 2
8 175-2263 Sleeve 2
9 275-0833 Cable 2
10 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 2
11 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2
12 575-0262 TREAD, NON-SKID-STEP, 5.5W 13.8L (Tennant Industrial) 1
13 575-3375 BUMPER, STRIP, 1.0 (Tennant Industrial) 2
14 675-4195 DOOR WLDT, BRUSH, LH (Tennant Industrial) 1
15 675-4196 DOOR WLDT, BRUSH, RH (Tennant Industrial) 1
16 275-9575 SCREW, HEX, M8 X 1.25 X 25, 9.8, SEMS (Tennant Industrial) 4
17 675-9923 Brush door magnet 2
18 999-0190 Nut 1/4-20 hex plain finish 4
19 675-5012 CHANNEL WLDT, BUMPER (Tennant Industrial) 1
20 275-5658 Wheel (gray) (Tennant Industrial) 6
21 575-3075 PIN, HITCH, .750D X 7.00L, PL (Tennant Industrial) 2
22 275-7560 36V horn (Tennant Industrial) 1
23 999-1312 Screw M6-1 x 20mm hex head stainless steel 1
24 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
25 999-0497 Nut M6-1 nylon insert lock stainless steel 1
26 275-9261 Static strip with grommet 1
27 999-9092 Screw M8-1.25 x 20mm hex head stainless steel 1
28 175-2893 Washer 5/16 internal/external locking 1
29a 675-2447 PANEL WLDT, COVER, BRUSH (Tennant Industrial) 1 (before SN 011000)
29b 675-1459 PANEL WLDT, COVER, BRUSH (Tennant Industrial) 1 (after SN 010999)
30 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 5
31 475-8760 TREAD, NON-SKID-STEP, 3.75W 8.5L, SBA (Tennant Industrial) 1
32 999-0786 Screw M8-1.25 x 35mm hex head stainless steel 4
33 175-2263 Sleeve 4
34 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2
35 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 4
36 175-7920 Washer M8 flat stainless steel 4
37 375-7204 Battery tray weldment 1 (after SN 012999)
38 999-0785 Screw M8-1.25 x 30mm hex head stainless steel 4 (after SN 012999)
