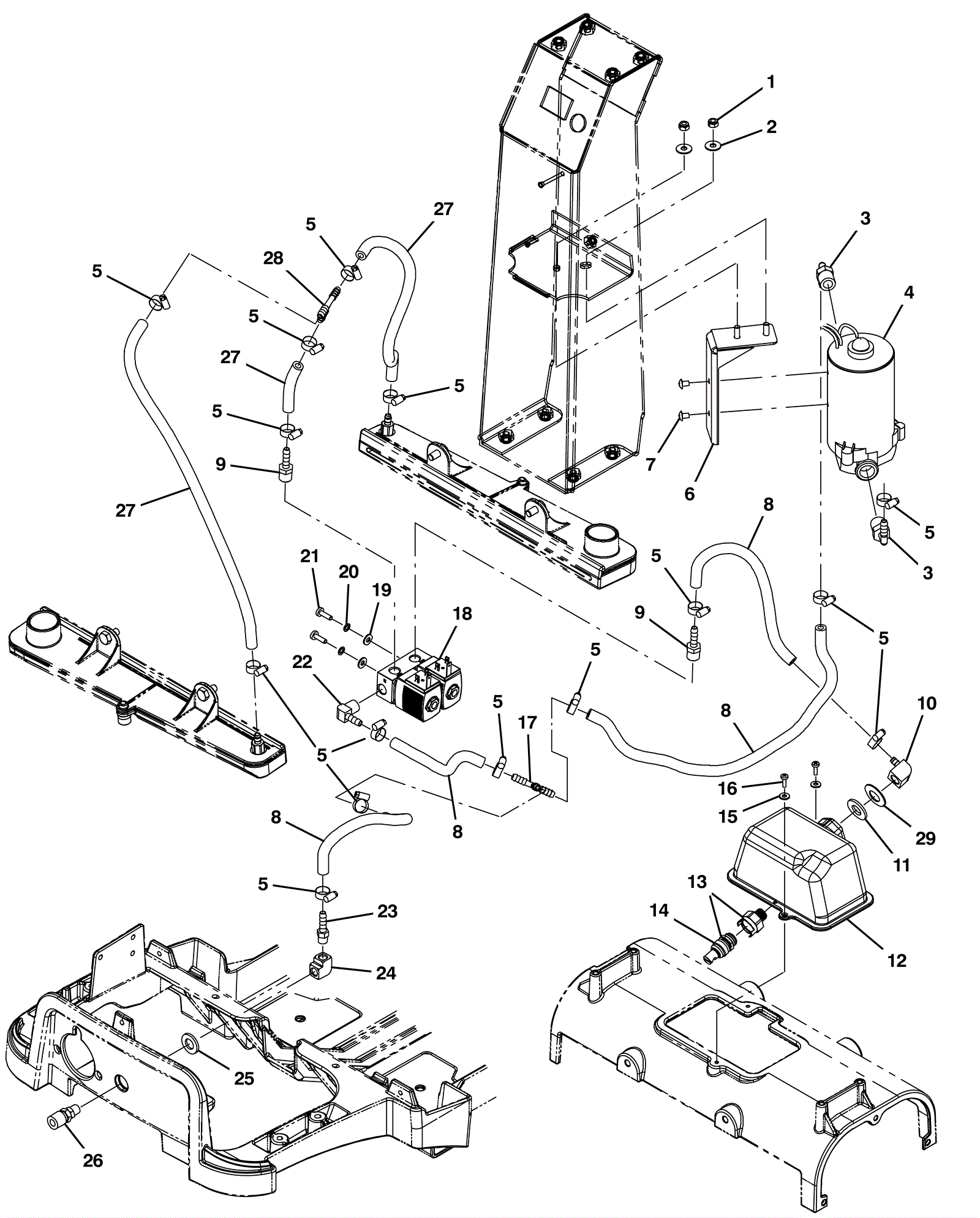

STRIVE COMPACT Solution Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 2 ships same day
2 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
3 275-2390 90 degree fitting $7.37 2 ships same day
4 275-9125 Pump $399.30 1 usually ships 10-16 days
5 175-3594 Hose clamp $5.28 15 usually ships 10-16 days
6 275-2392 Bracket $34.76 1 ships same day
7 999-0056 Screw 10-32 x 3/8 round head slotted zinc plated $0.99 2 ships same day
8 275-2393 Hose 1/4 x 60 inch $36.08 1 usually ships 10-16 days
9 175-6024 Hosebarb $5.50 2 usually ships 10-16 days
10 275-1523 90 degree brass elbow $29.92 1 usually ships 10-16 days
11 999-0114 Washer 1/2 SAE flat $0.99 1 ships same day
12 275-9184 Splash nozzle shroud $12.32 1 usually ships 1-5 days
13a 375-1588 Nozzle assembly $88.00 1 (includes 14) (s/n 10000000-5999999) usually ships 10-16 days
13b 275-9185 Spray nozzle attachment $68.64 1 (s/n 60000000-current) usually ships 10-16 days
14 275-9136 Spray nozzle $48.51 1 usually ships 10-16 days
15 999-0266 Washer #8 SAE flat stainless steel $0.99 2 ships same day
16 999-0521 Screw M4-.7 x 12mm pan head phillips zinc $2.31 2 ships same day
17 175-7303 1/4 inch union tee $11.11 1 usually ships 10-16 days
18 275-9186 Solution manifold $435.38 1 usually ships 10-16 days
19 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
20 999-1026 Washer #10 internal lock stainless steel $0.99 2 ships same day
21 999-0726 Screw 10-32 x 5/8 pan head phillips zinc plated $0.99 2 ships same day
22 175-4307 Hosebarb $13.20 1 usually ships 10-16 days
23 175-1659 Fitting $5.28 1 usually ships 10-16 days
24 175-1649 90 degree elbow $6.49 1 usually ships 10-16 days
25 999-0114 Washer 1/2 SAE flat $0.99 1 ships same day
26 175-1652 1/8 inch female brass quick coupler $38.50 1 ships same day
27 175-6023 Hose 1/4 x 36 inch (gray) $22.88 1 usually ships 10-16 days
28 175-7303 1/4 inch union tee $11.11 1 usually ships 10-16 days
29 275-5271 Washer 9/16 flat belleville $5.28 1 usually ships 10-16 days
