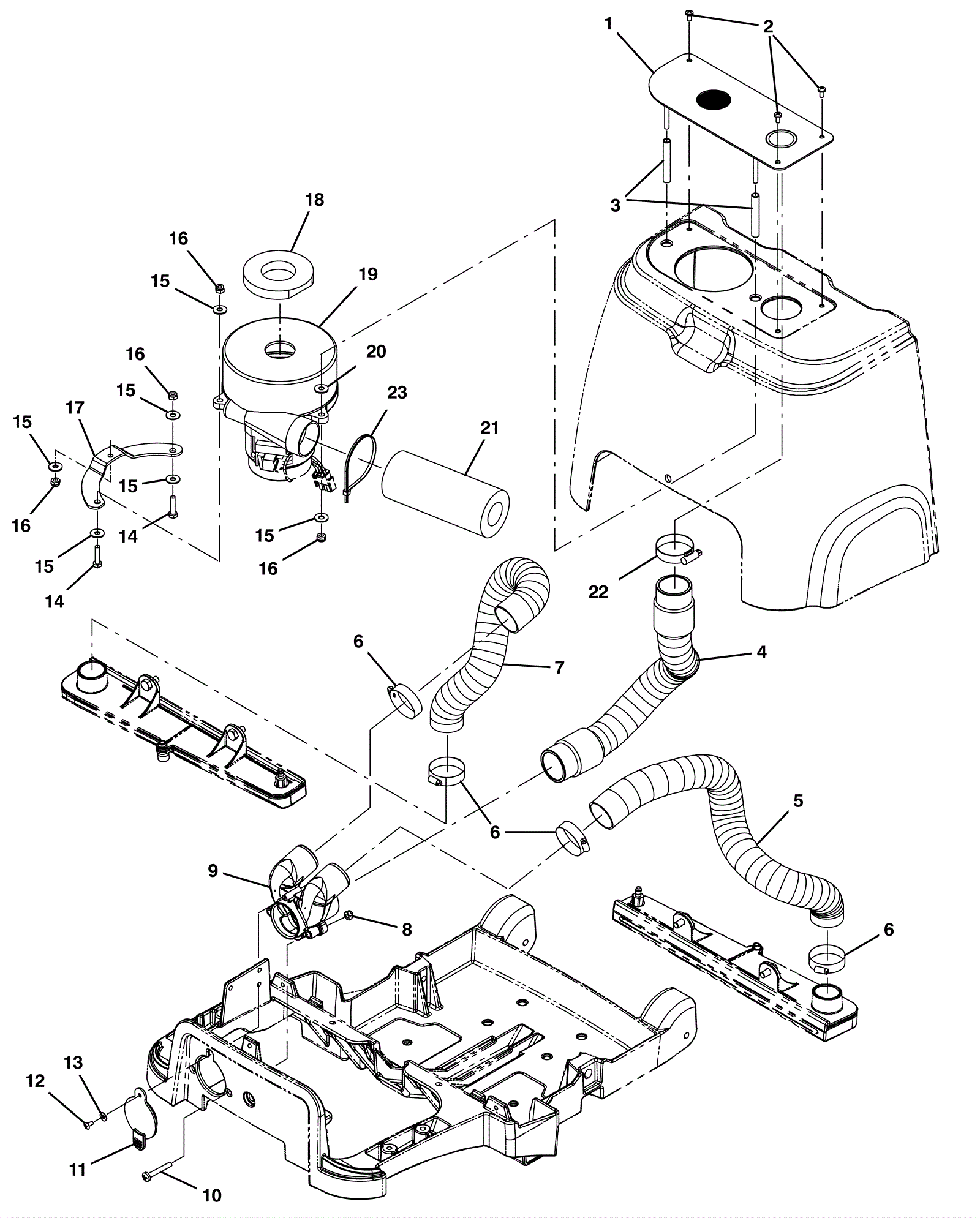

STRIVE COMPACT Vacuum Fan Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-2385 Plate $81.40 1 ships same day
2 999-1090 Screw M5-.8 x 10mm pan head phillips zinc plated $0.99 3 ships same day
3 175-1919 Spacer $12.76 2 usually ships 5-16 days
4 275-2388 Vacuum hose $32.01 1 usually ships 5-16 days
5 275-9181 Vacuum hose $17.38 1 ships same day
6 997-2000 Hose clamp $2.37 4 ships same day
7 275-9182 Vacuum hose $12.87 1 usually ships 5-16 days
8 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 2 ships same day
9 275-9183 Manifold $9.57 1 usually ships 5-16 days
10 999-1325 Screw M6-1 x 40mm pan head stainless steel $2.84 2 ships same day
11 175-9823 Cap seal $11.77 1 usually ships 5-16 days
12 999-1165 Screw 8-32 x 3/8 truss head phillips stainless steel $0.99 1 ships same day
13 999-0393 Washer 3/16 flat aluminum $0.99 1 ships same day
14 999-1087 Bolt M6-1 x 25mm hex head stainless steel $0.99 2 ships same day
15 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 6 ships same day
16 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 4 ships same day
17 275-2386 Vacuum motor mounting plate $42.68 1 ships same day
18 175-3634 Vacuum motor gasket $8.91 1 ships same day
19a 275-9134 120V 2 stage vacuum motor $275.44 1 (includes 19c and 20) ships same day
19b 275-9134 120V 2 stage vacuum motor $275.44 1 (replaced by 19a) ships same day
19c 375-1317 Carbon brush kit $25.41 1 (replaced by 19b) usually ships 5-16 days
20 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 1 ships same day
21 175-2979 Vacuum exhaust muffler $31.35 1 ships same day
22 997-2000 Hose clamp $2.37 1 ships same day
23 175-7795 Cable tie $3.85 1 ships same day
