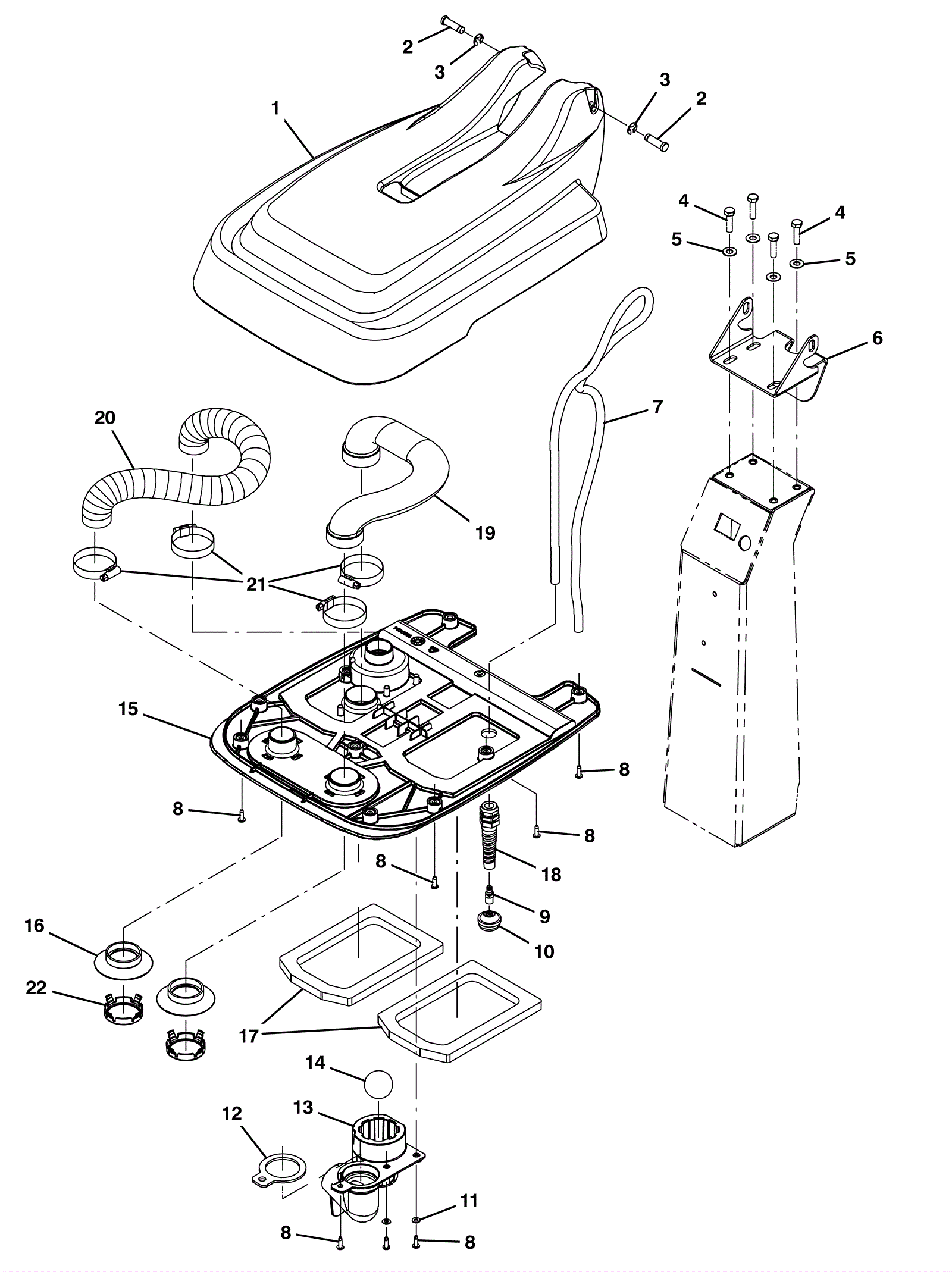

STRIVE COMPACT Tank Cover Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-1318 Upper tank cover $75.24 usually ships 1-5 days
2 275-2380 Clevis pin $7.48 usually ships 5-16 days
3 175-0814 Retaining ring (Tennant Industrial) $3.51 usually ships 5-16 days
4 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel $2.62 ships same day
5 999-0024 Washer 5/16 flat stainless steel $1.34 ships same day
6 275-2381 Pivot bracket $59.51 usually ships 5-16 days
7 275-9180 Solution hose 1/4 x 56 inch $32.01 usually ships 5-16 days
8 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel $1.54 ships same day
9 275-2382 Fitting $11.11 ships same day
10 275-9131 Screen filter $12.32 ships same day
11 999-0393 Washer 3/16 flat aluminum $0.99 ships same day
12 275-2397 Gasket $4.29 usually ships 5-16 days
13 275-9128 Float cage $11.00 usually ships 5-16 days
14 275-9129 Float ball $38.61 usually ships 5-16 days
15 275-2398 Tank cover $325.16 usually ships 5-16 days
16 275-2383 Seal $5.28 ships same day
17 275-9123 Recovery lid gasket $41.36 ships same day
18 175-5502 Strain relief $13.75 ships same day
19 275-2384 Recovery hose $59.84 ships same day
20 275-9120 Vacuum hose $17.38 ships same day
21 175-2057 Hose clamp $5.61 usually ships 1-5 days
22 275-6390 Seal retaining clip $3.30 ships same day
