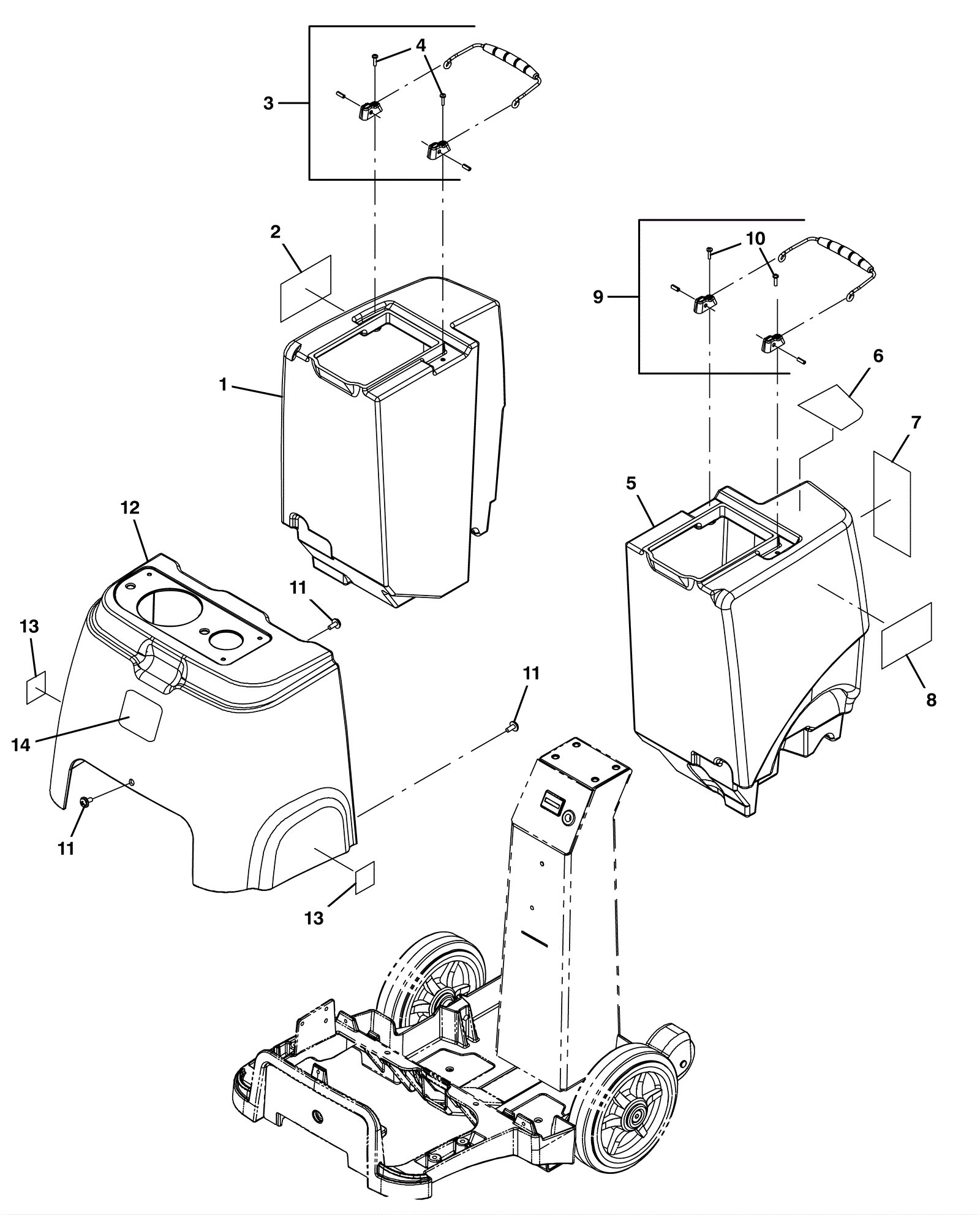

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
475-2386
|
TANK KIT, RECVY W/ LABELS [NOBLES 5 GAL] |
1 |
(SN 30000000-30072198) (includes 2-4) |
|
1b |
375-1694
|
Recovery tank kit with decals (gray) |
1 |
(SN 30072199-40000000) (includes 2-4) |
|
2 |
475-0880
|
LABEL, MODEL [NOBLES STRIVE COMPACT] |
1 |
|
|
3 |
275-2374
|
Tank handle kit |
1 |
(includes 4) |
|
4 |
999-9113
|
Screw M4-.7 x 16mm pan head phillips stainless steel |
2 |
|
|
5a |
475-2235
|
TANK KIT, SOLTN W/ LABELS [NOBLES 5 GAL] |
1 |
(includes 6-10) |
|
5b |
475-2688
|
TANK KIT, SOLTN W/LABELS [NOB GRAY 5GAL] |
1 |
(includes 6-10) |
|
6 |
275-2376
|
Solution tank decal |
1 |
|
|
7 |
275-9179
|
Instruction decal |
1 |
|
|
8 |
475-0880
|
LABEL, MODEL [NOBLES STRIVE COMPACT] |
1 |
|
|
9 |
275-2374
|
Tank handle kit |
1 |
(includes 10) |
|
10 |
999-9113
|
Screw M4-.7 x 16mm pan head phillips stainless steel |
2 |
|
|
11 |
999-1084
|
Screw M6-1 x 16mm truss head slotted stainless steel |
3 |
|
|
12 |
475-2114
|
SHROUD KIT, W/ LABELS [NOBLES 5 GAL] |
1 |
(includes 13-14) |
|
13 |
175-1238
|
Moving parts decal |
2 |
|
|
14 |
275-6172
|
Front decal (Nobles) |
1 |
|
|
