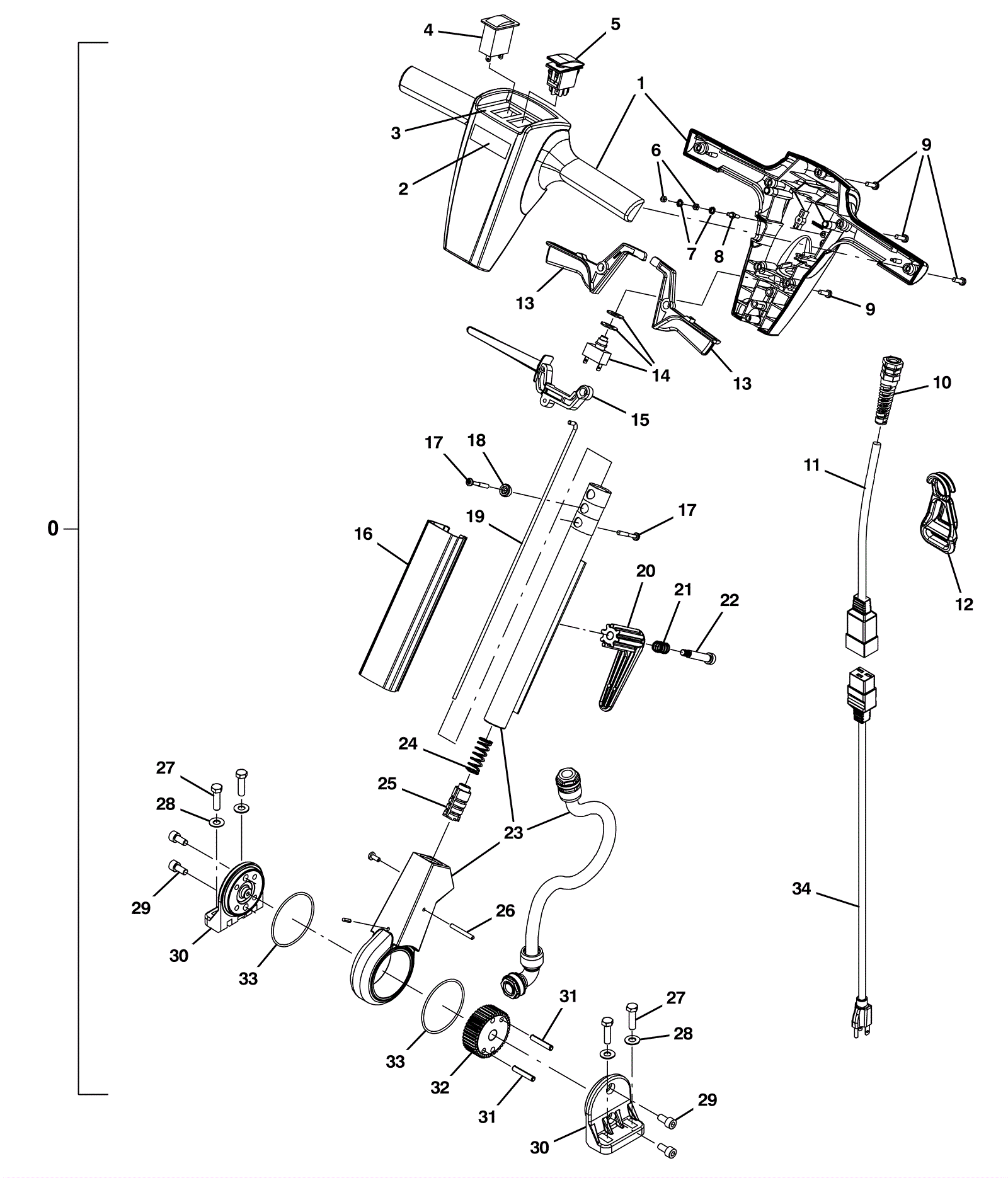

STRIVE COMPACT Handle Assembly

#PartDescriptionPriceReqNotesAvailability
0 475-2757 HANDLE, NOBLES STRIVE COMPACT $1,026.08 1 (includes 1-33) usually ships 10-16 days
1 475-2002 COVER KIT, HANDLE FRONT/REAR [NOBLES SC] $139.26 1 (includes 2-3) usually ships 10-16 days
2 375-1326 Handle decal $4.49 1 usually ships 1-5 days
3 275-9163 Operational decal $5.50 1 usually ships 10-16 days
4 275-9165 120V ammeter gauge $98.89 1 usually ships 10-16 days
5 175-4822 Rocker switch $41.69 1 usually ships 10-16 days
6 999-0869 Nut M4-.7 hex coarse thread plain finish $0.99 2 ships same day
7 999-0148 Washer #6 external star lock zinc plated $0.99 2 ships same day
8 275-2313 Screw M4-.7 x 12mm hex head double threaded $1.85 1 usually ships 10-16 days
9 175-7660 Screw #10-14 x .675 shoulder self-tapping $3.04 7 ships same day
10 175-0001 Strain relief $12.65 1 ships same day
11 275-9149 14/3 pigtail cord 16 inch $23.21 1 usually ships 10-16 days
12 275-2340 Clip (OBSOLETE) $6.93 1 usually ships 10-16 days
13 275-9132 Switch lever $10.34 2 ships same day
14 175-6400 Push button switch kit $31.79 1 usually ships 10-16 days
15 275-2310 Handle adjustment lever $8.47 1 usually ships 10-16 days
16 275-2341 Handle cover $10.34 1 usually ships 10-16 days
17 275-4694 Screw #10-14 x 1 1/2 shoulder self-tapping $3.04 2 usually ships 10-16 days
18 275-2308 Flanged bushing $4.88 1 usually ships 10-16 days
19 275-2342 Release rod $5.28 1 usually ships 10-16 days
20 175-5503 Quick release cord hook $7.70 1 ships same day
21 175-5504 Spring $4.88 1 usually ships 10-16 days
22 175-1719 Shoulder bolt $5.50 1 usually ships 10-16 days
23 275-2343 Handle tube assembly with wire harness $142.78 1 usually ships 10-16 days
24 275-2322 Spring $3.04 1 usually ships 10-16 days
25 275-2319 Plunger kit $66.66 1 usually ships 10-16 days
26 275-2325 Roll pin $1.85 1 usually ships 10-16 days
27 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel $2.62 4 ships same day
28 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
29 999-0802 Screw M8-1.25 x 16mm socket head $0.99 4 ships same day
30 275-2314 Handle pivot $40.70 2 usually ships 10-16 days
31 275-2316 Roll pin $1.85 2 usually ships 10-16 days
32 275-2317 Locking gear $121.88 1 usually ships 10-16 days
33 175-3967 Seal $5.50 2 ships same day
34 275-9119 14/3 extension cord 50 foot $201.63 1 ships same day
