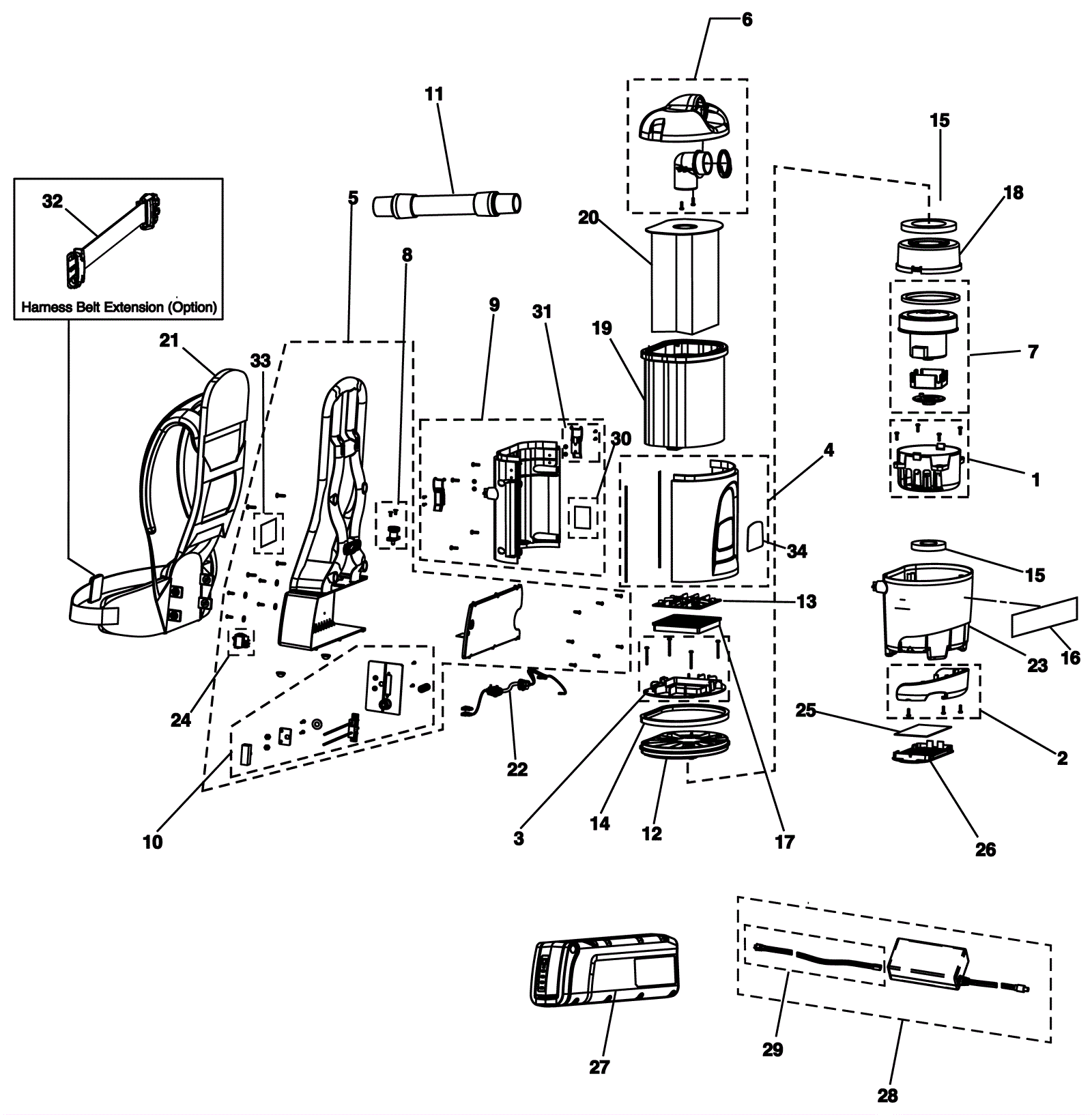

V BP 6B Entire Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-6231 Bottom motor shroud $20.02 1 usually ships 10-16 days
2 275-6242 Bumper $11.22 1 usually ships 1-5 days
3 275-6234 Filter plate $14.41 1 usually ships 1-5 days
4 275-6751 Front cover with decal (V-BP-6) $146.52 1 (includes 34) usually ships 1-5 days
5 375-1679 Backrest frame with hardware (Tennant Industrial) $164.60 1 (includes 8, 10, 24 and 33) usually ships 10-16 days
6 275-6217 Housing cover $39.49 1 usually ships 10-16 days
7 375-1680 Vacuum fan assembly (Tennant Industrial) $252.60 1 ships same day
8 375-1681 Vacuum plunger kit $66.00 1 usually ships 10-16 days
9 275-6225 Rear cover (6 quart) $64.57 1 (includes 30 and 31) usually ships 10-16 days
10 375-1682 Wall terminal kit $200.09 1 usually ships 10-16 days
11a 275-6212 Stretch vacuum hose $73.59 1 usually ships 8-21 days
11b 991-1932 Stretch vacuum hose $77.30 1 usually ships 30-40 days
12 275-6236 Motor cover $15.51 1 usually ships 1-5 days
13 275-6230 Filter frame $7.59 1 usually ships 1-5 days
14 275-6235 Seal $9.90 1 usually ships 1-5 days
15 275-6232 Motor gasket kit $18.92 1 usually ships 10-16 days
16 275-6757 TRUE-HEPA decal $7.81 1 usually ships 1-5 days
17 275-6211 HEPA filter $32.34 1 ships same day
18 275-6239 Top motor shroud $13.20 1 usually ships 10-16 days
19 275-6209 Cloth vacuum bag (6 quart) $30.91 1 ships same day
20a 275-6207 6 quart paper vacuum bag (pkg of 12) $24.86 1 ships same day
20b 275-6208 6 quart case of paper vacuum bags (16 pkgs of 12) $352.77 1 ships same day
21 275-6748 Backpack harness (Deuter) $411.51 1 usually ships 10-16 days
22 375-1683 Vacuum harness (Tennant Industrial) $61.60 1 usually ships 10-16 days
23 375-1684 Motor cover kit with label (Tennant Industrial) $168.53 1 usually ships 10-16 days
24 375-1685 Rocker switch dpst $30.25 1 usually ships 10-16 days
25 275-6210 Exhaust filter (pkg of 6) $30.36 1 ships same day
26 275-6243 Filter frame $10.34 1 usually ships 1-5 days
27 375-4673 36V battery $1,933.80 1 (includes 29) usually ships 10-16 days
28 375-1686 36V battery charger $491.26 1 usually ships 10-16 days
29 375-1687 Vacuum charger cord $55.77 1 usually ships 10-16 days
30 375-1688 Warning decal (Tennant Industrial) $31.51 1 usually ships 10-16 days
31 275-6219 Latch $49.50 1 usually ships 10-16 days
32 375-3948 Harness extension belt $173.03 1 usually ships 10-16 days
33 375-1689 Attention battery installation decal (Tennant Industrial) $21.34 1 (DCVAC) usually ships 10-16 days
34 275-6753 Tennant decal $27.83 1 usually ships 1-5 days
